Channel Vision iBus A0316 Instructions Manual

Wall-dock for distributed audio with rs-232 control
Hide thumbs Also See for iBus A0316:

Advertisement

Quick Links

Download this manual
A0316
iBus Wall-Dock for Distributed Audio
with RS-232 Control
TM
By
1
2
https://manual-hub.com/

Advertisement

loading
Need help?

Need help?

Do you have a question about the iBus A0316 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Channel Vision iBus A0316

Summary of Contents for Channel Vision iBus A0316

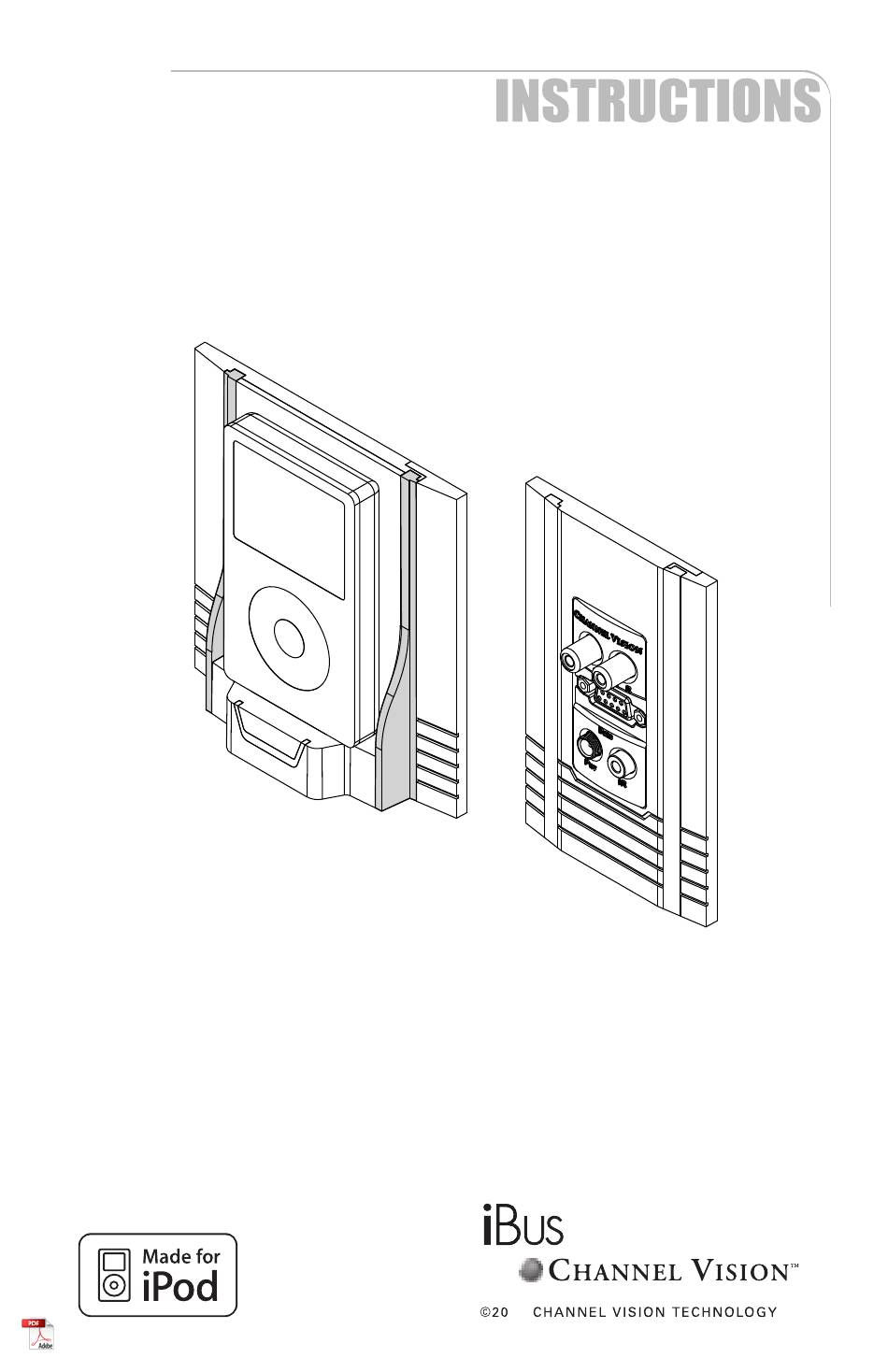

  • Page 1 A0316 iBus Wall-Dock for Distributed Audio with RS-232 Control https://manual-hub.com/...
  • Page 2 The A0316 is an on-wall iPod docking station that supports RS-232 and ® IR control. The dock connector slides in and out to adjust for any iPod and the non-skid pad helps to hold the music player in place. It’s elegant and contemporary design make the A0316 perfect for anyone who wants to enjoy their music without defacing their wall.
  • Page 3 Output Wall Plate Front Back Audio Outputs Connect to your RJ-45 & 110 amplifier. Connectors Receive signals Serial Connector from the wall dock RS-232 interface via Category 5 or provides advanced Category 6 cable. control and feedback. IR Input Connect an IR receiver and use the A0505 remote to control your iPod.
  • Page 4 Basic Application A0316 Wall Dock Rear Front HDTV Plasma with speakers TV or Video Display Video Output CAT5 cable up to 350ft. A0505 Whole-House Audio System Remote Control The built-in IR receiver allows the A0316 to be controlled directly by the A0505.
  • Page 5 + R - - L + + R - - L + + R - - L + + R - - L + To prevent fire or shock hazard do not expose this unit to Channel Vision A4623 rain or moisture. FUSE CAUTION...
  • Page 6 Installing the Wall Dock Your A0316 Wall Dock comes mostly assembled for safer travel. Disassemble to the point of removing the front cover and then install following the steps below. Installation Steps 1. Connect all wiring. 2. Attach main chassis to j-box using the provided four 6-32 screws.
  • Page 7 Installing the Wall Dock In some installations it may be desirable to mount a single gang control keypad next to the A0316. To accomplish this, the single gang trim plate can be installed next to the A0316 in a 3-gang junction box. Follow the steps below: Installation Steps 1.
  • Page 8 Docking the iPod The dock platform can slide up to hide the dock connector when the system is not in use. Make sure the dock platform is in the down position so the dock connector is exposed (as shown here). The sliding dock lever beneath the dock adjusts the position of the dock connector to create a perfect fit for all compatible iPods (see page 3 for a list of compatible iPods).
  • Page 9 Using the A0505 Remote Control The buttons above the iBus label on the A0505 remote control will mimic the functions on the iPod wheel. H A N N E L I S I O N POWER MODEL A0505 The volume, mute, power, and source buttons on the A0505 are designed to control Channel Vision’s whole-house audio systems such as ZONE...
  • Page 10 A0316 Serial Protocol RS-232 Control Code: For more complex installations, the A0316 supports RS-232 making it well suited for use with automation systems. Baud Rate: 57600, 8N1 (8-Bit Data, No Parity, 1 Stop Bit) The checksum is calculated by adding the bytes together as signed 8-bit values, discarding any signed 8-bit overflow, and then negating the sum to create the signed 8-bit checksum byte.
  • Page 11 A0316 Serial Protocol Note: The gray sections in the following tables denote responses from the iPod or iPod dock. The Special Lingo contains special messages and errors indications to provide useful status information. Com ID Notification Messages ASCII Message Hex Message ACK of command received &...
  • Page 12 A0316 Serial Protocol Com ID Function/Question ASCII Command Hex Command Context Button Status, Play/Pause A3611[cs] 0x00 41 33 36 31 31 F4 Context Button Status, Next Track A3612[cs] 0x00 41 33 36 31 32 F3 A3613[cs] Context Button Status, Prev Track 0x00 41 33 36 31 33 F2 Context Button Status, Stop...
  • Page 13 A0316 Serial Protocol The Macro commands listed below simplify a multi-step process into a single command. They work as shortcuts to make programming easier. Com ID Function/Question ASCII Command Hex Command A361E[cs] 41 33 36 31 45 E0 Get Play Status 0x001C 4-bytes, track length mS Return Play Status...
  • Page 14 A0316 Serial Protocol Com ID ASCII Command Hex Command Function/Question Play Current Selection A365K 1 2 3 4 [cs] 41 33 36 35 4B 1 2 3 4 [cs] 0x0028 Play Control A362L 1 [cs] 41 33 36 32 4C 1 [cs] 0x0029 01 - Toggle Play/Pause, 02 - Stop, 03 - Next Track, 04 - Prev Track,...
  • Page 15 A0316 Serial Protocol Example: The following example describes how to query the iPod database. There are several database categories that can be queried. Category (HEX Number) Playlist (01) Artists (02) Albums (03) Genres (04) Tracks (05) All numbers are HEX values. 41 33 36 Note: commands begin with ASCII A36, which converts to HEX: The database must be reset prior to a query.
  • Page 16 A0316 Serial Protocol Obtaining Artwork All numbers are HEX values. Note: commands begin with ASCII A36, which converts to HEX: 41, 33, 36 nn is used as a place holder for unknown bytes shown in the example below. Use Get Artwork Formats: Checksum Command Length...
  • Page 17 A0316 Serial Protocol Obtaining Artwork (continued) The iPod will Ret Track Artwork Times. For example: nn, 04, 00, 2B, nn, nn, nn, nn, [cs], 0D, 0A Checksum Time offset (msec) from start of track where the artwork is located. Note: There maybe multiple times returned if there are multiple pieces of artwork for a specific format ID.
  • Page 18 6) If you are experiencing problems with your iPod that occur even when it is not docked in the A0316, then please contact Apple customer service for support. 7) If you need additional help troubleshooting the A0316 please contact Channel Vision technical support or check our website for more details: www.channelvision.com.
  • Page 19 Specifications: (typical @25º C) Audio Output Output Level: 0.9 Vrms (may vary with iPod model) THD + Noise: <0.2%, 20Hz-20kHz Signal/Noise: >-96dB Frequency Response: 20Hz-20kHz +/- 0.3dB Output Impedance: 600 Ohms Power Requirements: 15VDC @ 0.500A (500mA) Power Supply: 15VDC @ 800mA Wire type: 4-pair, UTP Category 5, 5e or 6 Recommended Max.
  • Page 20 This warranty does not cover damages in shipment, failures caused by other products not supplied by Channel Vision Technology, or failures due to accident, misuse, abuse, or alteration of the equipment. This warranty is extended only to the original purchaser, and a purchase receipt, invoice, or other proof of original purchase date will be required before warranty repairs are provided.
