Page 1: Table Of Contents
GDB640SK English Operating Instructions Contents Operating Instructions,1 Warnings,2 Description of the appliance,3 Installation,4 Start-up and use,8 Precautions and tips,8 Maintenance and care,9 Troubleshooting,9 Product Guarantee and Repair Information,10... -
Page 2: Warnings
Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been... -
Page 3: Description Of The Appliance

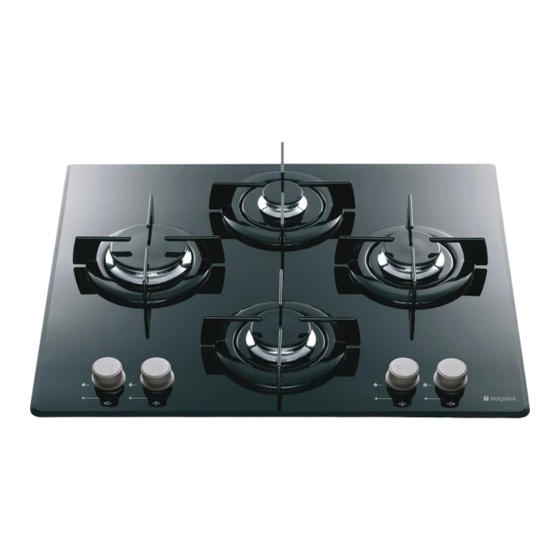

Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS 3. Control Knobs for GAS BURNERS 4. Ignition for GAS BURNERS 5. SAFETY DEVICES • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with. -
Page 4: Installation
Installation Fitting the appliance The following precautions must be taken when installing the hob: • Kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 200 mm from the edge of the hob. carefully. -
Page 5: Gas Connection
Gas connection • Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of The appliance should be connected to the main gas supply or to a gas 20 mm from the lower part of the hob. - Page 6 • Setting the burners to minimum DATA PLATE 1. Turn the tap to the low flame position; Electrical 2. Remove the knob and adjust the adjustment screw, which is positioned see data plate connections in or next to the tap pin, until the flame is small but steady. 3.
-
Page 7: Burner And Nozzle Specifications
Gas section Electric section Model Class Rated power (kW) Voltage and frequency Power (W) GDB640SK II2H3+ 7,30 (531 g/h - G30) (521 g/h - G31) 220-240V~ 50/60Hz The values in g/h refer to the capacities with liquid gas (Butane, Propane). GDB640SK... -
Page 8: Start-Up And Use,8
Start-up and use • The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is ! The position of the corresponding gas burner is shown on every knob. extremely dangerous to leave the appliance exposed to rain and storms. -
Page 9: Maintenance And Care
Maintenance and care Troubleshooting Switching the appliance off It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, Disconnect your appliance from the electricity supply before carrying out check to see that there are no interruptions in the gas and electrical supplies, any work on it. -
Page 10: Product Guarantee And Repair Information
12 Months Parts and Labour Guarantee As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down Your appliance has benefit of our manufacturer’s guarantee, which covers customer costs and minimise material wastage. - Page 12 195129109.02 03/2015 - XEROX FABRIANO Indesit Company S.p.A. Viale Aristide Merloni,47 60044 Fabriano (AN) www.hotpoint.co.uk...
