English
Operating Instructions
HOB
Contents
Operating Instructions,1
Warnings,2
Assistance,4
Description of the appliance,5
Installation,6
Start-up and use,11
Precautions and tips,11
Maintenance and care,12
Troubleshooting,12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hotpoint 7HPC 640 T GH /HA
Summary of Contents for Hotpoint 7HPC 640 T GH /HA
- Page 1 7HPC 640 T GH /HA 7HPC 640 T R/HA 7HPC 640 T X /HA 7HPC 640 /HA 7HPC 640 X /HA 7HPC 631 X /HA 7HPC 640 GH /HA 7HPC 640 N /HA 7HPC 640 N GH /HA 7HPC 640 N X /HA...
- Page 2 The appliance is not intended to be operated by means of an external timer or separate remote control system. Warnings CAUTION: the use of inappropriate hob WARNING: The appliance and its guards can cause accidents. accessible parts become hot during use. Care should be taken to avoid touching years of age shall be kept away unless continuously supervised.
- Page 4 Assistance Communicating: • appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging.
-
Page 5: Description Of The Appliance

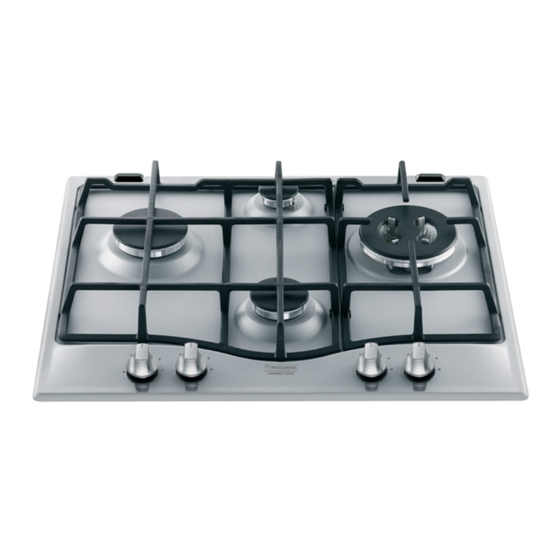

Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS Control Knobs for GAS BURNERS 4. Ignition for GAS BURNERS 5. SAFETY DEVICES • • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with. -
Page 6: Installation
Installation the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level ! Before operating your new appliance please read this (cellars, etc.). - Page 7 555 mm Electrical connection Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and Hook fastening diagram frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover.
- Page 8 use. If this is not the case, follow the instructions indicated in the paragraph “Adapting to different types of gas.” When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations. ! Check that the pressure of the gas supply is consistent with the This will ensure the safe operation and longevity of your •...
- Page 9 DATA PLATE Electrical see data plate connections This appliance conforms to the following European Economic Community directives: - 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments.
- Page 10 *** Butane P.C.S. = 49.47 MJ/Kg Natural P.C.S. = 37.78 MJ/m³ Ø145 7HPC 640 /HA 7HPC 640 T GH /HA 7HPC 631 /HA 7HPC 631 X/HA 7HPC 640 X/HA 7HPC 640 T R /HA 7HPC 640 GH/HA 7HPC 640 T X /HA...
-
Page 11: Start-Up And Use
Start-up and use Precautions and tips ! The position of the corresponding gas burner or electric ! This appliance has been designed and manufactured in compliance with international safety standards. The hotplate* is shown on every knob. following warnings are provided for safety reasons and Gas burners must be read carefully. -
Page 12: Troubleshooting
• Do not let children play with the appliance. Troubleshooting • The appliance is not intended to be operated by It may happen that the appliance does not function properly control system. or at all. Before calling the service centre for assistance, check if anything can be done. - Page 13 600mm min.
- Page 14 555 mm H=20mm H=30mm H=40mm...
- Page 16 ЗАВОДСКАЯ ТАБЛИЧКА Электропитание см. заводскую табличку Данное изделие соответствует следующим Директивам Европейского Сообщества: 2006/95/CEE от 12/12/06 (Низкое напряжение) с последующими изменениями - 2004/108/СЕЕ от 15/12/04 (Электромагнитная совместимость) с последующими изменениями - 93/68/СЕЕ от 22/07/93 с последующими изменениями. - 2009/142/СЕЕ от 30/11/09 (Газ) с...
- Page 17 Т а = 37,78 МД / Ø145 7HPC 631 /HA 7HPC 640 /HA 7HPC 640 T GH /HA 7HPC 631 X/HA 7HPC 640 X/HA 7HPC 640 T R /HA 7HPC 640 GH/HA 7HPC 640 T X /HA 7HPC 640N /HA...
- Page 18 К а ø Д а а 24 – 26 Б а (Б а )(R) Б а а а (RR) 24 – 26 С 16 – 20 Ма а (А) 10 – 14 24 – 26 Тройная (ТС)
- Page 20 195114025.01 10/2013 - XEROX FABRIANO...
