Instructions for Installation and Use

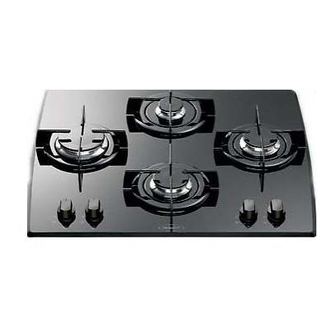

Gas Hob
Models GD74, GD74 CH,GD64, GF740, GE740TCX
To the Installer
Before installation fill in the product details on the back cover of this book.
The information can be found on the rating plate.
To the User
You must read the instructions prior to installing and using the appliance and
then retain them for future reference.
Advertisement
Table of Contents
Related Manuals for Hotpoint GD64
Summary of Contents for Hotpoint GD64
-
Page 1: Gas Hob
Instructions for Installation and Use Gas Hob Models GD74, GD74 CH,GD64, GF740, GE740TCX To the Installer Before installation fill in the product details on the back cover of this book. The information can be found on the rating plate. To the User You must read the instructions prior to installing and using the appliance and then retain them for future reference. -
Page 2: Table Of Contents
Electrical Connection Characteristics of Burners and Nozzels After Sales Service Hotpoint Guarantee Key Contacts Retention of this Instruction Book This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use of the appliance. -
Page 3: Introduction
Your new hob is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance has been installed in accordance with the installation instructions detailed in this booklet. To help make best use of your cooking equipment, please read this booklet carefully. The hob is designed specifically for domestic use and responsibility will not be accepted for use in any other installation. -
Page 4: For Your Safety
When used properly your appliance is completely safe but as with any electrical product there are certain PLEASE READ THE BELOW PRECAUTIONS BEFORE USING YOUR APPLIANCE. To maintain the efficiency and safety of this appliance, we recommend you do the following: - only call the Service Centres authorised by the manufacturer. -
Page 5: Know Your Hob
Model GD74, GD74 CH Model GD64 B. Pan Support for Cookware C. Control Knobs for Gas Burners D. Ignitor for Gas Burners F. Flame Failure Device - Activates if the flame accidentally goes out (spills, drafts, etc.), interrupting the delivery of gas to the burner. -
Page 6: Practical Advice
Practical Advise on Using the Burners For best performance, follow these general guidelines: • Use the appropriate cookware for each burner (see table) in order to prevent the flame from reaching the sides of the pot or pan; • Alwasy use cookware with a flat bottom and keep the lid on;... -
Page 7: Troubleshooting
• The support grids have not been inverted. If, despite all of these checks, the hob does not function properly and problem persists, call Hotpoint Service (see KEY CONTACTS, back page), informing them of: - The type of problem. - The abbreviation used to identify the model (Mod..) as indicated on the warranty. -
Page 8: Installation
The following instructions are intended for the installer so that the installation and maintenance procedures may be followed in the most professional and expert manner possible. Important: Disconnect the appliance from the electrical supply before performing any maintenance or repair. Positioning the Hob Important: this unit may be installed and used only in permanently ventilated rooms in accordance with British... - Page 9 Before fastening the hob in place, position the seal (supplied) along the perimeter of the worktop, as shown in the figure. Clamps are provided to fasten the hob to counters measuring from 20 to 40 mm in thickness. To fasten the hob securely, it is recommended that all the clamps be used.
- Page 10 On completing the operation, replace the old rating label with the one showing the new type of gas; the sticker is available from Hotpoint Service (see KEY CONTACTS, back page). If the gas pressure is different than that prescribed, a pressure regulator must be installed at the source, in compliance with national standards governing the use of piped gas regulators.
-
Page 11: Electrical Connection
Electrical connection WARNING: THIS APPLIANCE MUST BE EARTHED. The hob is designed to work with alternating current, the supply voltage and frequency indicated on the rating plate (situated under the hob). Make sure that the local supply voltage corresponds to the voltage indicated on the rating plate. -
Page 12: Characteristic Of The Burners And Nozzles
Characteristic of the burners and nozzles Table 1 Burner Diameter Thermal Power (mm) kW (p.c.s.*) Nom. Rapid Fast 3.00 (Large) (R) (Large) (R) Reduced Fast Reduced 2.60 Rapid (RR) (RR) Semi Rapid Semi Fast 1.65 (Medium) (S) (Medium) (S) Auxiliary 1.00 (Small) (A) Triple Crown... - Page 13 Notes...
-
Page 14: After Sales Service
Hotpoint appliance than us - the manufacturer" As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts and labour guarantee for the first 12 months. In addition to this you also have the advantage of free replacement parts for the first 5 years when fitted by a Hotpoint engineer. -
Page 15: Recycling & Disposal Information
All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free replacement parts for the first 5 years (except microwaves, selected integrated appliances and cooker hoods, which have a one year guarantee) provided that they are fitted by a Hotpoint engineer. -
Page 16: After Sales Service
Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in (Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays) Note: Our operators will require the following information: Indesit Company UK Ltd.
