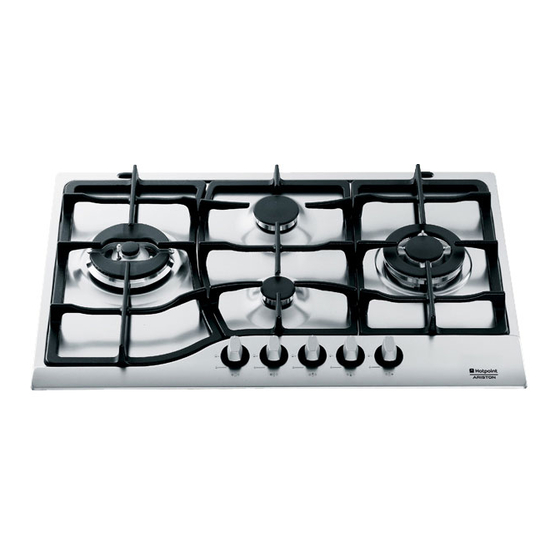

Hotpoint GA 750 X Operating Instructions Manual
Hotpoint hob operating instructions
Hide thumbs
Also See for GA 750 X:
- Operating instructions manual (16 pages) ,
- Operating instructions manual (16 pages)
Table of Contents
Advertisement
Quick Links
Operating Instructions
GB
English,1
GA 750 X
GX 751 R T X
GA 750 T X
GA 640.1 R X
GA 641 X
GA 761 R F X
GX 641 R X
GA 630 R T X
GB 750 X
GB 640.1 R X
GB 641 X
GB 630 R T X
Contents
Installation, 2-7
Burner and nozzle specifications
Start-up and use, 10-11
Troubleshooting, 14
Repair Service and Information Desk
Extended Warranties
Genuine Parts and Accessories
Guarantee, 16
HOB
GB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hotpoint GA 750 X
Summary of Contents for Hotpoint GA 750 X
-
Page 1: Table Of Contents
Start-up and use, 10-11 Practical advice on using the burners Precautions and tips, 12 General safety Disposal GA 750 X Recycling & Disposal Information GX 751 R T X GA 750 T X Maintenance and care, 13 GA 640.1 R X... -
Page 2: Positioning
Installation ! Before operating your new appliance please read this • Liquid petroleum gas sinks to the floor as it is heavier instruction booklet carefully. It contains important than air. Therefore, rooms containing LPG cylinders information for safe use, installation and care of the must also be equipped with vents to allow gas to appliance. -
Page 3: Gas Connection
! Check that the pressure of the gas supply is consistent Front with the values indicated in Table 1 (“Burner and nozzle specifications”). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption. Connection with a rigid pipe (copper or steel) ! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance. - Page 4 2. unscrew the burers with a 7 mm wrench spanner. The internal burner has a nozzle, the external burner has two (of the same size). Replace the nozzle with models suited to the new type of gas (see table 1). 3.
-
Page 5: 2 Nozzle
Burner and nozzle specifications (for 60 cm and 65 cm versions only) Table 1 Liquid Gas Natural Gas Burner Diameter Thermal Thermal By-pass Nozzle Flow* Thermal Nozzle Flow* power power 1/100 1/100 (g/h) power 1/100 (l/h) (p.c.s.*) (p.c.s.*) (p.c.s.*) (mm) Reduced Nominal (mm) -
Page 6: Data Plate
Burner and nozzle specifications (for 75 cm versions only) Table 1 Liquid Gas Natural Gas Burner Diameter Thermal Thermal By-pass Nozzle Flow* Thermal Nozzle Flow* power power 1/100 1/100 (g/h) power 1/100 (l/h) (p.c.s.*) (p.c.s.*) (p.c.s.*) (mm) Reduced Nominal (mm) (mm) Nominal (mm) - Page 7 GB 641 X GX 641 R X GB 640.1 R X GA 761 R F X GA 750 X GX 751 R T X GA 750 T X GB 750 X PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24...
-
Page 8: Electrical Connection
Electrical Connection ! THIS APPLIANCE MUST BE EARTHED. ! The wires in the mains lead are coloured in The hob is designed to work with alternating current, accordance with the following code: the supply voltage and frequency indicated on the Green &... -
Page 9: Description Of The Appliance
Description of the appliance Overall view GAS BURNERS Support Grid for COOKWARE Control Knobs for GAS BURNERS GAS BURNERS Support Grid for COOKWARE Control Knobs for GAS BURNERS SAFETY DEVICES * Ignition for GAS BURNERS * • GAS BURNERS differ in size and power. Use the •... -
Page 10: Start-Up And Use
Start-up and use ! The position of the corresponding gas burner or on (5 = max. power; 1 = min. power). The system electric hotplate* is shown on every knob. guarantees accurate flame adjustment and uniform cooking results by facilitating selection of the Gas cooker hobs are equipped with discrete power desired power level. -
Page 11: Practical Advice On Using The Burners
Practical advice on using the burners Practical Advice on Using the Half Fish-Kettle Burner * To ensure the burners operate efficiently: The two "Half Fish-Kettle" burners, are eliptic in form • Use appropriate cookware for each burner (see and can be turned up to 90°. This makes the cooktop table) so that the flames do not extend beyond more flexible in terms of how it can be used. -
Page 12: Precautions And Tips
As part of Hotpoint's continued commitment to helping Repairs carried out by inexperienced persons may the environment, Hotpoint reserves the right to use quality cause injury or further malfunctioning of the recycled components to keep down customer costs and appliance. -
Page 13: Maintenance And Care
Maintenance and care Switching the appliance off ! ! ! ! ! It is not necessary to remove the pan supports in order to clean the hob surface. Thanks to the Disconnect your appliance from the electricity supply support system, simply lift and hold the pan before carrying out any work on it. -
Page 14: Troubleshooting
Troubleshooting It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open. - Page 15 5 Year Parts Guarantee Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time.
-
Page 16: After Sales Service
02/2012 - 195097459.01 XEROX FABRIANO After Sales Service No one is better placed to care for your Hotpoint appliance during the course of its working life than us – the manufacturer. Essential Contact Information Hotpoint Service We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service.
