Summary of Contents for Hotpoint GF961TX
-
Page 1: Table Of Contents
GF961TX English Operating Instructions Contents Operating Instructions,1 Warnings,2 Assistance,3 Description of the appliance,4 Installation,5 Start-up and use,9 Precautions and tips,9 Maintenance and care,10 Troubleshooting,10 After Sales Service,11 Guarantee,12... -
Page 2: Warnings
Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been... -
Page 3: Assistance
Assistance Communicating: • type of trouble • appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging. -
Page 4: Description Of The Appliance

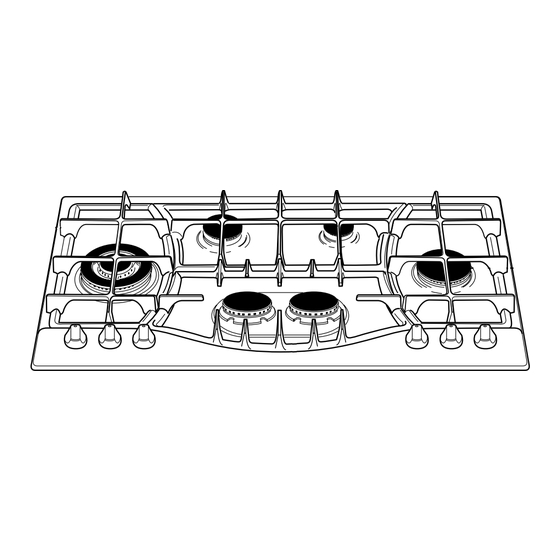

Description of the appliance Overall view 1. Support Grid for COOkWArE 2. GAs BurnErs 3. Control Knobs for GAs BurnErs 4. sEMI-FIsHBurnEr 5. Ignition for GAs BurnErs 6. sAFEty DEvICEs • Control Knobs for GAs BurnErs adjust the power or the size of the flame. -
Page 5: Installation
Installation Fitting the appliance The following precautions must be taken when installing the hob: • Kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 600 mm from the edge of the hob. carefully. -
Page 6: Gas Connection
! Once the appliance has been installed, the power supply cable and the • Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of electrical socket must be easily accessible. - Page 7 replacing the triple ring burner nozzles DATA PLATE 1. Remove the pan supports and lift the burners out of their housing. The burner consists of two separate parts (see pictures). Electrical see data plate connections 2. Unscrew the nozzles using a 7 mm socket spanner. Replace the nozzles with models that are configured for use with the new type of gas (see Table This appliance conforms to the following 1).
-
Page 8: Burner And Nozzle Specifications
P.C.S. = 49.47 MJ/Kg Natural P.C.S. = 37.78 MJ/m Type of gas Model Class Rated power (kW) GF961TX II2H3+ 11,50 (836g/h-G30 821 g/h-G31) GF961TX PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24... -
Page 9: Start-Up And Use,9
start-up and use • Make sure that the burners are cool; • Lift the burner completely out of its housing; • Replace it in its housing in the position desired; ! The position of the corresponding gas burner is shown on every knob. •... -
Page 10: Maintenance And Care
covered. • The removable parts of the burners should be washed frequently with • Always make sure the knobs are in the “●”/“○” position when the appliance warm water and soap and any burnt-on substances removed. is not in use. •... -
Page 11: After Sales Service,11
After sales service No one is better placed to care for your Hotpoint appliance during the course of its working life than us – the manufacturer. Essential Contact Information Hotpoint Service We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service. -
Page 12: Guarantee
5 Year Parts Guarantee Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time.
