Battery Status:

This function is used to check the life status of the battery.
Plug the fixture in and press the MODE button until "BATT LEV
XXX%" is displayed. "XXX" represents the current battery life.
The number that is displayed is the remaining battery life. If
"BATT LEV ----" is displayed, it means that you are running the
unit on AC power. Please do not let the battery fully die, this
severly shortens the life of the battery.
NOTE: When the battery life is below 30% the battery percent-
age will flash. At 15% power the fixture will shut off.
NOTE: When using battery power, after 20 seconds of inac-
tivity, the display will revert back to the battery life display.
Battery Recharge: To recharge the battery, plug the supplied
AC cord into the AC input on the side of the unit and plug the
other end into a matching power supply. It takes about 5 hours
to reach full charge (with the power off). The display will STOP
flashing when the unit reaches 100% charge.
Note: When unplugging the unit from charging and then
applying power via battery, there will be a minimal charge
drop.
For a faster recharge, turn the Load setting to "Off" and turn the
battery "On". See Battery Load on page 15.
ADJ Products, LLC - www.adj.com - WiFly EXR HEX5 IP User Manual Page 30
Battery Status & Charging
WiFly EXR HEX5 IP
WiFly EXR HEX5 IP
Dim m er Dim m er Dim m er Dim m er
1 0 0 1 0 0 1 0 0 % % % %
1 0 0
5 0 5 0 5 0 5 0 % % % %
1 0 1 0 1 0 1 0 % % % %
0 0 0 0
T
ris e
DMX delay
Trise(ms)
Delay mode
dr-0
dr-1
dr-2
dr-3
dr-4
ADJ Products, LLC - www.adj.com - WiFly EXR HEX5 IP User Manual Page 31

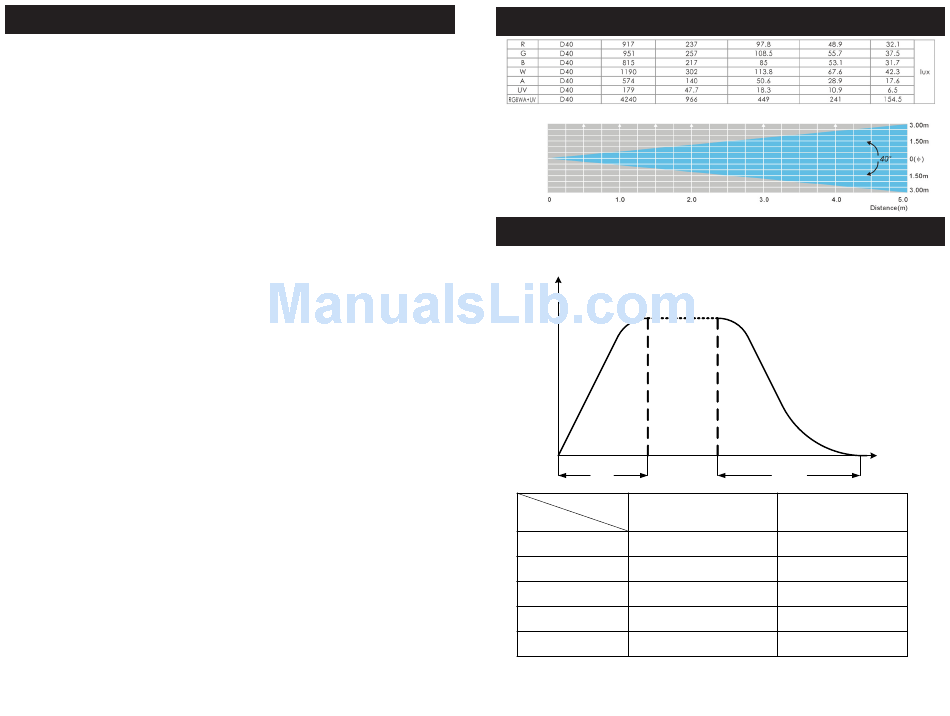

Photometric Chart

Dimmer Curve Chart
T
d o w n
Tdown(ms)
0 0
800 1300
1010 1560
1200 1950
1280 2600
t t t t
( ( ( ( m s m s m s m s ) ) ) )
