Summary of Contents for ADJ JOLT 300

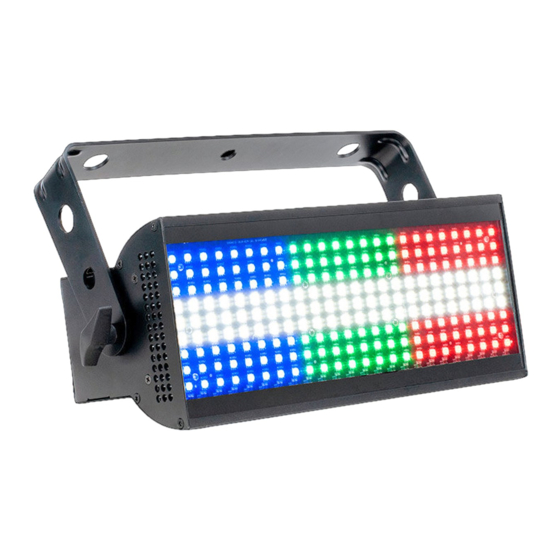

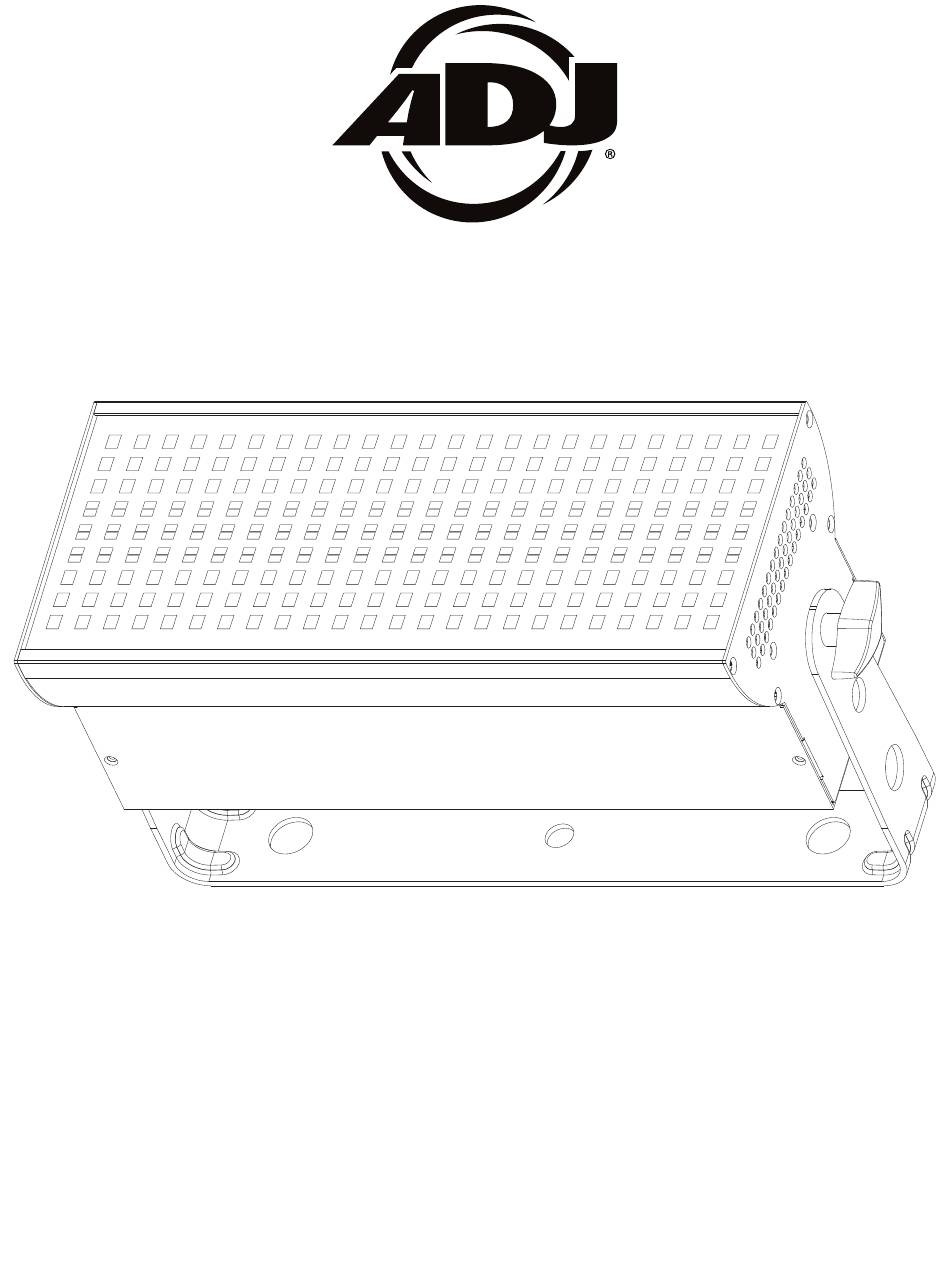

  • Page 1 JOLT 300 User Instructions...
  • Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    Color Macro Chart System Menu Pixel Zone Control Dimmer Curve Chart Dimensional Drawings Fuse Replacement I Multiple Unit Power Linking Trouble Shooting I Cleaning Limited Warranty (USA Only) Technical Specifications ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 2...

  • Page 4: Introduction

    Jolt 300 Introduction Unpacking: Thank you for purchasing the Jolt 300 by ADJ Products, LLC. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.

  • Page 5: Features I Warranty Registration

    Jolt 300 Warranty Registration The Jolt 300 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package.

  • Page 6: Safety Guidelines

    B. Objects have fallen, or liquid has been spilled into the fixture. C. The fixture does not appear to operate normally or exhibits a marked change in performance. D. The fixture has fallen and/or subjected to extreme handling. ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 5...

  • Page 7: Overview

    3. Locking Power Connector In 9. SETUP Button 4. Omega Bracket 10. UP Button 5. Locking Power Connector Out 11. DOWN Button 6. Locking 3/5-Pin XLR Connectors Out 12. Display ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 6...
  • Page 8 These installaiton should be checked by a skilled person once a year. The Jolt 300 is fully operational in three different mounting positions, hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.).

  • Page 9: Installation

    Screw one clamp via a M12 screw and nut into the Omega bracket. Insert the quick-lock fasteners of the Omega bracket’s into the respective holes on the bottom of the Jolt 300. Tighten the quick-lock fasteners fully clockwise. Pull the safety cable through the Safety Loop located on the bottom of the unit and over the trussing system or a safe fixation spot.

  • Page 10: Dmx Set Up

    Data Cable (DMX Cable) Requirements (For DMX Operation): The Jolt 300 can be controlled via DMX-512 protocol. The DMX address is set on the top rear panel of the Jolt 300. Your unit and your DMX controller require a standard 3-pin or 5-pin XLR connector for data input and data output We recommend Accu-Cable DMX cables.

  • Page 11: Dmx Addressing

    In the case of the Jolt 300, when in 4 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (5 + 4), and so on. (See the chart below for more details.)

  • Page 12: Dmx Channel Modes & Values

    RED (ZONE 3) 000-255 0-100% GREEN (ZONE 3) 000-255 0-100% BLUE (ZONE 3) 000-255 0-100% WHITE (ZONE 3) 000-255 0-100% COLOR MACROS 000-255 See pages 15-16 for Macro Chart ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 11...
  • Page 13 Open (LED’s On) 064-095 Strobing Slow-Fast Open (LED’s On) 096-127 128-159 Pulse Effect 160-191 Open (LED’s On) Random Strobing Slow-Fast 192-223 Open (LED’s On) 224-255 MASTER DIMMER 000-255 0%-100% ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 12...
  • Page 14 DIMMER DELAY TIME 0.1Sec. 0.2Sec. 0.3Sec. 0.4Sec. 0.5Sec. 0.6Sec. 0.7Sec. 0.8Sec. 0.9Sec. 1.0Sec. 1.5Sec. 2.0Sec. 3.0Sec. 4.0Sec. 5.0Sec. 6.0Sec. 7.0Sec. 8.0Sec. 9.0Sec. 10Sec. 141-255 Default to Unit Setting ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 13...
  • Page 15 160-191 192-223 Random Strobing Slow-Fast 224-255 Open (LED’s On) WHITE MASTER DIMMER 000-255 0%-100% WHITE DIMMER MODES & DELAY TIME 000-255 See RGB Dimmer Modes and Delay Times ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 14...

  • Page 16: Color Macro Chart

    Color19 73-76 Color20 77-80 Color21 81-84 Color22 85-88 Color23 89-92 Color24 93-96 Color25 97-100 Color26 101-104 Color27 105-108 Color28 109-112 Color29 113-116 Color30 117-120 Color31 121-124 Color32 125-128 ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 15...
  • Page 17 Color51 201-204 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 16...

  • Page 18: System Menu

    Use the UP and DOWN buttons to adjust the submenu. You may exit the main menu at any time without making any adjustments by pressing the MODE button. MODE SETUP DOWN ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 17...
  • Page 19 FADE: 00~16 / SPEED: 01~16 / SOUND: OF / ON Program 15 with Adjustments Program 16 FADE: 00~16 / SPEED: 01~16 / SOUND: OF / ON Program 16 with Adjustments ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 18...
  • Page 20 (1) Current Maximum Temperature - Maximum fixture temp. that has been recorded, before reset and after reset. (2) Maximum Temperature - Overall maximum fixture temp. that has been recorded. (Not Resettable). (3) DMX Value options depend on the DMX Channel mode setting. ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 19...
  • Page 21 - REST - In this submenu you are able to reset the unit to its factory (default) settings. MANUAL - This submenu is for manual control and testing. ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 20...
  • Page 22 - INFORMAT XXX (Current DMX Values) - Displays the DMX values of any DMX channel that is currently in use. NOTE: DMX value options depend on the current DMX channel mode setting. - INFORMAT VX.XX (Software Version) - Current software version is displayed. ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 21...

  • Page 23: Pixel Zone Control

    Jolt 300 Pixel Zone Control This fixture features pixel zone control. See the diagram below, which illustrates the specific pixel zone set up. DISPLAY SERVICE PORT 1 2 3 ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 22...

  • Page 24: Dimmer Curve Chart

    Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 1100 1660 Stage 2 ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 23...

  • Page 25: Dimensional Drawings

    Jolt 300 Dimensional Drawings 15.3” / 389mm 5.63” / 143.17mm 13” / 331mm ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 24...

  • Page 26: Fuse Replacement I Multiple Unit Power Linking

    3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 25...

  • Page 27: Limited Warranty (Usa Only)

    ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.

  • Page 28: Technical Specifications

    DMX Channels: 8 DMX Modes: 4/8/A10/B10/12/15/A18/B18 Warranty: 2 Year (730 days) Please Note: Specifications and improvements in the design of this unit and this manual are subject to change. ADJ Products, LLC - www.adj.com - Jolt 300 User Manual Page 27...
