INSTALLING ADVDLX9 VIDEO SYSTEM
Installing the ADVDLX9 System
1.
Make all electrical connections.
2.
Attach the ADVDLX9 unit to the mounting bracket using four M5 screws.
CAUTION: The M5 screws are supplied in three different lengths (10mm, 20mm and 40mm) to facilitate proper installation. Use extreme caution
when using these screws to avoid damage to vehicle roof or other components, wiring, etc.
CAUTION: Do not trap any wiring between the bracket and the unit.
Front
of
Vehicle

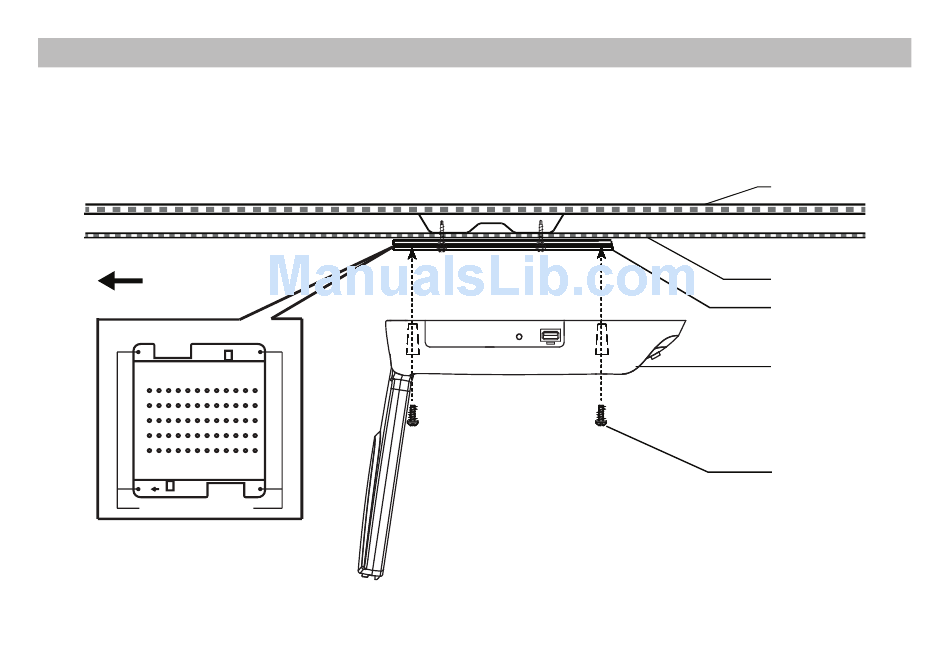

Mounting Bracket
Mounting Holes
15
Roof
Headliner
Mounting
Bracket
Video Unit
ADVDLX9
4 x M5
Screws
NOTE: Do Not over
torque/tighten M5
screws.
