Advent ADVDLX9 Installation Manual page 10

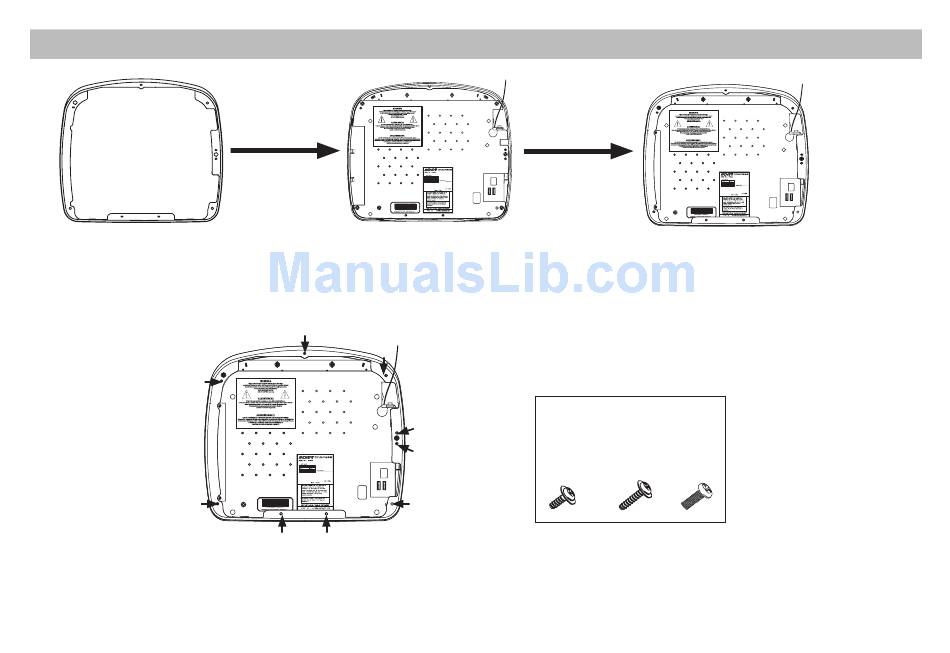

INSTALLING THE TRIM RING
4. Locate the #4 x 5/16" self-tapping screw in the hardware kit.
5. Using a screwdriver, install the #4 x 5/16" self-tapping screw into the location marked "B" shown in the figure below.
6. Locate the three (3) #4 x 7/16" self-tapping screws in the hardware kit.
7. Using a screwdriver, install the three (3) #4 x 7/16" self-tapping screws into the locations marked "C" shown in the figure below.
(D)
(C)
8. Locate the five (5) M3 x 8mm screws in the hardware kit.
9. Using a screwdriver, install the five (5) M3 x 8mm screws into the locations marked "D" shown in the figure above.
NOTE: Use caution tightening screws as the threads may strip in the DVD Player.
Trim Ring
(B)
(C)
9
(D) (D)
DVD
PLAYER
9
TRIM RING SCREW SET
(B) #4 X 5/16" SELF TAPPING SCREW
(QTY 1)
(D)
(C) #4 X 7/16" SELF TAPPING SCREW
(QTY 3)
(D)
(D) M3 X 8mm SCREW
(QTY 5)
(C)
(B)
8
9
(C) (D)
TRIM
RING
ON DVD
PLAYER
