INSTALLING THE ADVDLX9 VIDEO SYSTEM

1. Connect the 6 pin harness to the unit and make the connections to
the vehicle.
2. Connect the red and black power wires of the Power Harness to
vehicle's electrical system by tapping into an accessory hot line and
a good ground.
3. If connecting to an external source, connect the 5 Pin AV Input
Harness (112-4259 Blue Connector) to provide the AV signals input.
4. If connecting to an external source, connect the if used 5 Pin AV
Output Harness (112-4260 White Connector) to provide the AV
signals output.
5. Verify all system functions before final mounting of the finished
assembly.
A/V Source Definitions:
• DVD - Built in DVD/USB
• AV - Signal Harness (P/N 112-4259 Blue Connector) to the 3 RCA
Jack Pigtail is used for AV input.
• AUX - AUX input (P/N 112B3227) 3.5mm jack to RCA Cable
NOTE: The antenna has been designed for optimal performance.
When installing the unit, position the antenna for best reception.

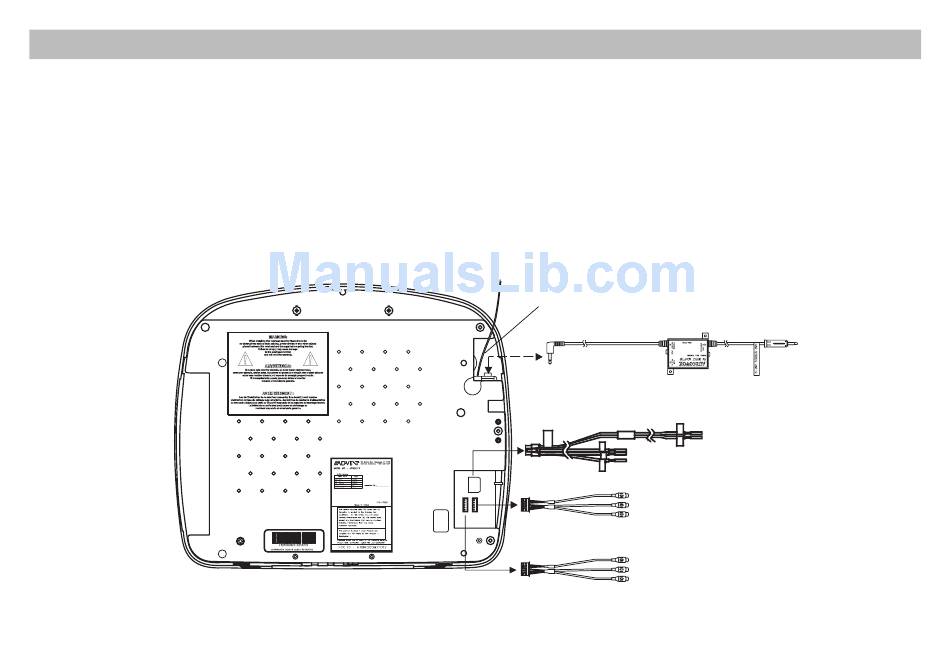

Antenna for
Wireless FM Mod.
See Antenna Note
6 Pin Power/Dome Light
Harness (P/N 112-4270)
5 Pin AV input Harness
(P/N 112-4259 Blue Connector)
5 Pin AV output Harness
(P/N 112-4260 White Connector)

WIRING DIAGRAM

14
Optional Relay Box
