AP Mesh Mode

Under the AP Mesh mode, the ENH1750EXT can be used as the central connection hub for station or clients that
support IEEE 802.11 b/g/n network. Under this mode, the ENH1750EXT can be configured with the same Mesh SSID
and security password in order to associate with other ENH1750EXTs, as well as connect with clients under the same

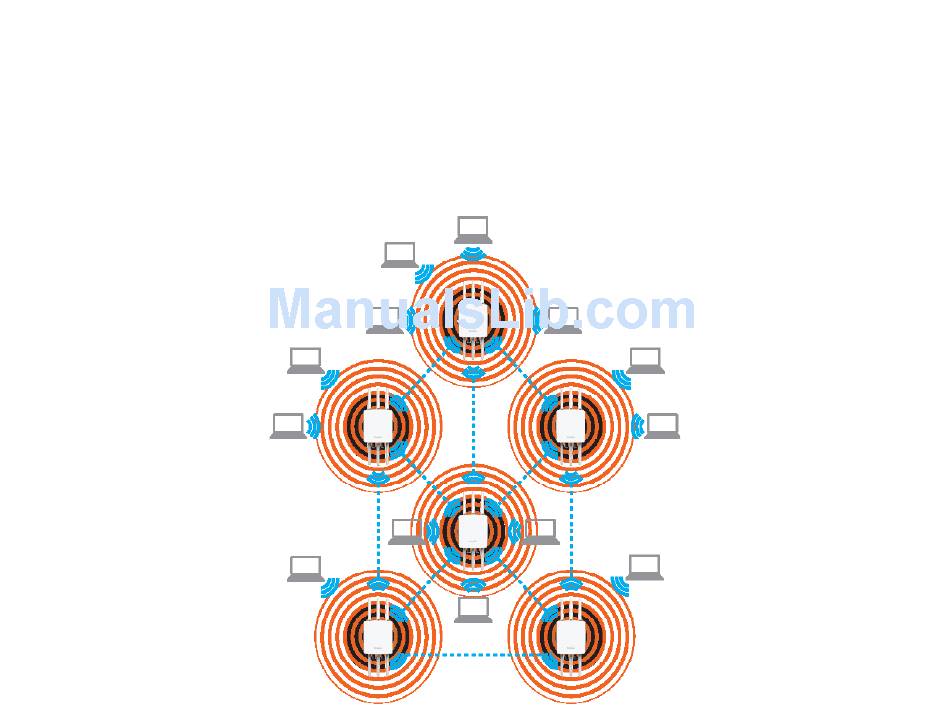

SSID and encryption signatures. For example, you would use one band to connect Access Points in range with Mesh
mode and the other band to broadcast traffic on the network.
