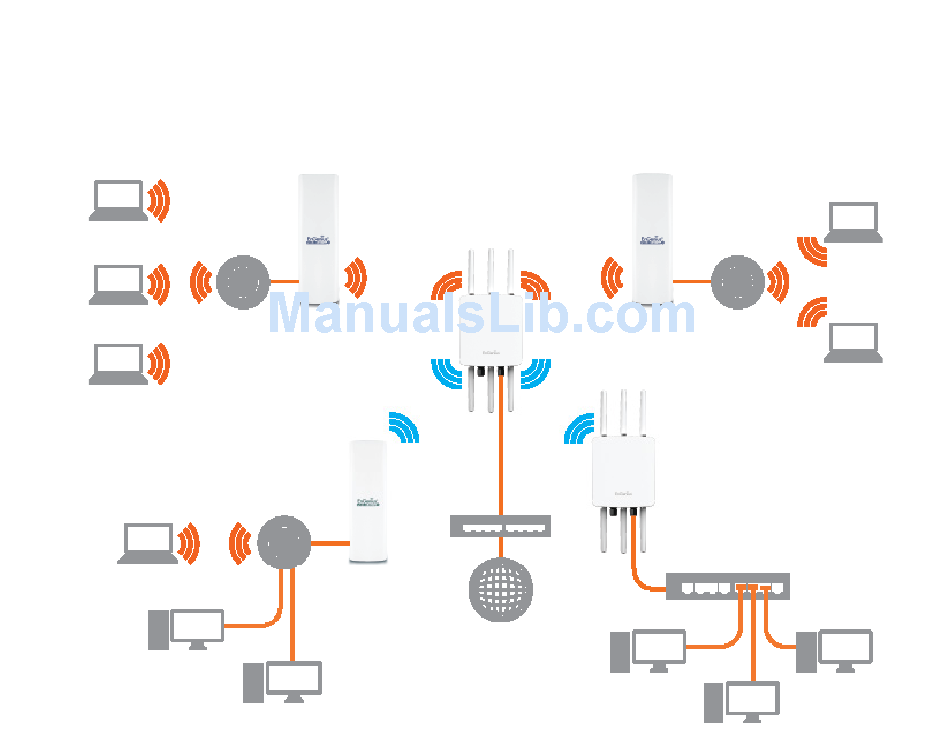

The ENH1750EXT can be used as a centralized Outdoor Access Point with which other EnGenius Wireless N 2.4 or 5 GHz
Outdoor Client Bridges can associate; leveraging the long-range capability of their internal high-gain directional antennas,
resulting in a very cost-effective solution to expand a company network over a multiple building campus.
