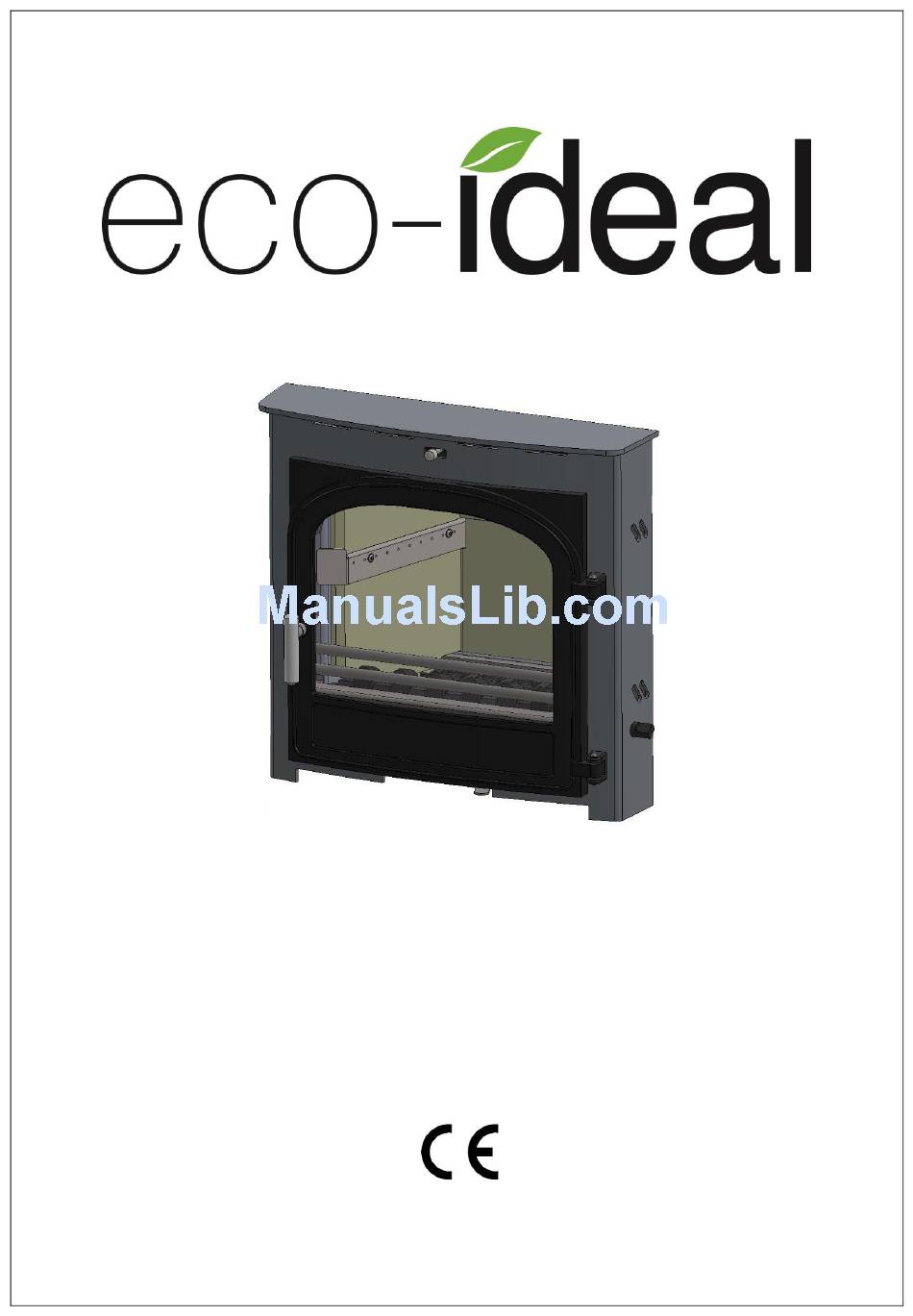

- Page 1 Eco-Ideal Inset 5 MKII Model: CVSECI05FM Instructions for: Installation/Operation/Maintenance/Servicing Approved for use in the United Kingdom and the Republic of Ireland JINECI05 Rev. E. 11/11/2014...
-
Page 2: Table Of Contents
Eco ideal Fires appliances come with a standard 2 year warranty, however this excludes naturally If this appliance is purchased through an un- wearing “consumable” components and the use of authorised stockist or an internet trader Eco-ideal un-authorised fuels. Stoves are only obliged to support the statutory requirements. -
Page 3: Important Information
It is important that your stove is correctly installed Extractor Fans and/or Cooker Hoods must not be and operated as Eco-ideal Stoves cannot accept installed in the same space or room as this can responsibility for any fault arising through cause the appliance to emit fumes into the room. - Page 4 ARBON ONOXIDE ETECTOR ROOM AS THIS APPLIANCE. Eco-ideal Stoves recommend a Carbon Monoxide Detector that conforms to the latest issue of BS EN EROSOLS 50292 is placed in the same room as the appliance. Do not use an aerosol spray on or near the stove The installation of such an alarm is not considered when it is alight.
-
Page 5: User Instructions
USER INSTRUCTIONS Please Read the ‘General Guidance’ Section at the start of these instructions before operating your stove for the first time. Allow sufficient clearance between the stove and pictures, plasma screen televisions or ornaments etc., as these could be damaged and could potentially create a fire hazard (For more information read the ‘Material Clearance’... - Page 6 ULTIFUEL RATE IGHTING THE PPLIANCE Your Eco-ideal stove is fitted with a locomotive First, load the fire with starting fuel, i.e. paper, dry sticks and/or firelighters in the mode chosen, type grate. So that de-ashing can be carried out either wood or solid mineral fuel. Light the fire at cleanly and easily, it is riddled from the outside the base leaving all air controls open.
- Page 7 de-ash before refuelling and do not let the ash level adding larger pieces of firewood. Do not add reach the underside of the grate bars. firewood above the level of the tertiary air inlets on Solid mineral fuel produces ash, which if allowed to the sides of the stove.
- Page 8 Clean Air Act requirements. The Eco-ideal Inset 5 has been recommended as suitable for use in Smoke Control Areas when burning wood logs. JINECI05 Rev. E. 11/11/2014...
-
Page 9: Technical Specification
Find out if you are in a Smoke Control Area by contacting your Local Authority. The Eco-ideal Inset 5 has been fitted with a permanent bypass that prevents closure of the secondary air slider. Removal of this will lead to the appliance potentially causing smoke emissions. Without the permanent bypass in place the appliance is not an exempt appliance and so may leave the householder liable for a fine up to £1000. -
Page 10: Pre Installation Requirments
Installation Engineer. Building Regulations Document J. Any connecting flue pipe systems must also meet these regulations. Eco-ideal Stoves cannot be held responsible for any fault arising through incorrect use or installation. JINECI05 Rev. E. 11/11/2014... -
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS that obtained following the guidance given in EGAL EQUIREMENTS Eco-ideal Stoves requests that before installation Approved Document J. and/or use of this appliance that you read these instructions carefully to ensure that all the relevant Your local Building Control Officer can advise you requirements are fully understood. - Page 12 OMPETENT ERSONS CHEME Members of the following schemes may self-certify the installation of this stove. If the installer is not a member of one of these schemes, your local Building Control Department must approve the installation. Scheme Web address Telephone APHC (Association of Plumbing and Heating Contractors (Certification) www.aphc.co.uk...
- Page 13 Remove the grate bars by lifting them away IREPLACE IMENSIONS (Fire surround and side wall shown are combustible from the cam bar and pulling forward out of and all dimensions stated are minimum) the rear grate support. The singular bars should be removed first, noting their positions (low or high), leaving the two static triangular bars in place.
- Page 14 6. Pull the Baffle forward and to the left hand 9. You can now remove the Side Riddling Bars. side, allowing the right hand edge of the Baffle to drop down into the stove, and remove. You can now remove the Upper Rear Brick. 7.
-
Page 15: Installing The Stove
12. Slide the cam to the left until the right hand 13. Remove the ash barrier by sliding out of the side is clear of the hole, then raise one side stove. and swing out through the door opening. INSTALLING THE STOVE 1. -
Page 16: Commissioning And Handover
Eco-ideal Stoves recommend that you carry out a chimney and emitted safely to atmosphere. Do not smoke draw test to check the soundness of the run the stove at full output for at least 24 hours. -
Page 17: Maintenance & Servicing
Check the 12mm rope around the door. If rope is and this can be cleaned with a soft brush. Do not becoming detached, use Eco-ideal Stoves rope glue clean whilst the stove is hot; wait until it has to reattach it. If the rope is in a poor condition, a cooled down. - Page 18 NNUAL ERVICE Eco-ideal Stoves recommend that this appliance is Please consult with your installer if you are serviced annually, preferably prior to the start of concerned in any way about the performance of the heating season, thus avoiding any delay in this appliance.
-
Page 19: Spares & Stove Care
SPARES AND STOVE CARE Single Door Assembly Single Door (HCE09008) Door Handle Assembly (HCE09ARRT043S) Rope Sealing Kit (SCPCB900SDRSK-REVC) Single Door Glass (HCE09102) Single Door Gasket (HCE09101) Glass Clip (HHR08146) Glass Clip Screw (FSJM05008SS) JINECI05 Rev. E. 11/11/2014... - Page 20 Left Hand Door Assembly Left Hand Door (TDI05008) Glass Clip (HHR08046) Glass Clip Screw (FSJM05008SS) Double Door Glass (HCE09031) Double Door Gasket (HCE09030) Door Handle Assembly Door Handle Boss (AVI05010MB) Door Handle, Stainless (AVA08020MB) Hex. Screw (FSHM08050) Rope Sealing Kit (SCPCB900DDRSK) Right Hand Door Assembly Right Hand Door (HCE09009)
- Page 21 Body Assembly Components Secondary Air Control Support Plate (HCN05050) Slider Plate (HH06086) Gasket (HH06088) Top Air Deflector Slider Shaft (HCN05016) Single Door: (HCN05ARRT023) Slider Knob (HCE06059S) Double Door: (HCN05ARRT024) Baffle (HCN05022) Upper Side Brick (HCN05073 A&B) Upper Rear Brick (HCN05072) Door Hinge: (HH06050) Hinge Pin:...
-
Page 22: Commissioning & Installation Checklist
COMMISSIONING & INSTALLATION CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:... -
Page 23: Service Records
SERVICE RECORDS Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer Engineer Signature Signature Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Servicing Company/ Engineer... - Page 24 JINECI05 Rev. E. 11/11/2014...
