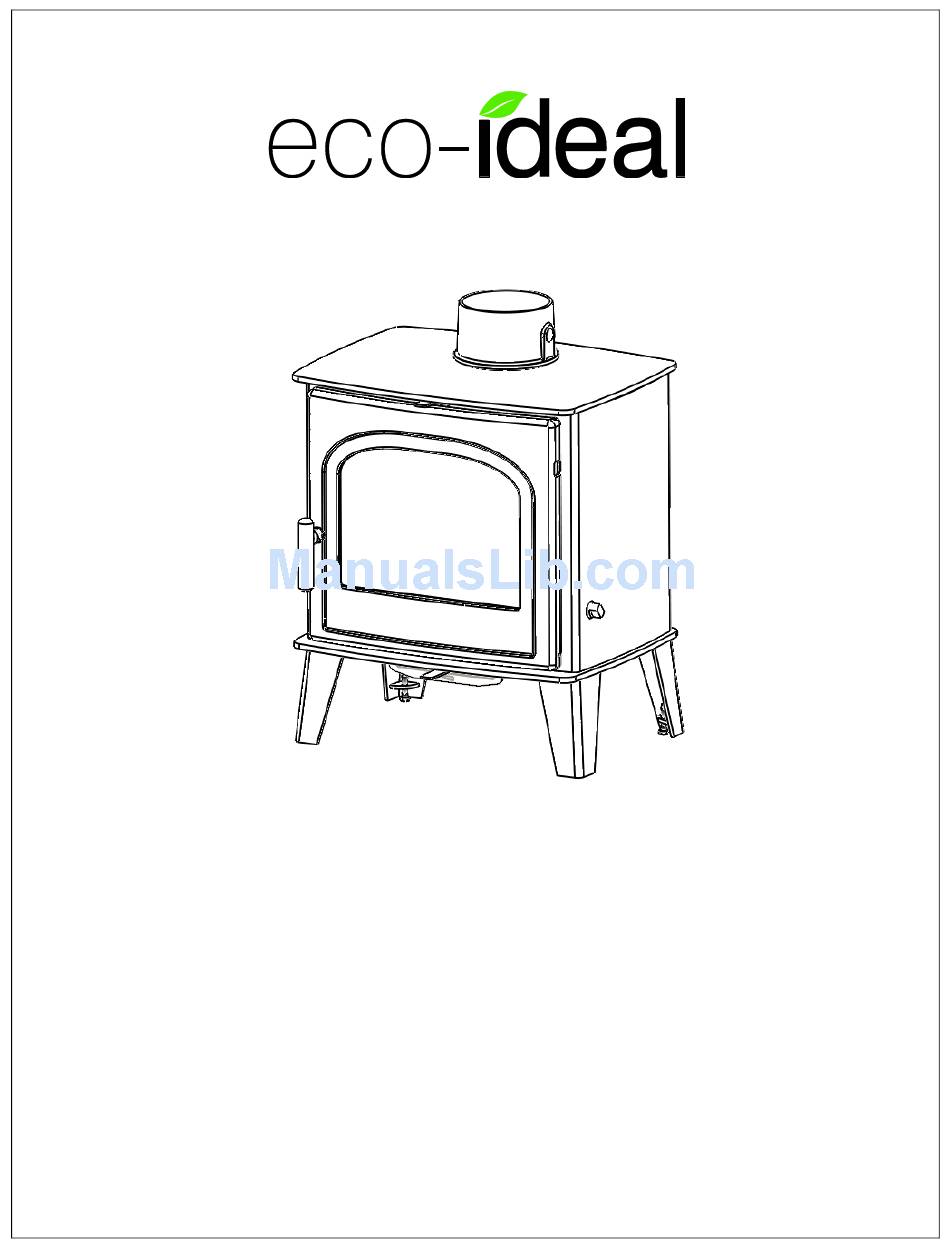

- Page 1 Clean Burn Stove Installation and Operating Instructions JINECO05 revB 20/06/14...
-
Page 2: Technical Specification
5 Technical Specification Appliance Mass 108 kg Total Efficiency 73.5 % Nominal Heat Output 4.4 kW Mean CO Emission (@13% O 0.17 % Mean Flue Gas Temperature 311 °C Flue Gas Mass Flow 4.6 g/s This appliance is not for use in a shared flue... -
Page 3: General Guidance
General Guidance Handling Adequate facilities must be available for loading, unloading and site handling. It is important that your stove is correctly installed as Hunter Stoves cannot accept Fire Cement responsibility for any fault arising through Some types of fire cement are caustic and incorrect use or installation. -
Page 4: In The Event Of A Chimney Fire
Fireguards If necessary seek professional advice. Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard Adverse Weather should be manufactured in accordance with In a small number of installations, occasional BS8423 – Fireguards for use with solid fuel local weather conditions (e.g. - Page 5 Assembly Instructions Flue Collar and Blanking Plate Wind the eight M6 studs supplied into the fixing holes in the flue collar and blanking plate until finger tight. Removing Internal Parts This set of instructions explains the removal sequence that you will need to employ when servicing your Hunter stove.
- Page 6 7. Remove the cam bar by lifting the left- 4. Remove the grate bars by lifting them hand end out of the side casting (f) and out in pairs (c). sliding the right right-hand end from the hole in the side of the stove (g), taking care to retrieve the cam hole plate (h).
- Page 7 Cam Hole Plate 8. Remove the right hand side casting by 10. Remove the catch bar (l). moving it upwards and out (i). 11. Remove the base casting (m). Remove the rear grate support by lifting it upwards and out (j). This will allow you to remove the left hand side casting (k).
-
Page 8: Installation Instructions
Installation A short length of flue pipe of minimum 125mm internal diameter may then be used to connect the stove to the chimney. This flue pipe should Instructions be made of 316 grade stainless steel or vitreous enamelled steel, nominal thickness 1.2mm. Ensure that the pipe end is no closer than Chimney 76mm to the chimney walls. - Page 9 Due consideration should be given to air requirements for any other appliance in the same room or space. Any air opening must be kept clear from blockage or obstruction. Hearth/ Material Clearances Your stove must be installed on a floor with adequate load-bearing capacity, otherwise suitable measures should be taken.
-
Page 10: Air Controls
Primary Air instructions and operating tools for the stove are left with the customer. Primary air is controlled via the slider at the bottom of the stove, under the door. The Advise the customer on the correct use of the amount of air can be increased by moving the appliance with the fuels likely to be used on the stove and warn them to use only the... -
Page 11: Riddling Grate
Secondary primary control closed. Moving the secondary Air Control control will adjust the burn rate of the stove. (Open Right) Note - primary and secondary air is needed to light the stove, see section entitled ‘Lighting the Stove’ Wood burns best on a bed of ash and it is therefore only necessary to remove surplus ash from the stove occasionally. -
Page 12: Smoke Control Areas
The Clean Air Act 1993 and fully to the right. Light one or two firelighters placed centrally on the grate, allowing the Smoke Control Areas flames to become established before placing Under the Clean Air Act 1993 local authorities several pieces of small dry kindling in a criss- may declare the whole or part of the district of cross fashion above the firelighters, taking care the authority to be a smoke control area. -
Page 13: General Maintenance
The eco 5 has been recommended as suitable Should any difficulties arise over fuel quality or for use in Smoke Control Areas when burning suitability, consult your local approved coal wood logs. merchant or: HETAS Ltd – Telephone 01242 673257 –... -
Page 14: Seasonal Use
Wet logs on heated glass, a badly aimed poker The baffle will need to be removed from its or heavy slamming of the door could crack the supports in order to sweep the chimney (see glass panel. assembly instructions). The glass will not fracture from heat. Only wire-centred sweeps’... -
Page 15: Troubleshooting
Troubleshooting Fire will not burn Check that: The air inlets are not obstructed in any way. Chimneys and flueways are clear. A suitable fuel is being used. There is an adequate air supply into the room. ... -
Page 16: Spares Information
Spares Information Door spares JINECO05 revB 20/06/14... - Page 17 Body Assembly Spares JINECO05 revB 20/06/14...
