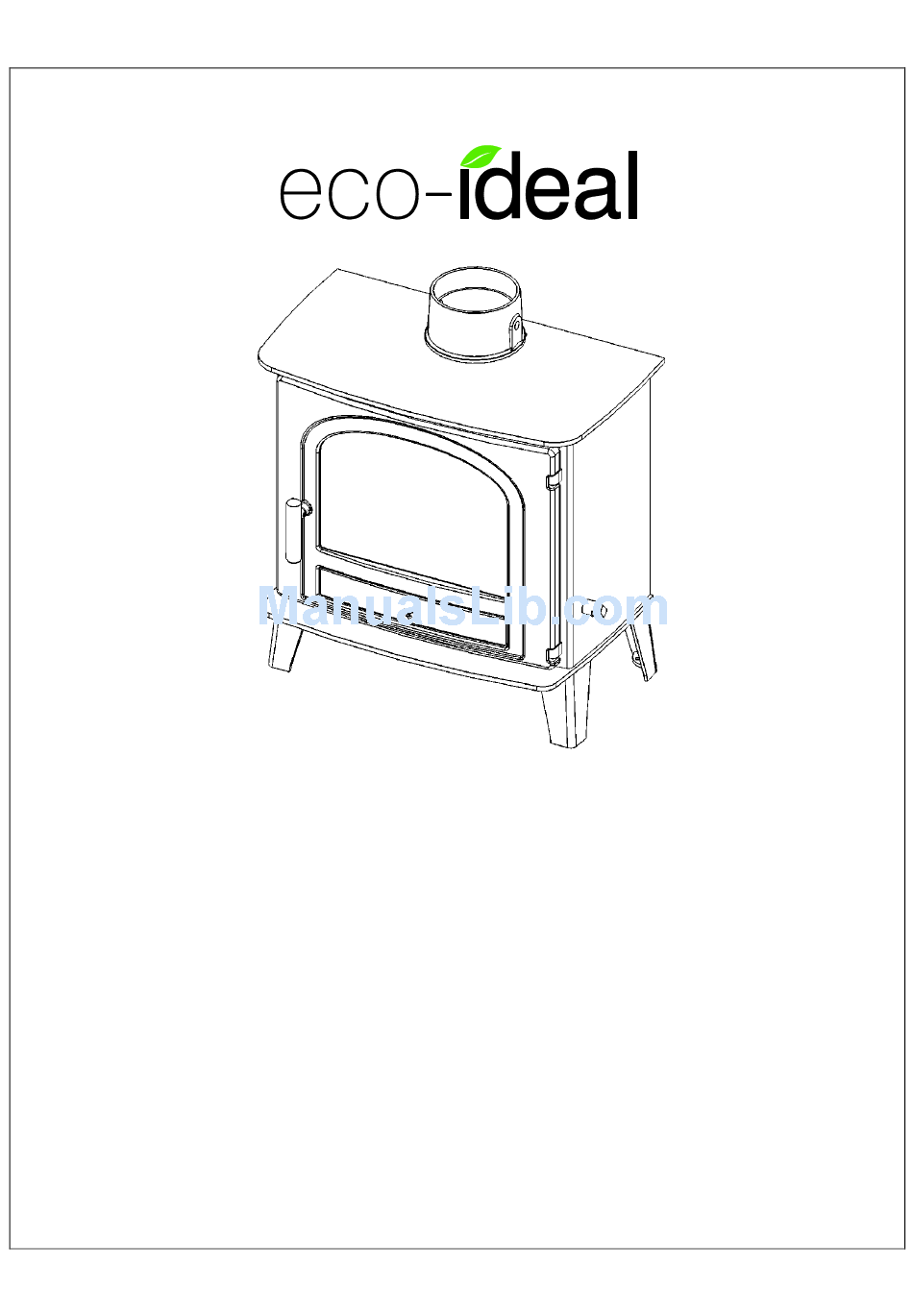

- Page 1 4 eco 4 eco 4 eco 4 Clean Burn Stove Installation and Operating Instructions JINECO04 revD 28/10/11...
- Page 2 4 Technical Specification Appliance Mass 88 kg Total Efficiency 73.0% 4.9 kW Nominal Heat Output 0.16 % Mean CO Emission (@13% O Mean Flue Gas Temperature 288 °C Flue Gas Mass Flow 6.5 g/s This appliance is not for use in shared flue...
-
Page 3: General Guidance
Handling General Guidance Adequate facilities must be available for loading, unloading and site handling. It is important that your stove is correctly installed as Hunter Stoves cannot accept Fire Cement responsibility for any fault arising through Some types of fire cement are caustic and incorrect use or installation. -
Page 4: Do Not Over-Fire
If necessary seek professional advice. Fireguards Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard Adverse Weather should be manufactured in accordance with In a small number of installations, occasional BS8423 – Fireguards for use with solid fuel local weather conditions (e.g. -
Page 5: Flue Collar
Assembly Instructions Flue Collar Wind the eight M6 studs supplied into the fixing holes in the flue collar and blanking plate until finger tight. Secure it, using the M6 nuts and studs. Fire Bricks The Fire Bricks, in this appliance, are factory fitted. - Page 6 Baffle / Throat Plate Lift the Baffle and slide to the left. When the right side of the Baffle clears the Baffle Support, lower the Baffle into the Fire Box and remove. Slide the base of the Side Brick towards the centre of the stove and remove.
-
Page 7: Installation Instructions
Connection to the Chimney Installation The chimney must be swept before connection Instructions to the stove. An existing fireplace opening can be bricked up or sealed with a register plate. Chimney The chimney height and the position of the A short length of flue pipe of minimum 127mm chimney terminal should conform to Building internal diameter may then be used to connect Regulations. -
Page 8: Air Supply
made of non-combustible board / sheet combustible board / sheet Minimum Draught – 1.2mm Water Gauge 1.2mm Water Gauge material or tiles, at least 12mm thick. es, at least 12mm thick. Maximum Draught – 2.5mm Water Gauge 2.5mm Water Gauge Air Supply The room or space containing this appliance The room or space containing this appliance... - Page 9 stove up the chimney and emitted safely to atmosphere. Do not run the stove at full output for at least 24 hours. completion installation commissioning, ensure that the operating instructions and operating tools for the stove are left with the customer. Advise the customer on the correct use of the appliance with the fuels likely to be used on the stove and warn them to use only the...
-
Page 10: Aerosol Sprays
Secondary Air Operating Secondary air is controlled via the slider above the door; it is this “Airwash” that keeps a clean Instructions and uninterrupted view of the fire. The amount of air can be increased by moving the slider to the right. -
Page 11: Notes On Wood Burning
To burn wood, push the operating tool up and Lighting the Stove away from you. We recommend that you have two or three small fires before you operate your stove to its When left in this position, air is restricted maximum heat output. -
Page 12: Reduced Combustion
Clean Air Act requirements The eco 4 has been recommended as suitable The Clean Air Act 1993 and for use in Smoke Control Areas when burning wood logs. -
Page 13: General Maintenance
No liquid fuels should be burnt on this Glass Panel appliance. Clean the glass panel when cool with Hunter Stoves glass cleaner. Should any difficulties arise over fuel quality or suitability, consult your local approved coal Highly abrasive substances should be avoided as merchant or: these can scratch the glass and make subsequent cleaning more difficult. -
Page 14: Troubleshooting
This is due to a reduction in the pigment used in Chimney and Flue ways the manufacture of the product and no cause It is important that the chimney, flue ways and for concern. any connecting flue pipe are swept regularly. This means at least once a year for smokeless Troubleshooting fuels and at least twice a year for wood and... -
Page 15: Spares Information
Spares Information Door spares JINECO04 revD 28/10/11... - Page 16 Body Assembly Spares JINECO04 revD 28/10/11...
