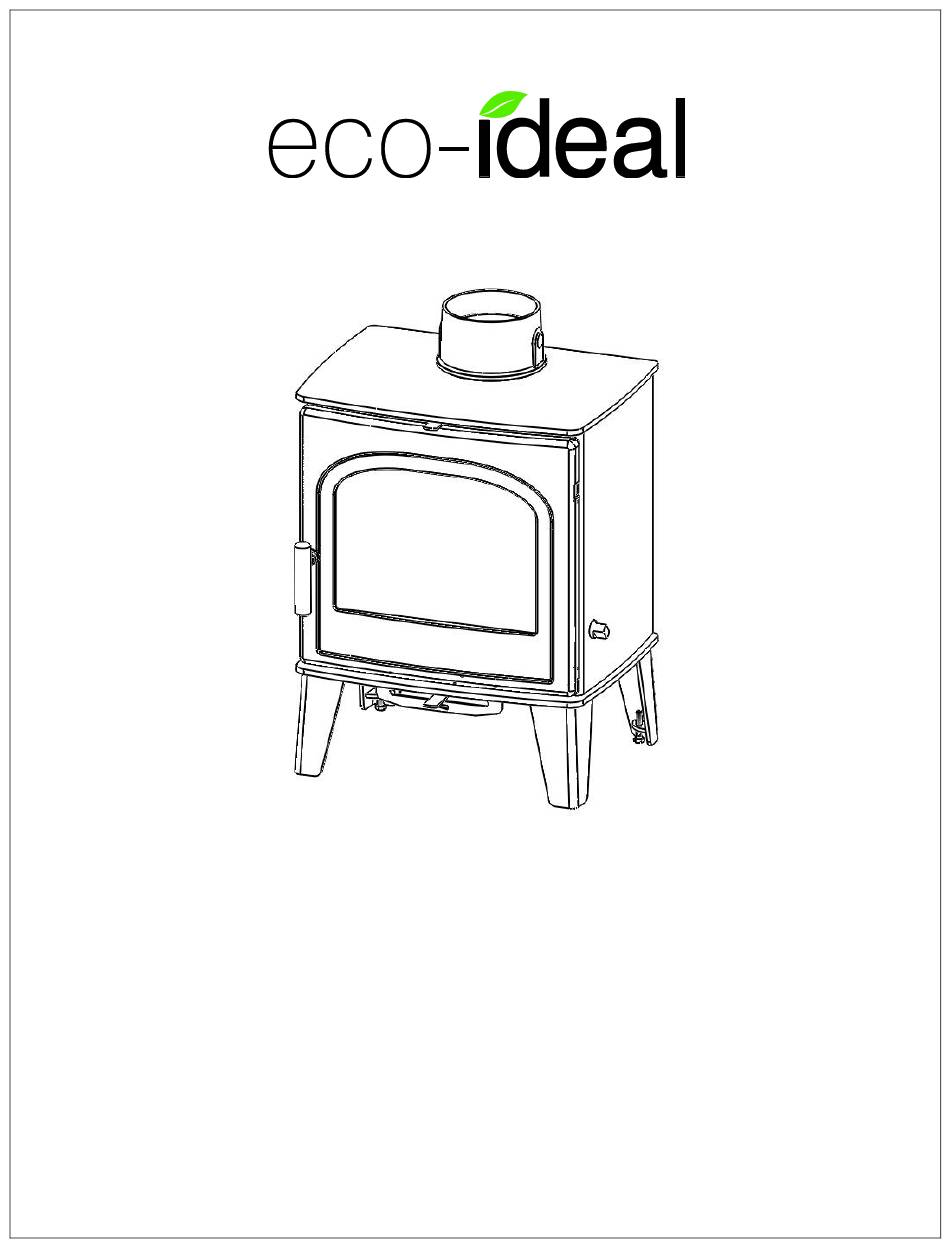

- Page 1 Clean Burn Stove Installation and Operating Instructions JINECO03 RevB 17/07/14...
- Page 2 3 Technical Specification Appliance Mass 113 kg Total Efficiency 75.0 % Nominal Heat Output 4.6 kW Mean CO Emission (@13% O 0.19 % Mean Flue Gas Temperature 246 °C Flue Gas Mass Flow 5.8 g/s This appliance is not for use in shared flue...
-
Page 3: General Guidance
General Guidance Handling Adequate facilities must be available for loading, unloading and site handling. It is important that your stove is correctly installed as Hunter Stoves cannot accept Fire Cement responsibility for any fault arising through Some types of fire cement are caustic and incorrect use or installation. - Page 4 Fireguards Adverse Weather Always use a fireguard in the presence of In a small number of installations, occasional children, the elderly or the infirm. The fireguard local weather conditions (e.g. wind from a should be manufactured in accordance with particular direction) may cause downdraught in BS8423 –...
- Page 5 Assembly Instructions Flue Collar Wind the eight M6 studs supplied into the fixing holes in the flue collar and blanking plate until finger tight. Secure it, using the M6 nuts and studs. Removing Internal Parts This set of instructions explains the removal sequence that you will need to employ when servicing your Hunter stove.
- Page 6 Remove the camber by lifting the left hand end of it upwards until it is outside the stove (f) and then sliding it all the way out (g). Remove the side bricks by lifting them up and swinging the bottom towards the centre of the stove (d) Remove the rear brick (e).
-
Page 7: Installation Instructions
Installation Remove the rear casting by lifting it Instructions upwards and out (i). This will allow you to remove the left hand side casting. Be careful not to hit the door catch cover (j). Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. - Page 8 If you have any doubts about the suitability of Minimum Draught – 1.2mm Water Gauge your chimney, consult your local Maximum Draught – 2.5mm Water Gauge dealer/stockist. Air Supply Connection to the Chimney The room or space containing this appliance The chimney must be swept before connection should have purpose provided ventilation to the stove.
- Page 9 completion installation commissioning, ensure that the operating instructions and operating tools for the stove are left with the customer. Advise the customer on the correct use of the appliance with the fuels likely to be used on the stove and warn them to use only the recommended fuels for the stove.
- Page 10 Secondary It is essential that the stove has an adequate air Air Control supply for combustion and ventilation. (Open Right) Primary Air Primary air is controlled via the slider under the ash-lip. The amount of air can be increased by moving the slider to the right.
- Page 11 Notes on Wood burning Lighting the Stove We recommend that you have two or three With a full load of wood, the stove will need to small fires before you operate your stove to its be refuelled approximately once every hour. maximum heat output.
- Page 12 Reduced Combustion Regulations and that appliances used to burn solid fuel those areas (other than In order to shut down the stove, close the "authorised" fuels) have been exempted by an primary control, then close the secondary air Order made and signed by the Secretary of slider by moving the handle all the way to the State Minister...
-
Page 13: General Maintenance
Stove Body Burning wet or unseasoned wood will create tar deposits in the stove and chimney and will not The stove is finished with a heat resistant paint produce a satisfactory heat output. and this can be cleaned with a soft brush. Only authorised smokeless fuels or dry wood Do not clean whilst the stove is hot. -
Page 14: Troubleshooting
Rope Gaskets Check the rope around the door. If rope is All gasket used on this appliance are produced becoming detached, use Hunter Stoves rope from a heat resistant material called Manniglas. glue to reattach it. If the rope is in a poor The glass gasket will have to be replaced when condition, a replacement rope kit may be a new piece of glass is fitted as the gaskets... -
Page 15: Spares Information
Spares Information Door spares JINECO03 RevB 17/07/14... - Page 16 Body Assembly Spares JINECO03 RevB 17/07/14...
