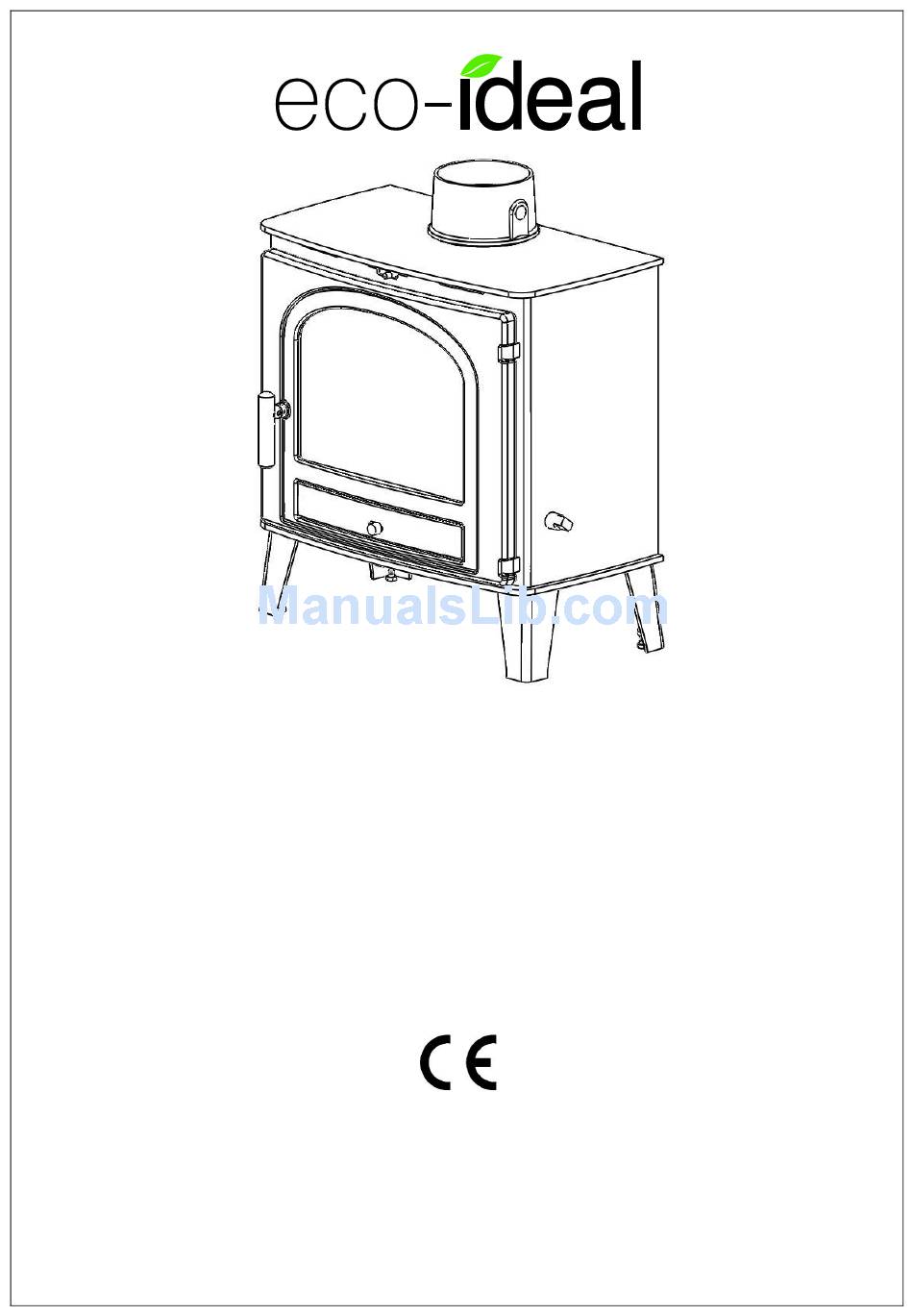

- Page 1 4 CVSEC04FM Instructions for: Installation/Operating/Maintenance/Servicing Approved for use in the United Kingdom and the Republic of Ireland JINECO04 REV I 12/03/15...
-
Page 2: Table Of Contents
CONTENTS INDEX: TECHINCAL SPECIFICATION………………………………………………………………………………………………. IMPORTANT INFORMATION……………………………………………………………………………………………… ASSEMBLY INSTRUCTIONS……………………………………………………………………………………………….. PRE INSTALLATION REQUIRMENTS…………………………………………………………………………………… INSTALLATION INSTRUCTIONS………………………………………………………………………………………….. OPERATING INSTRUCTIONS……………………………………………………………………………………………… COMMISSIONING AND HANDOVER………………………………………………………………………………….. MAINTENANCE & SERVICING…………………………………..……………………………………………………….. TROUBLESHOOTING…………………………………………………………………………………………………………. SPARES ……………………..……………………………………………………………………………………………………… COMMISSIONING & INSTALLATION CHECK LIST……………..……………….……………………………….. SERVICE RECORDS…………………………………………………………………………………………………………….. Eco Ideal Stoves, The Warranty will only be valid if the appliance is Emperor Way, installed by an appropriately qualified engineer in Exeter Business Park,... -
Page 3: Techincal Specification
4 Technical Specification Appliance Mass 88 kg Total Efficiency 73.0% Nominal Heat Output 4.9 kW Mean CO Emission (@13% O 0.16 % Mean Flue Gas Temperature 288 °C Flue Gas Mass Flow 6.5 g/s This stove has been designed and assembled so that it may be used to burn wood logs in a Smoke Control Area. -
Page 4: Important Information
IMPORTANT INFORMATION PLEASE READ THESE INSTRUCTIONS PRIOR TO INSTALLATION AND OPERATION. KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERANCE AND SERVICING. THIS APPLIANCE WILL BECOME VERY HOT WHEN USED IN ACCORDANCE WITH THESE INSTRUCTIONS, CLEANBURN STOVES RECOMMEND THAT AN APPROVED GUARD IS USED TO PROTECT THE YOUNG, ELDERLY OR INFIRM FROM HARM. -
Page 5: Fire Cement
Handling Fireguards Adequate facilities must be available for loading, Always use a fireguard in the presence of children, unloading and site handling. the elderly or the infirm. The fireguard should be Fire Cement manufactured in accordance with BS8423 – Fireguards for use with solid fuel appliances. Some types of fire cement are caustic and should not be allowed to come into contact with the skin. - Page 6 Adverse Weather In a small number of installations, occasional local weather conditions (e.g. wind from a particular direction) may cause downdraught in the flue, causing the stove to emit fumes. In these circumstances the stove should not be used. A professional flue installer can advise on solutions to this problem.
-
Page 7: Assembly Instructions
Assembly Instructions sequence that you will need to employ when servicing your Eco Ideal Stove. Side Bricks OLLAR AND LANKING LATE Remove all the Riddling Bars, Cam Bar and Catch Wind the eight M6 studs supplied into the fixing Bar. holes in the flue collar and blanking plate until finger tight. -
Page 8: Pre Installation Requirments
Rear Brick PRE-INSTALLATION REQUIREMENTS ARNING You run the risk of serious health problems if the products of combustion enter the property. LEASE CHECK THE FOLLOWING Any existing chimney/flue system must be confirmed as suitable for this appliance as defined in Building Regulations Document J. It must be swept and inspected, by a competent person (see notes), to confirm that is structurally sound and free from cracks and obstructions. -
Page 9: Installation Instructions
http://www.planningportal.gov.uk/uploads/br/BR_P Flue Outlet Positions (Document J): DF_ADJ_2010.pdf Installation Instructions EGAL EQUIREMENTS Eco Ideal Stoves requests that before installation and/or use of this appliance that you read these instructions carefully to ensure that all the relevant requirements are fully understood. These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit Position on Roof... -
Page 10: Air Supply
ARNING FAULTY INSTALLATION CAN CAUSE DANGER ILL HEALTH AND EVEN DEATH TO THE INHABITANTS AND POSSIBLY COMPROMISE THE STRUCTURE OF THE BUILDING OMPETENT ERSONS CHEME Members of the following schemes may self-certify the installation of this stove. If the installer is not a member of one of these schemes, your local Building Control Department must approve the installation. -
Page 11: Flue Draught
If the chimney is believed to have previously served Flue Draught an open fire installation, it is possible that the higher If the draught exceeds the recommended maximum, flue gas temperature from the stove may loosen a draught stabiliser must be fitted so that the rate of deposits that were previously firmly adhered, with burning can be controlled and to prevent over firing. - Page 12 The hearth should extend at least 225 mm from the The hearth should extend at least 150 mm from the sides and rear of the stove, and at least 225 mm front of the stove. from the front of the stove. All non-combustible If the stove is to stand in an appliance recess, it walls closer than 300mm to the stove should be at should stand wholly above a solid, non-combustible...
-
Page 13: Operating Instructions
Operating Instructions Tertiary Air Tertiary air aids in good secondary combustion of the fuel and reducing emissions into the chimney and environment. This appliance is not suitable for use in a shared flue Tertiary air can be controlled by adjusting the cover Operation with the door open can cause excess plate on the back of the stove. -
Page 14: Riddling Grate
fuels, to leave the grate in a “neutral” position, thus Riddling Grate directing some under fire air and some over fire air to the fire bed. Your Eco Ideal Stove is fitted with a locomotive type grate. So that de-ashing can be carried out LIGHTING THE APPLIANCE cleanly and easily, it is riddled from the outside of First, load the fire with starting fuel, i.e. - Page 15 the stack to enable it to dry out. Burning wet or REFUELING unseasoned wood will create tar deposits in the Add the new fuel to the fire and open both air stove and chimney and will not produce a controls fully to allow flames to establish on the satisfactory heat output.
- Page 16 Length: 235mm (9 3/4”) contact them for details of Clean Air Act requirements. The Eco 4 has been recommended as suitable for use in Smoke Control Areas when burning wood logs. CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS Under the Clean Air Act 1993 local authorities may declare the whole or part of the district of the authority to be a smoke control area.
-
Page 17: Commissioning And Handover
A small fire can now be lit and allow the appliance to COMMISSIONING AND heat up slowly ensuring that no products of HANDOVER combustion enter into the room. When the appliance has reached working temperature open the Door and carry out a spillage test using a smoke APPLIANCE CHECK match around the door opening. -
Page 18: Maintenance & Servicing
STOVE BODY MAINTENANCE & The stove is finished with a heat resistant paint and SERVICING this can be cleaned with a soft brush. Do not clean WARNING! whilst the stove is hot; wait until it has cooled down. At no point should any water based or other NO unauthorised modification of this appliance cleaning products be used on the stove. - Page 19 DOOR CATCH DE-ASHING Should the door catch require adjustment, please De-ashing should be carried out on a regular basis to follow the procedure below: avoid a buildup of ash and ensure sufficient primary air flow. Empty the ashpan regularly to prevent ash Open the Door.
-
Page 20: Troubleshooting
TROUBLESHOOTING: TROUBLESHOOTING EXAMPLES: Incorrect Flue Draught in your chimney/flue system FIRE WILL NOT BURN will cause for poor performance of your appliance. Check that: Excessive Flue Draught can cause Poor burning 1. The air inlet is not obstructed in any way. control, excessive fuel consumption and even noise from the Air Controls. -
Page 21: Spares
Spares Information Door spares Single Door HEC07001 Top Hinge Pin ECO02011 Door Hinge Door Handle Assembly ECO06003 ECO06ARRT005 Slider Knob Door Glass HCE06059 ECO06008 Door Cover Bottom Hinge Pin HEC07002 ECO02012 Glass Clip HHR08164 Glass Clip Screw Glass Gasket FSJM05008SS ECO06007 Rope Sealing Kit SCPHCE09SDSK... - Page 22 Body Assembly Spares...
-
Page 23: Commissioning & Installation Checklist
COMMISSIONING & INSTALLATION CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:... -
Page 24: Service Records
SERVICE RECORDS Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Service Company/ Engineer Engineer Signature Signature Service Service Date of Service Date of Service Date of next Service Date of next Service Servicing Company/ Service Company/...
