Luxair LA-Trif-Downdraft Installation Instructions Manual

Hide thumbs Also See for LA-Trif-Downdraft:

Advertisement

Quick Links

LA-Trif-Downdraft
I
CAPPA DA CUCINA
ISTRUZIONI DI MONTAGGIO
GB
COOKER HOOD
INSTALLATION INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the LA-Trif-Downdraft and is the answer not in the manual?

Questions and answers

Summary of Contents for Luxair LA-Trif-Downdraft

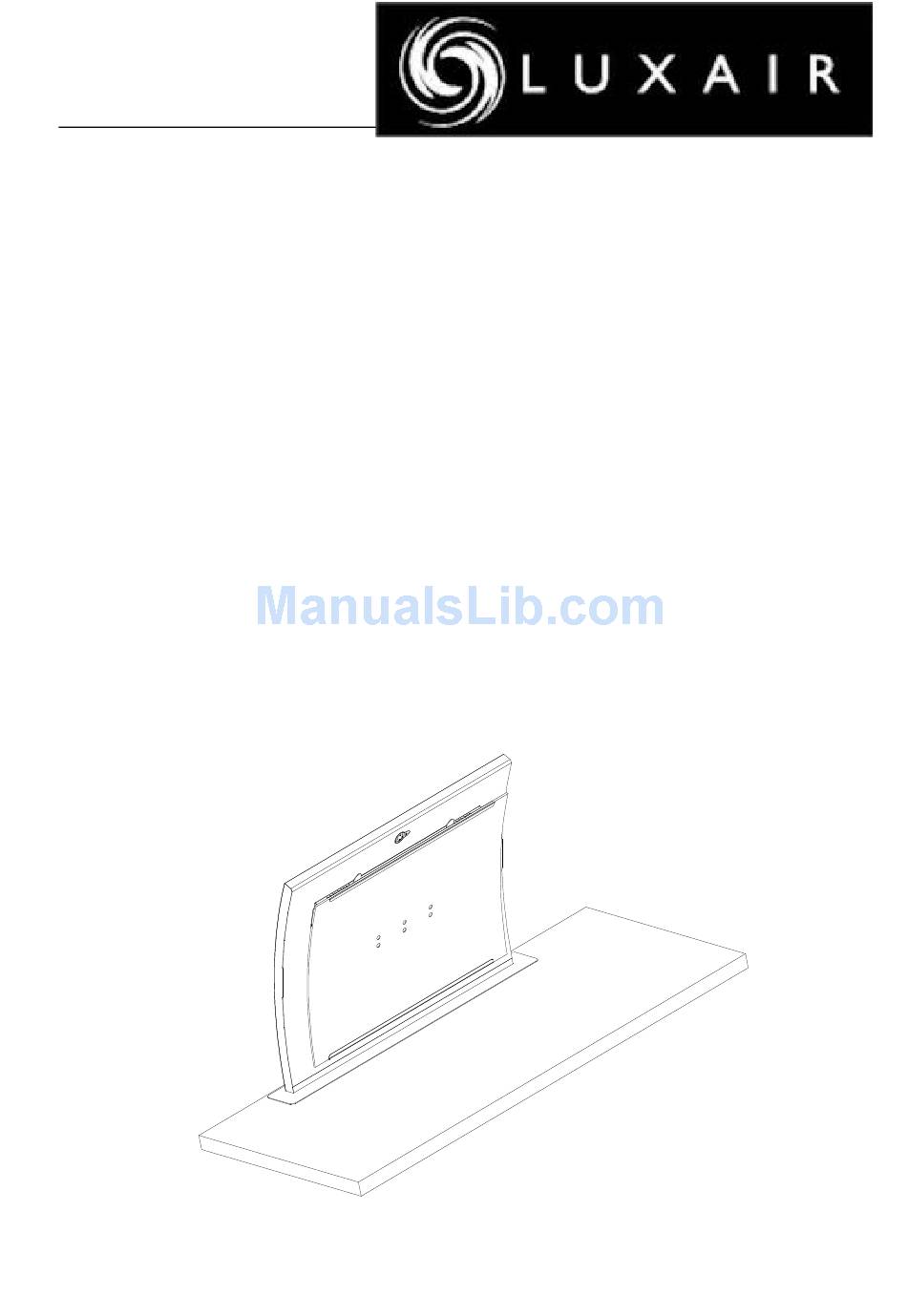

  • Page 1 LA-Trif-Downdraft CAPPA DA CUCINA ISTRUZIONI DI MONTAGGIO COOKER HOOD INSTALLATION INSTRUCTIONS...
  • Page 2 COMPONENTI COOKER HOOD COMPONENTS A - Corpo cappa A – Hood structure A – Corps de la hotte B – Dima foratura B – Template for fixing B – Schéma de perçage C – Piastra di fissaggio C – Mounting plate C –...
  • Page 7 Schema elettrico Wiring Diagram Schéma de câblage Schaltplan Esquema eléctrico Esquemaelétrico ‫ا‬ ‫ا‬...
  • Page 8 SAFETY - Do not do flambé cooking under the hood - Constantly check while using the fryers because overheated oil can catch fire - Prior to any cleaning operation, disconnect the unit from electrical power by pulling the plug or operating the switch - If in the room the hood is simultaneously used with other appliances that give off fumes, not powered by electricity, the room should be provided with ventilation - Avoid having free turned on stoves (not used)
  • Page 9 Ducting Mode Version Use preferably a hose Ø150mm or Ø125mm possibly flexible and secure it with a hose clamp. Connect the exhaust pipe to the external pipe and secure it with a hose clamp. Do not install the active charcoal filters. Re-circulating Mode Version (sold separately) The active charcoal filter is not cleanable so it must be replaced at least once every two months.
