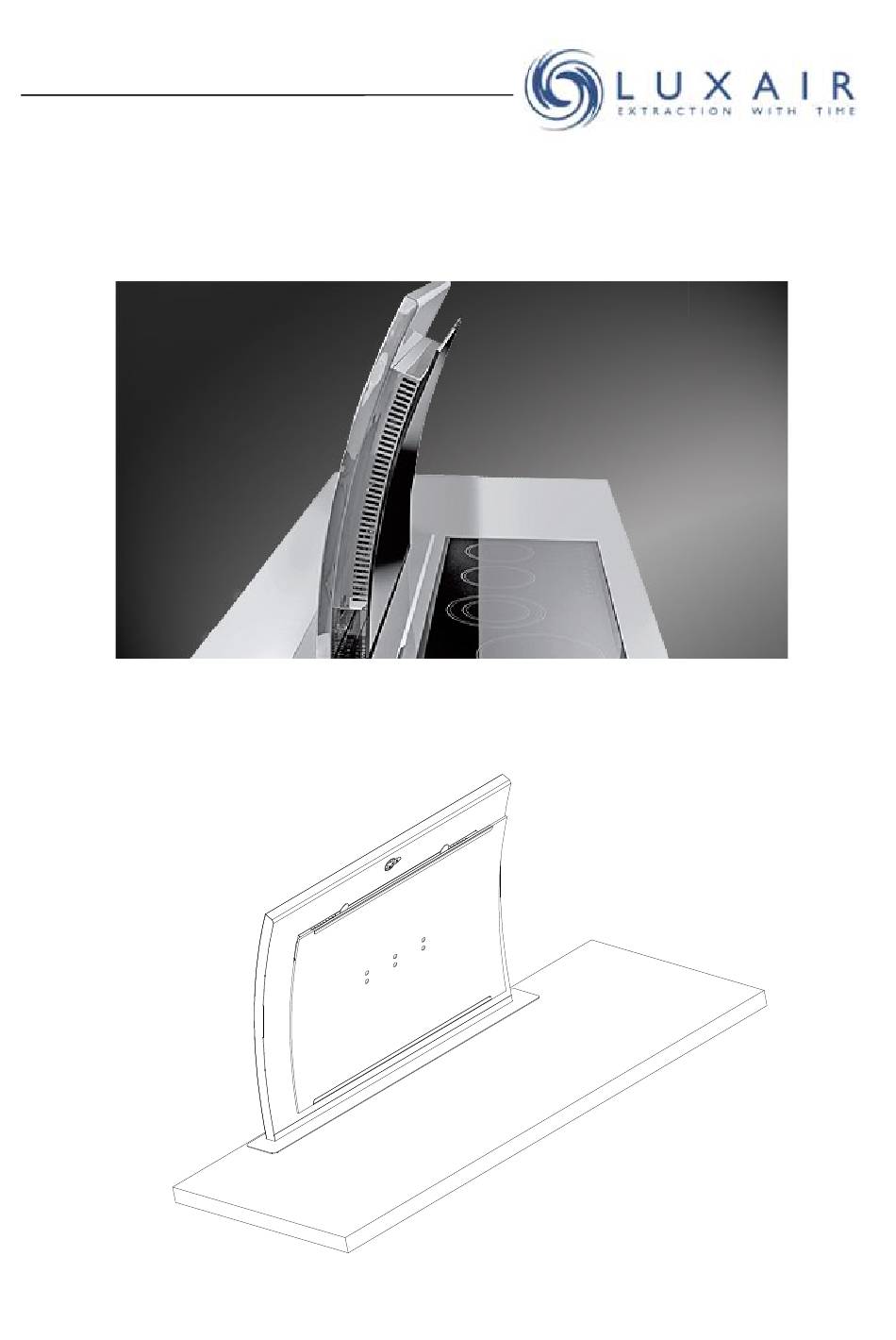

- Page 1 LA-TRIF-DOWNDRAFT Installation Guide...
- Page 2 COMPONENTI COOKER HOOD COMPONENTS A - Corpo cappa A – Hood structure A – Corps de la hotte B – Dima foratura B – Template for fixing B – Schéma de perçage C – Piastra di fissaggio C – Mounting plate C –...
- Page 3 After cutting out your worktop, place the top bar over the hole and mark the drill hole positions accordingly.
- Page 4 Now align the top and bottom plate over the bolt holes and secure using the bolts provided Now seat your cooker hood section into the hole, pass through the control cable and take care not to scratch or damage the control ribbon. now secure with the bolts from underneath.
- Page 5 Now connect the motor housing plate to the bracket using the bolts provided, again make sure the control ribbon is passed through the hole Now connect your ducting pipe to the underside of the bracket, and then connect your ducting to the top of the motor housing You need to position your motor outlet ducting either front, back, left or right...
- Page 6 Toggle switch operation Remote Control optional Extra To remove the glass front, remove the top bracket, and lift the glass upwards. LED LIGHT BAR Remember to clean the metal grease filter every three months, place in your dishwasher as you would a plate, let it dry and replace as shown...
- Page 7 Warranty Registration is now on-line only 3011000001501...
