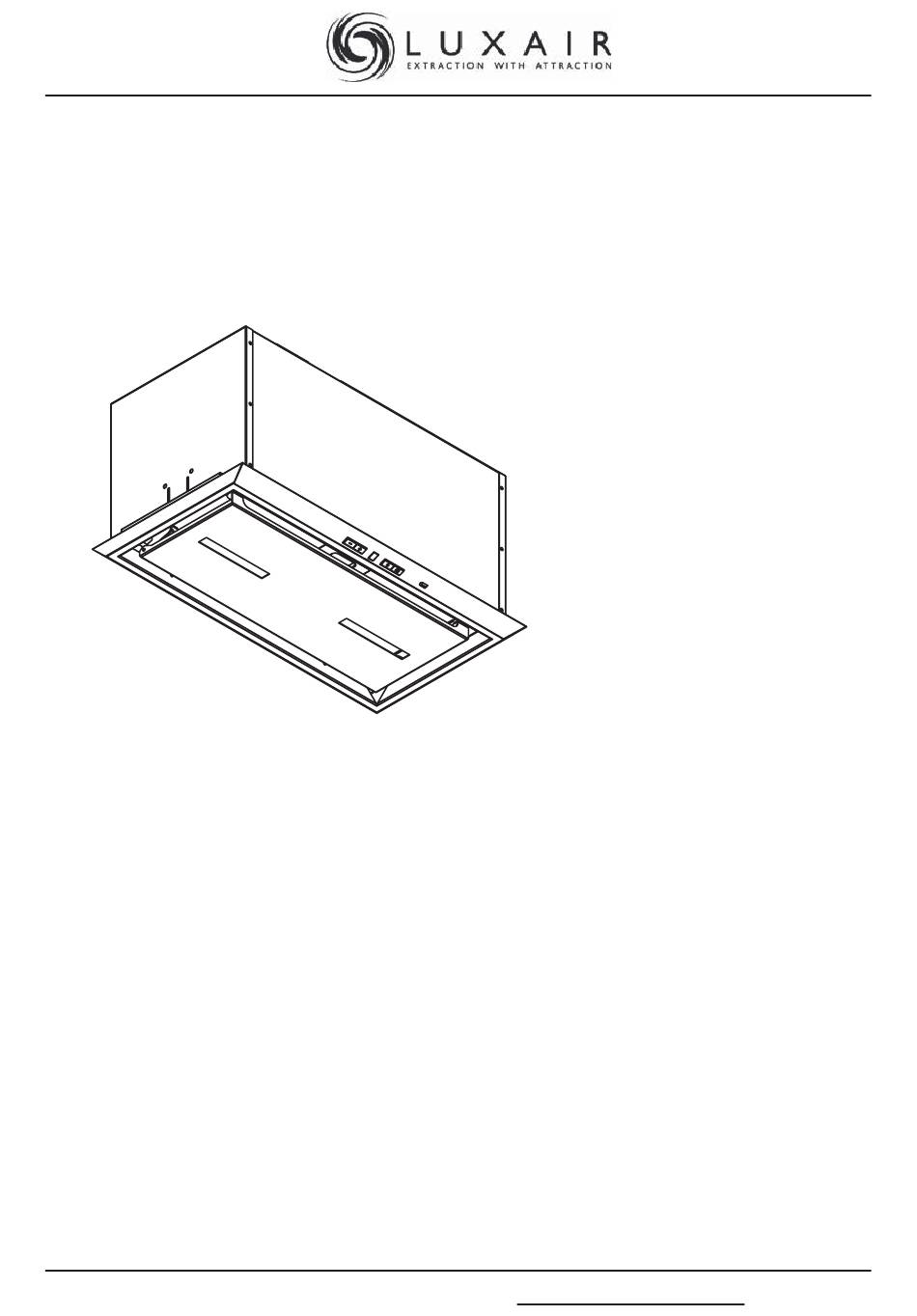

- Page 1 HOOD INSTALLATION, M AINTENENCE AND USAGE LA-54-CAN-LUX-SS-+ LA-72-CAN- LUX-SS-+ LA-86-CAN- LUX-SS-+ LA-54-CAN-BG-+ LA-72-CAN-BG-+ LA-86-CAN-BG-+ LA-54-CAN-WG-+ LA-72-CAN-WG-+ LA-86-CAN-WG-+ Please register your warranty at www.luxairhoods.com...
- Page 2 Æ150...
- Page 3 16 cm 16 cm 220-240V 50-60Hz 220-240V 50-60Hz...
- Page 4 LED 2x2W...
- Page 5 Closely follow the instructions set out in this manual. All re- sponsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use. The hood can look different to that illustrated in the drawings in this booklet.
- Page 6 by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
- Page 7 instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
-
Page 8: Ducting Version
Ducting version In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood. Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring. -
Page 9: Operation
compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an acces- sible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions. -
Page 10: Maintenance
Speed Timing The timing of the speed is enabled selecting speed and pressing timer icon, once the timing expires the hood turns off. The timing is subdivided as follows: 9 intervals, every interval last 10 minutes Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the elec- trical supply by switching off at the connector and removing the connector fuse. -
Page 11: Replacing Lamps
cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated. Replacing lamps Refer to the drawing on page 5, as shown on the drawing 19, 20. Disassemble the aluminium filters (as shown on the drawing 15) then using your hand push the lighting downwards.
