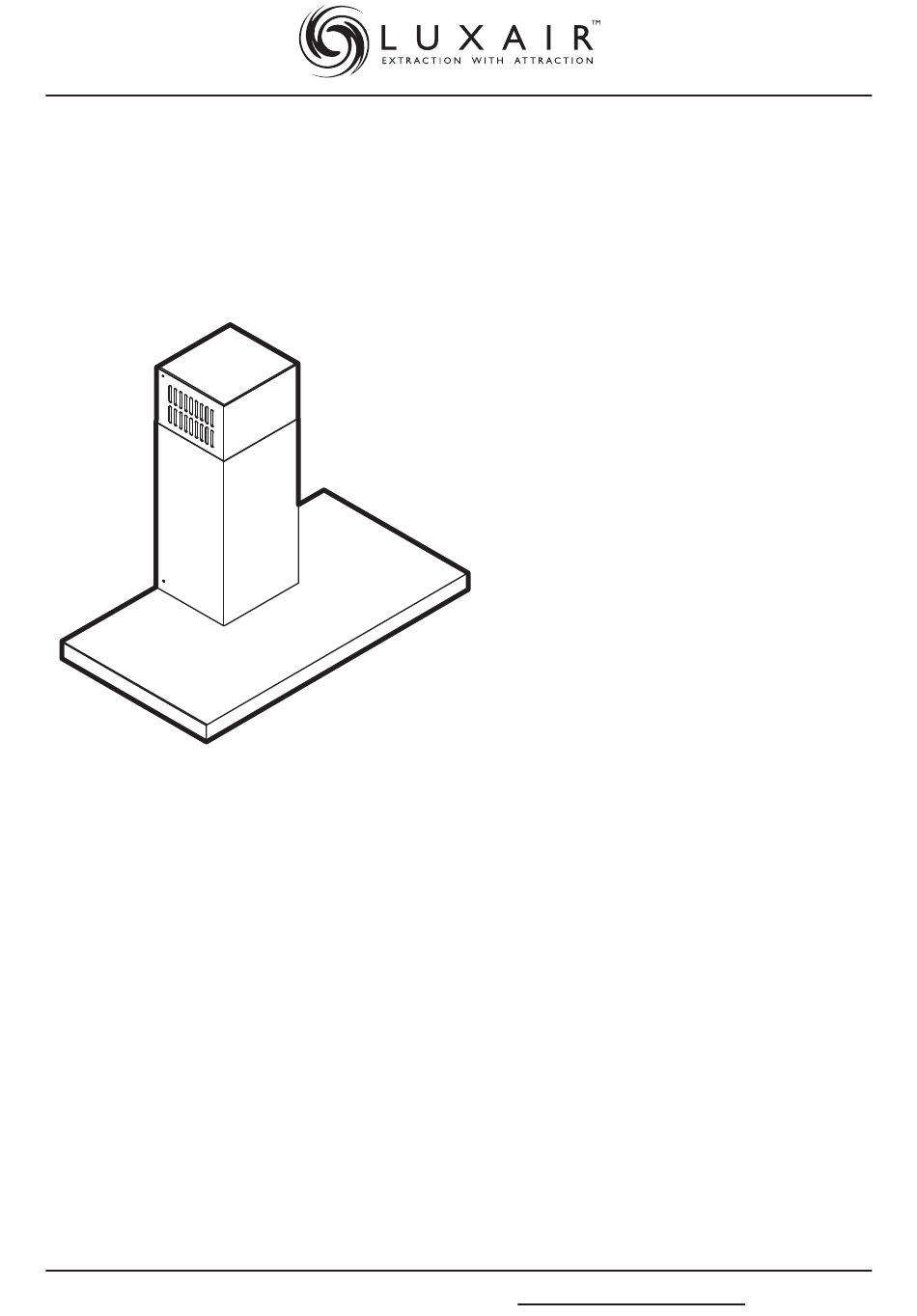

- Page 1 HOOD INSTALLATION, MAINTENENCE AND USAGE LA-60-MODA LA-70-MODA LA-80-MODA LA-90-MODA LA-100-MODA LA-110-MODA LA-120-MODA Please register your warranty at www.luxairhoods.com...
- Page 3 Please note this hood must be installed on minimum 5" Round or rectangular equivalent ducting* Only: LA-100-MODA / LA-110-MODA / LA-120-MODA Ć150 999 / 1099 / 1199 700 / 800 / 1000 Ć150...
- Page 4 Ć 8 x 40 mm Ć 4.5 x 50 mm Ć Ć 4.5 x 50 mm 8 x 40 mm Ć Ć 10 cm Ć16cm >1 cm Ć16cm >30 cm...
- Page 5 Please note this hood must be installed on minimum 5" Round or rectangular equivalent ducting* >1 cm W -2 cm 220-240V 50-60Hz W cm >30 cm...
- Page 6 LED2x3W...
- Page 7 Closely follow the instructions set out in this manual. All re- sponsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use. The hood can look different to that illustrated in the drawings in this booklet.
- Page 8 by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
- Page 9 instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
-
Page 10: Ducting Version
Ducting version In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood. Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring. - Page 11 Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an acces- sible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current...
-
Page 12: Operation
Operation Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. –... -
Page 13: Grease Filter
Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL! WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.
