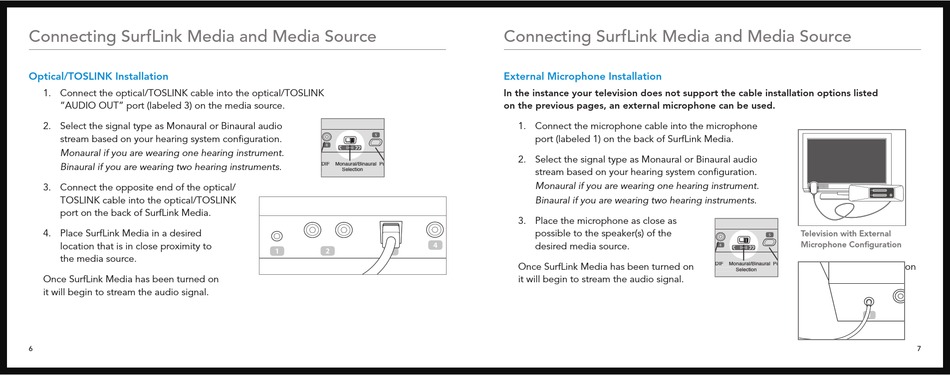

Starkey SurfLink Media Manual page 4

Connecting SurfLink Media and Media Source
Optical/TOSLINK Installation
1. C onnect the optical/TOSLINK cable into the optical/TOSLINK
"AUDIO OUT" port (labeled 3) on the media source.
2. S elect the signal type as Monaural or Binaural audio
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. C onnect the opposite end of the optical/
TOSLINK cable into the optical/TOSLINK
port on the back of SurfLink Media.
4. Place SurfLink Media in a desired
location that is in close proximity to
the media source.
Once SurfLink Media has been turned on
it will begin to stream the audio signal.
6
Volume Control Streaming Activation Power
Control
Microphone RCA Jacks Optical Optical S/PDIF S/PDIF Monaural/Binaural Power Monaural/Binaural Power
TOSLINK SLINK Selection Selection
Connecting SurfLink Media and Media Source
External Microphone Installation
In the instance your television does not support the cable installation options listed
on the previous pages, an external microphone can be used.
1. C onnect the microphone cable into the microphone
port (labeled 1) on the back of SurfLink Media.
2. S elect the signal type as Monaural or Binaural audio
Volume Control Streaming Activation
stream based on your hearing system confi guration.
Monaural if you are wearing one hearing instrument.
Binaural if you are wearing two hearing instruments.
3. Place the microphone as close as
possible to the speaker(s) of the
desired media source.
Microphone RCA Jacks Optical Optical
Once SurfLink Media has been turned on
TOSLINK
it will begin to stream the audio signal.
Power
Control
Television with External
Microphone Confi guration
S/PDIF S/PDIF Monaural/Binaural Power Monaural/Binaural Power
SLINK Selection Selection
on
7
