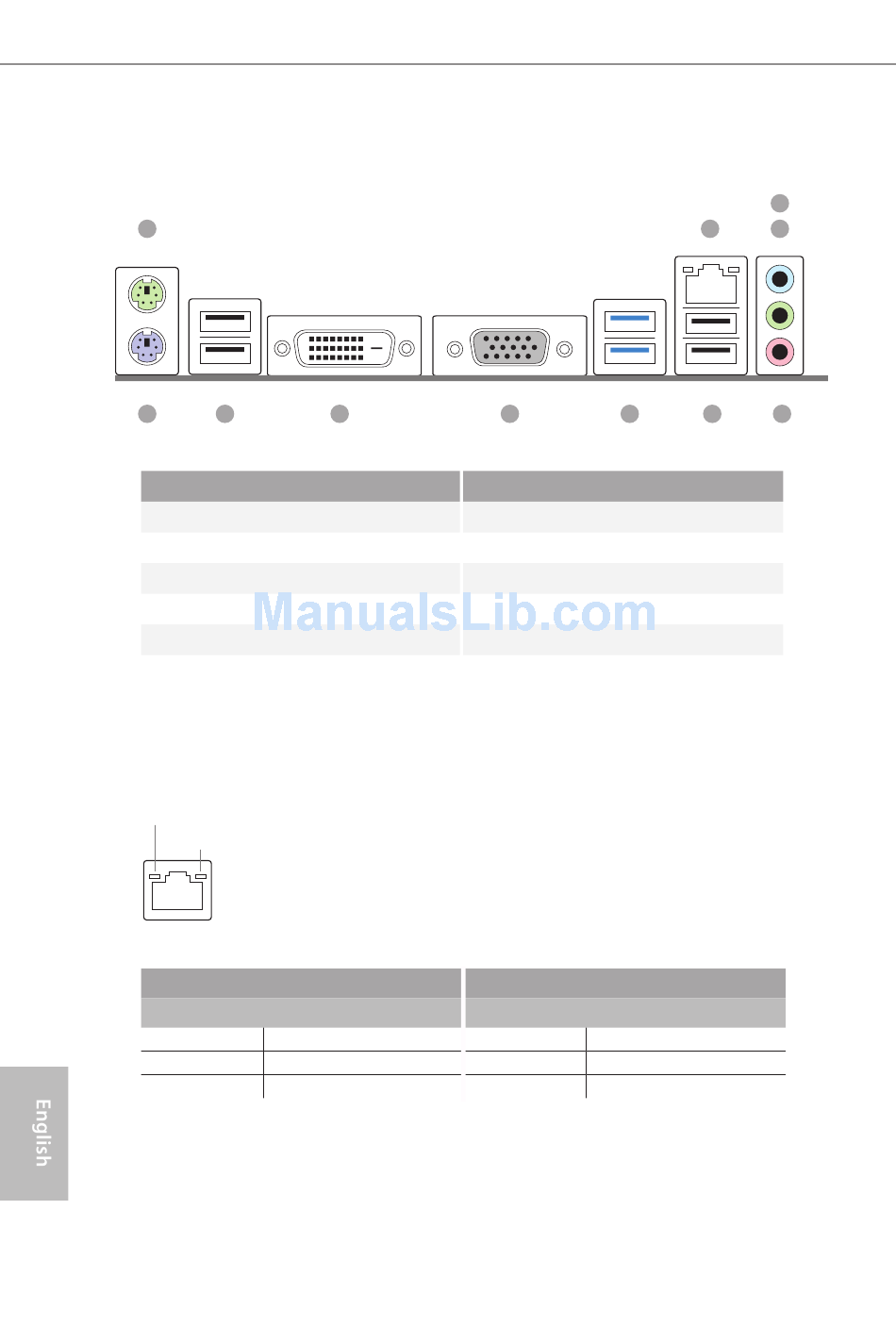

1.4 I/O Panel

1
11 10
No. Description
1 PS/2 Mouse Port (Green)
2 LAN RJ-45 Port*
3 Line In (Light Blue)
4 Front Speaker (Lime)
5 Microphone (Pink)
6 USB 2.0 Ports (USB45)
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED
indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Off
Blinking
On
8
9
Description
No Link
Data Activity
Link
8 7
No. Description
7 USB 3.0 Ports (USB23)
D-Sub Port (VGA1)
8
DVI-D Port (DVI1)
9
10 USB 2.0 Ports (USB01)
11 PS/2 Keyboard Port (Purple)
Speed LED
Status Description
Off 10Mbps connection
Orange 100Mbps connection
Green 1Gbps connection
3
2 4
6 5
