Asante IntraCore 3624PWR Setup Manual
Layer 2+ power over ethernet (poe) switch with dual gigabit
Hide thumbs
Also See for IntraCore 3624PWR:
- Supplementary manual (5 pages) ,
- Release note (1 page) ,
- User manual (87 pages)
Related Manuals for Asante IntraCore 3624PWR
Summary of Contents for Asante IntraCore 3624PWR

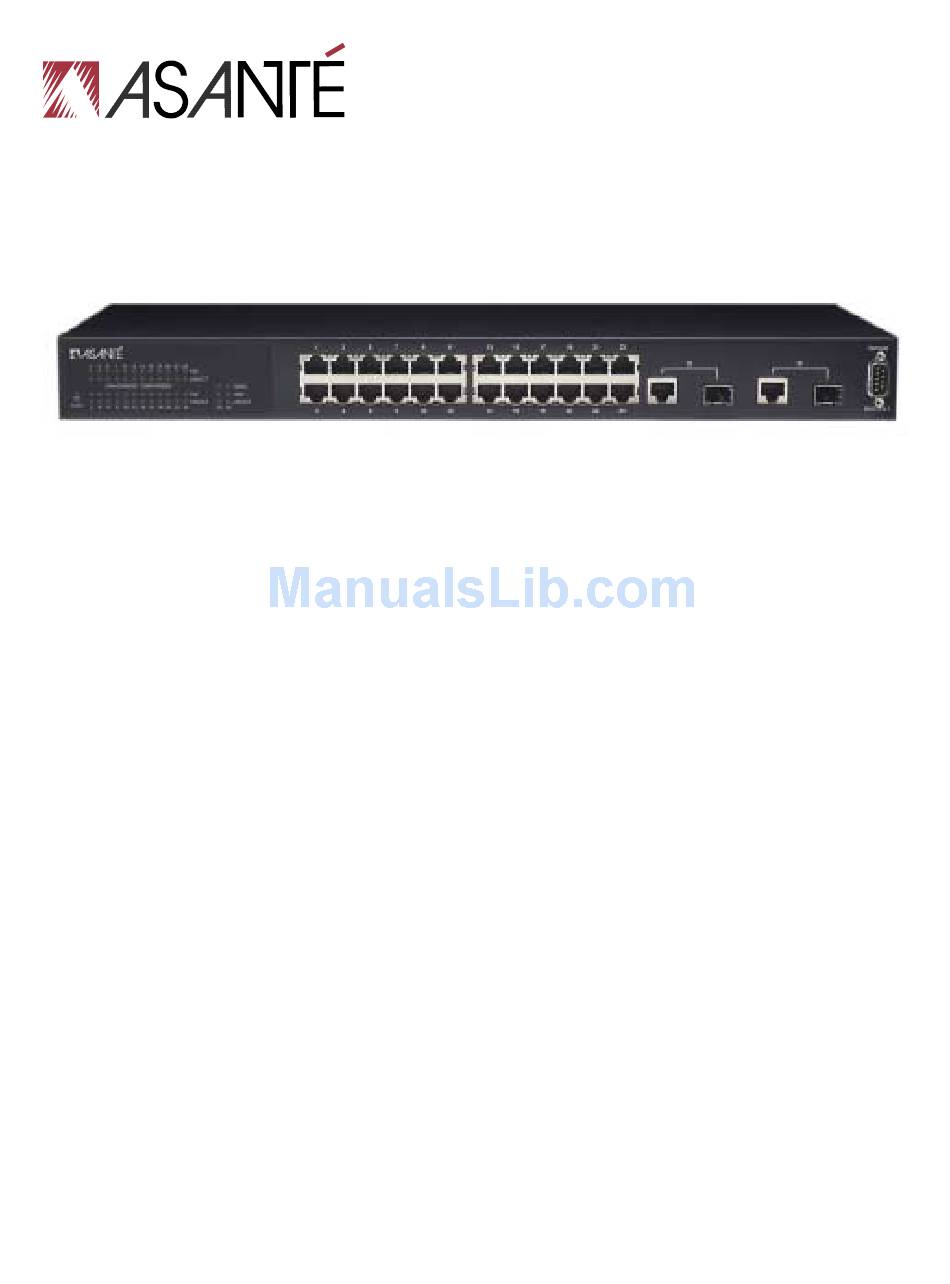

- Page 1 ® IntraCore IC3624PWR Layer 2+ Power over Ethernet (PoE) Switch with Dual Gigabit Setup Guide...
-
Page 2: Setup Guide
[Default IP Address: 192.168.0.1] [Default username: root [Default password: Asante Copyright © 2004 Asanté Technologies, Inc. All rights reserved. No part of this document, or any associated artwork, product design, or design concept may be copied or reproduced in whole or in part by any means without the express written consent of Asanté... -
Page 3: Quick Start Guide
Quick Start Guide Follow these steps to install your IntraCore IC3624PWR Layer 2+ Power Over Ethernet with Dual Gigabit switch. (Refer to Chapter 3 in this document or the User’s Manual for this product for complete instructions.) 1. Open the box and check the contents. 2. -
Page 4: Table Of Contents
Table of Contents Quick Start Guide...3 Table of Contents...4 Chapter 1: Introduction...7 1.1 Features ...7 1.1.1 Connectivity ...7 1.1.2 Performance ...7 1.1.3 Management ...8 1.2 Network Management Options ...8 1.3 Ports ...8 Chapter 2: Network Planning ...9 2.1 Management Access Overview ...9 Chapter 3: Hardware Installation and Setup ...10 3.1 Installation Overview ...10 3.2 Safety Recommendations ...10... - Page 5 3.7 Applying Power ...14 3.8 Ethernet Cabling...14 3.9 Connecting to the Console Port...15 3.9.1 Wiring Map for Serial Cable ...15 Chapter 4: Connecting Network Devices ...16 4.1 Twisted-Pair Devices...16 4.2 Interpreting LEDs ...16 4.3 Connectivity Guidelines ...16 4.4 Cable Labeling and Connection Records ...16 Chapter 5: Configuring the Switch ...17 5.1 Connecting to the Switch...17 5.2 Direct Access ...18...
- Page 6 6.7 Run CLI ...23 Appendix A: Basic Troubleshooting ...24 A.1 Diagnosing Switch Indicators ...24 A.2 Power and Cooling Problems...24 A.3 Installation...24 A.4 In-Band Access...24 Appendix B: Specifications...25 Appendix C: Cables and Pin Assignments...26 C.1 Twisted-Pair Cable and Pin Assignments ...26 C.1.1 Pin Assignments for 10BaseT/100BaseTX...26 C.1.2 Straight-Through Wiring ...27 C.1.3 Crossover Wiring...27...
-
Page 7: Chapter 1: Introduction
Chapter 1: Introduction The IntraCore IC3624PWR Layer 2+ Power over Ethernet (PoE) with Dual Gigabit (IC3624PWR) is a product you can use to build your next generation network. The IC3624PWR device uses Layer 2+ technology and has 24 ports for 10/100/1000BastTX Fast Ethernet with 2 combination ports for added 10/100BaseT Gigabit Ethernet. -
Page 8: Management
1.1.3 Management Web browser Telnet (multiple sessions) Console SNMP v1 and v2c RMON Groups 1, 2, 3 and 9 1.2 Network Management Options The IntraCore IC3624PWR provides both local and remote management. You can configure or monitor the switch using the embedded management software or by using SNMP applications. You can manage the switch by a direct connection to the RS-232 console port (out-of-band), or a network connection (in-band) using Telnet, or the on-board Web agent. -
Page 9: Chapter 2: Network Planning
Chapter 2: Network Planning This chapter gives an overview of switch management, including the methods you can use to manage your IntraCore IC3624PWR Managed Switch. Topics include: Management Access Overview SNMP Access Protocols 2.1 Management Access Overview You can access and manage the IC3624PWR Managed Switch using the following methods: Administration console Web browser interface External SNMP-based network-management application... -
Page 10: Chapter 3: Hardware Installation And Setup
Chapter 3: Hardware Installation and Setup This chapter describes the procedures for rack-mounting, connecting the cables, and powering up the IntraCore IC3624PWR PoE switch at your site. 3.1 Installation Overview 1. Follow these steps to install the IntraCore IC3624PWR PoE switch: 2. -
Page 11: Site Requirements
3.3 Site Requirements Consider the following site requirements for proper installation. 3.3.1 Environmental Requirements Choose a clean, dry, dust-free area location. Avoid direct sunlight, heat sources, or areas with high levels of electromagnetic interference. Failure to observe these limits may cause damage to the switch and may void the warranty. -
Page 12: Preparing For Installation
3.4 Preparing for Installation Switches can be mounted in a standard 19-inch equipment rack or on a flat surface. Follow these general precautions when planning your equipment locations and connections. The site needs the following: Centrally located to the devices you want to link Near a power outlet. -
Page 13: Installing The Switch
Antistatic mat or foam 3.6 Installing the Switch The switch can be mounted in a standard 19-inch equipment rack or place on a desktop or shelf. Mounting instructions for each type of site follow. 3.6.1 Mounting the Switch in a Rack When installing this unit in an empty rack, mount it at the bottom. -
Page 14: Applying Power
1. Attach the four adhesive feet to the bottom of the switch. 2. Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper airflow. 3. -
Page 15: Connecting To The Console Port
When attaching a workstation to the switch, a standard straight-through CAT5 cable may be used. 3.9 Connecting to the Console Port The DB-9 serial port located on the front panel is used to connect to the switch for out-of-band console configuration. The on-board configuration program can be accessed from a terminal or a PC running a terminal emulation program. -
Page 16: Chapter 4: Connecting Network Devices
Chapter 4: Connecting Network Devices The switch is designed to interconnect multiple segments (or collision domains). It can be connected to network cards in PCs and servers, and to hubs, routers, or other switches. 4.1 Twisted-Pair Devices Each device requires an unshielded twisted-pair (UTP) cable with RJ-45 connectors at both ends. Use Category 5 for 100BaseTX connections, and Category 3, 4 or 5 for 10BaseT connections. -
Page 17: Chapter 5: Configuring The Switch
Chapter 5: Configuring the Switch This chapter takes you through the steps required to initially connect the switch to a console, set up initial passwords, configure an IP address, and restore factory defaults. For complete information about configuring, monitoring, and maintaining your switch, refer to the System Management Guide. -
Page 18: Direct Access
5.2 Direct Access Direct access to the switch console is achieved by connecting the null-modem cable to the switch’s console port to a VT-100 or compatible terminal or to a PC, Apple Macintosh, or UNIX workstation equipped with a terminal-emulation program. -
Page 19: Initial Logon
Connection Settings The port settings are as follows: Baud Rate: 9600 Data Bits: Parity: None Stop Bits: Flow Control: None Enter the settings. Click OK. 5.3 Initial Logon The switch offers a Command Menu Interface (CMI), which is a menu-driven method for managing the switch, as well as a Command Line Interface (CLI), which uses text input to manage the switch. - Page 20 To use the arrow keys when attached to the User Interface using a Telnet Session, under the terminal pull down menu choose Properties and activate the VT100 Arrows option. IntraCore IC3624PWR Layer 2 PoE Switch with Dual Gigabit...
-
Page 21: Chapter 6: Using The Interface
Chapter 6: Using the Interface The main menu displays available sub-menus. The letter within square bracket of each menu option can be typed to directly choose that option. From the main menu there are seven menu items to choose from: General Information Basic Configuration Advanced Switch Configuration... -
Page 22: Advanced Switch Configuration
Administration Configuration IP Configuration SNMP Configuration Port Configuration System Security Forwarding DB SNTP Configuration ARP Table Quit to previous menu 6.3 Advanced Switch Configuration The Advanced Switch Configuration screen allows you to configure several advanced system-related settings. There are 10 submenus on the Advanced Switch Configuration screen. VLAN Management Link Aggregation Port Monitoring Configuration... -
Page 23: Save Configuration
6.6 Save Configuration Use this submenu to save the changed settings to the Flash memory after making any changes to the screens within the console interface. To save the configuration to Flash memory select Save Configuration and then press either ‘Enter’ or ‘Y’. 6.7 Run CLI Use this submenu to configure the switch using the command line interface (CLI). -
Page 24: Appendix A: Basic Troubleshooting
Appendix A: Basic Troubleshooting In the event the switch does not operate properly, follow the troubleshooting tips below. F you need more help contact Asante technical support at www.asante.com/support. A.1 Diagnosing Switch Indicators Refer to the following troubleshooting chart for information about the diagnostic LEDs. -
Page 25: Appendix B: Specifications
Appendix B: Specifications The sections below list the features and product specifications for the IntraCore IC3624PWR PoE switch. Refer to the IntraCore IC3624PWR Layer 2+ Power Over Ethernet with Dual Gigabit User’s Manual for a complete list of specification. Physical Characteristics Ports 24 10/100BaseTX with auto-negotiation 2 Combination Ports (RJ-45/SFP), 10/100/1000BaseT or 1000BaseX... -
Page 26: Appendix C: Cables And Pin Assignments
Appendix C: Cables and Pin Assignments This Appendix describes the information on 10BaseT/100BaseTX, 1000BaseT, and testing for existing Category 5 cables. C.1 Twisted-Pair Cable and Pin Assignments For 10BaseT/100BaseTX connections, a twisted-pair cable must have two pairs of wires. Each wire pair is identified by two different colors. -
Page 27: Straight-Through Wiring
Signal Name Transmit Data plus (TD+) Transmit Data minus (TD-) Receive Data plus (RD+) Receive Data minus (RD-) 4, 5, 7, 8 Note: The “+” and “-” signs represent the polarity of the wires that make up each wire pair. C.1.2 Straight-Through Wiring If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires must be straight-through. -
Page 28: Pin Assignments For 1000Baset Pin
EIA/TIA 568B RJ-45 Wiring Standard 10/100BASE-TX Crossover Cable End A C.2 Pin Assignments for 1000BaseT Pin All 1000BaseT ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. The table below shows the 1000BaseT MDI and MDI-X port pinouts. -
Page 29: Adjusting Existing Category 5 Cabling To Run 1000Baset
C.3.1 Adjusting Existing Category 5 Cabling to Run 1000BaseT If your existing Category 5 installation does not meet one of the test parameters for 1000BaseT, follow these measures to correct the problem: Replace any Category 5 patch cables with high-performance Category 5e or Category 6 cables. Reduce the number of connectors used in the link. -
Page 30: Appendix D: Fcc Compliance And Warranty Statements
Appendix D: FCC Compliance and Warranty Statements D.1 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 31: Intracore Warranty Statement
SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE. Asante will be liable for damage to tangible property per incident up to the greater of $10,000 or the actual amount paid for the product that is the subject of the claim, and for damages for bodily injury or death, to the extent that all such damages are determined by a court of competent jurisdiction to have been directly caused by a defective Asante product. -
Page 32: Appendix E. Online Warranty Registration
Appendix E. Online Warranty Registration Please register the switch online at www.asante.com/support/warranty/index.html. By doing so, you’ll be entitled to special offers, up-to-date information, and important product bulletins. IntraCore IC3624PWR Layer 2 PoE Switch with Dual Gigabit...
