INSTALLATION

Prepare Radio

1. Before you begin, disconnect the battery negative terminal.
2. Remove the transport screws.
3. Remove chassis from the mounting sleeve.

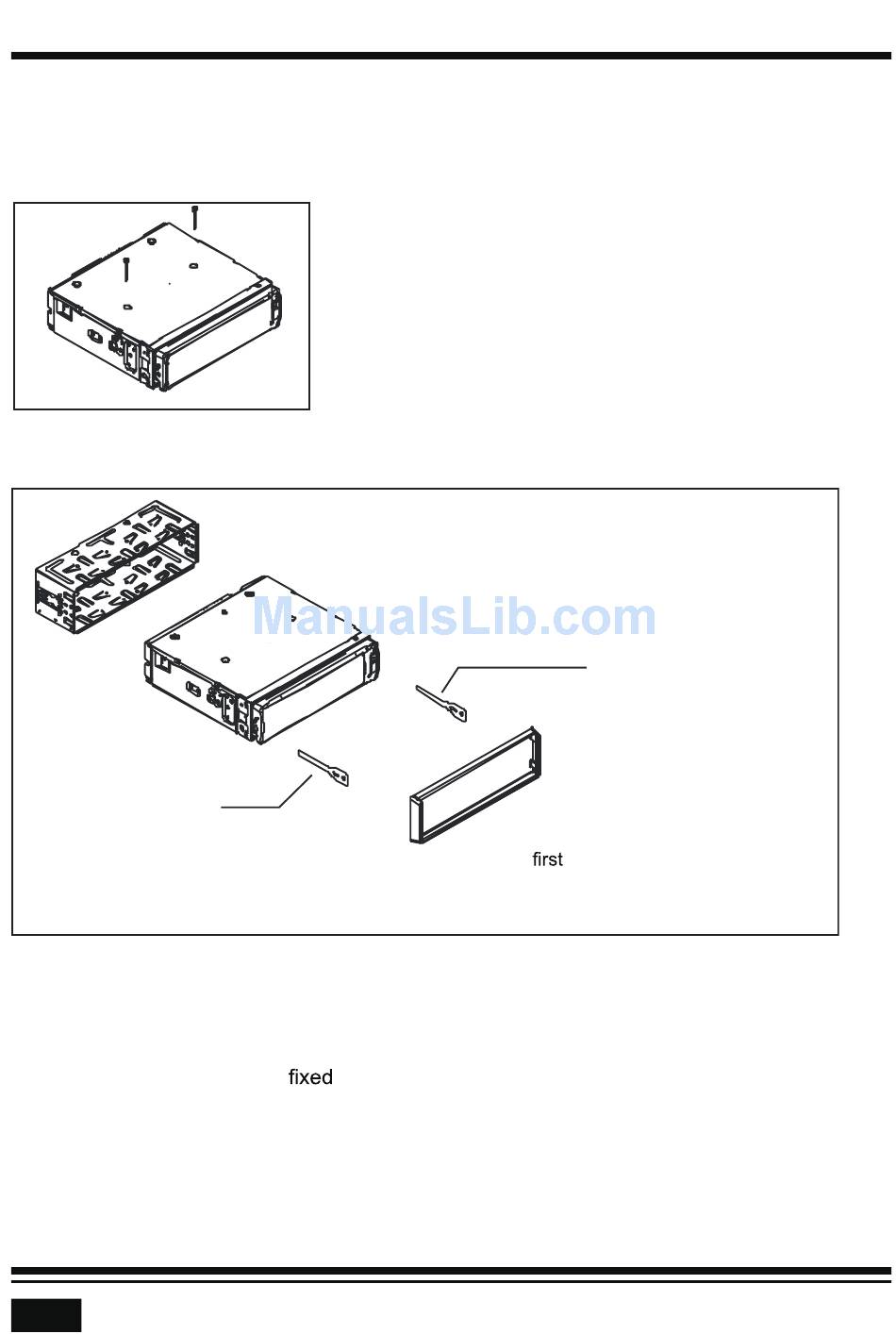

BRACKET KEY
If you want to remove the chassis from the mounting sleeve,
from both sides. Next, insert the two bracket keys into the left and right side of the chassis, as
illustrated, to separate the chassis from the housing.

Mount Radio

Refer to the "Installation Diagram" to install the unit.
1. Bend the tabs on the mounting sleeve, where necessary, to ensure than the front part of
the main unit will remain
2. Insert radio into the mounting sleeve.
3. Use a metal strap to secure the rear part of the chassis using the hardware indicated.
4. Make wiring connections, as illustrated in the "Wiring Diagram."
5. Install the plastic trim out.
2
into the vehicle dash opening.
BRACKET KEY
PLASTIC TRIM OUT
remove the plastic trim out
