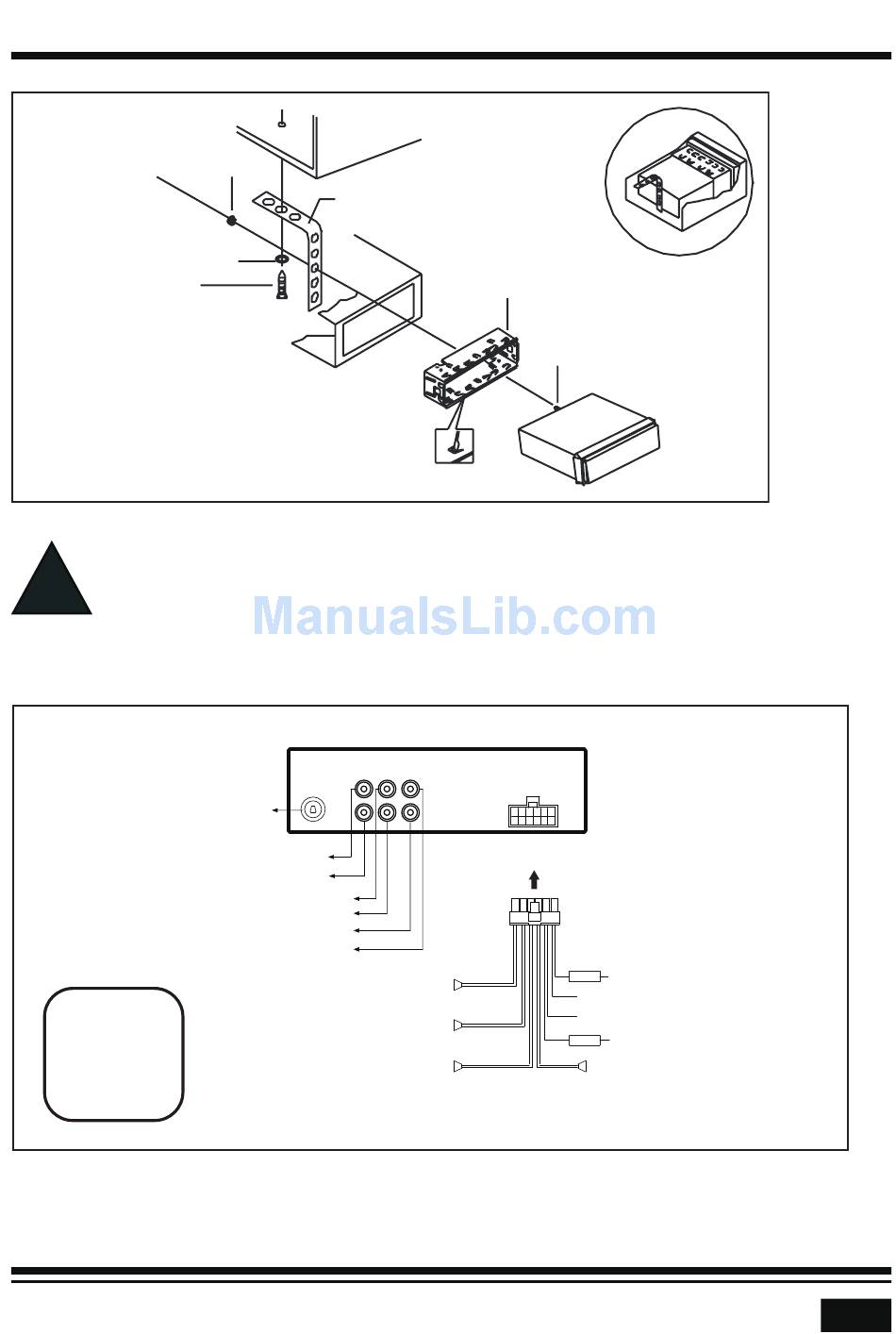

INSTALLATION (CONT.)
INSTALLATION
DIAGRAM
HEX NUT
PLAIN WASHER
TAPPING SCREW
- Only use speakers with 4 ohms impedance.
!
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.

Wiring Connections

WIRING
DIAGRAM
Radio Antenna Socket
CAUTION
+12V DC
NEGATIVE
GROUND
METAL MOUNTING STRAP
AUX-Left input
AUX-Right input
White: Front Left CH RCA Outpu t
Red: Front Right CH RCA Output
Red: Rear Right CH RCA Output
White: Rear Left CH RCA Output
Rear Right Speaker
Front Right Speaker
Front Left Speaker
DASH BOARD
CONSOLE
MOUNTING SLEEVE
Purple +
Purple/Black -
Gray +
Gray/Black -
White +
White/Black -
HEX BOLT
Fuse
Power B+ ( Yellow)
15A
GND - (Black)
ANT + (Blue)
Fuse
ACC + (Red)
0.5A
Green +
Rear Left Speaker
Green/Black -
3
