Exposure 2010S Quick Start Manual

high fidelity engineering
since 1974
Integrated
Amplifier
Quick Start Manual
Thank you for purchasing the Exposure 2010S Integrated Amplifier.
Mains cable HS-101 Exposure System remote control
(batteries included)
Ensure your unit is switched off and that the volume
control knob is at its minimum.
Please note that your 2010S Integrated Amplifier
may take up to 48 hours to "run-in" before reaching
its optimal performance. Each subsequent "run-in"
will then take about 30 minutes.
The Exposure 2010S Integrated Amplifier is fitted
with an over current sensor which will switch off the
speaker output in the event of a speaker wire short
circuit or excessive current. To reset the output,
switch off the Amplifier for 5 minutes.
For optimum performance,
use Exposure speaker cables with your Exposure equipment.
1
Installation

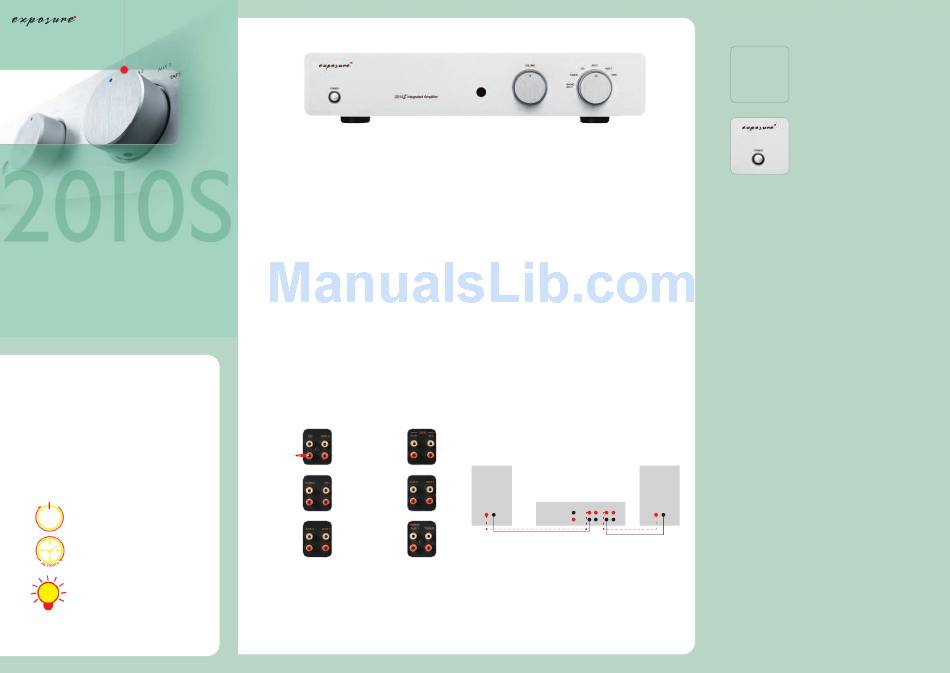

The Exposure 2010S Integrated Amplifier : Front View
a) Turn volume control
to minimum before
connecting or
disconnecting any
cables.
2
CD Player/Tuner/Tape/DVD/etc Connections
The Exposure 2010s Integrated Amplifier is fitted with six-line level RCA Phono inputs, suitable for connection of CD players, tuners, recorders,
DVD players and other source components.
The Exposure 2010S Integrated Amplifier: Back View
Ground Terminal
Input
a) Connect RCA Phono cables from source components (CD Player/
Tuner/Tape/DVD/etc) to the respective inputs.
b) Ensure left and right channels are connected correctly. (Right channel
is marked in red)
c) The tape input is labeled TAPE PLAY.
Turntable connection requires the installation of an optional MM or MC
Phono Card. A ground terminal is provided for connection to a turntable
arm grounding wire or RCA ground wire only.
b) Connect the mains c) Connect to the mains
cable to the IEC outlet on the wall.
mains input socket. DO NOT switch on
until all input and
output connections
are made.
Output
TAPE REC provides line level output signals for recording.
PRE OUT provides left and right channel output signals appropriate
for connection to an Exposure 2010S Power Amplifier
(a future-proof upgrade).
3
Loudspeaker Connections
Right Speaker
Rear of exposure 2010S Integrated Amplifier
+ - Preout Left
SPK1 SPK2
+ +
- -
a) Connect left and right loudspeakers to corresponding left and right
speaker outputs on the amplifier.
b) Connect (+) terminal of loudspeaker to (+) terminal of the amplifier.
c) Connect (-) terminal of loudspeaker to (-) terminal of the amplifier.
Bi-wired connection
Bi-wiring may provide a useful gain in subjective performance. Should you choose
this option, please refer to the "Extended Set-Up" instructions overleaf.
Bi-amping of Loudspeakers
Bi-amping of loudspeakers using a 2010S Integrated and a 2010S Power Amplifier
provides a useful gain in subjective performance. For this operation, please refer
to the "Extended Set-Up" instructions overleaf.
4
Operation
a) Turn amplifier volume control to minimum.
b) Press power switch. The LED power indicator
will light up. The pre-amplifier output relay will
click after a 6-second delay, together with the
other indicator lights on Volume and Input
Selector Knobs.
c) Without playing any CD/Tape/DVD/etc, turn
the volume control knob slowly clockwise to
around 20%. It is normal to hear a faint hiss.
d) Turn the source selection knob to select a live
source component (Phono Aux1/Tuner/CD/
Aux2/Aux3/Tape). Audio should now be heard
when the source component is played.
5
Remote Control
The source selection knobs will rotate to match selections made on
remote control.
Left Speaker
+ -
Installation of a MC or MM Phono Module.
For details, please refer to the "Extended Set-Up" section overleaf or
contact your dealer.
