Exposure XXVIII Quick Start Manual

Thank you for buying the Exposure Dual Mono Power
Amplifier XXVIII, designed to deliver optimal
performance to enhance your musical enjoyment.
Before you start
Contents:
Exposure Dual Mono Power Amplifier XXVIII
Mains cable
Ensure that the unit is switched off and the
volume control on the system's integrated
amp or pre-amp is set at its minimum.
Please note that your Exposure Dual Mono
Power Amplifier XXVIII may take up to 48
hours to "run-in" before reaching its optimal
performance. Each subsequent "run-in" will
then take about 20 minutes.
1
Installation

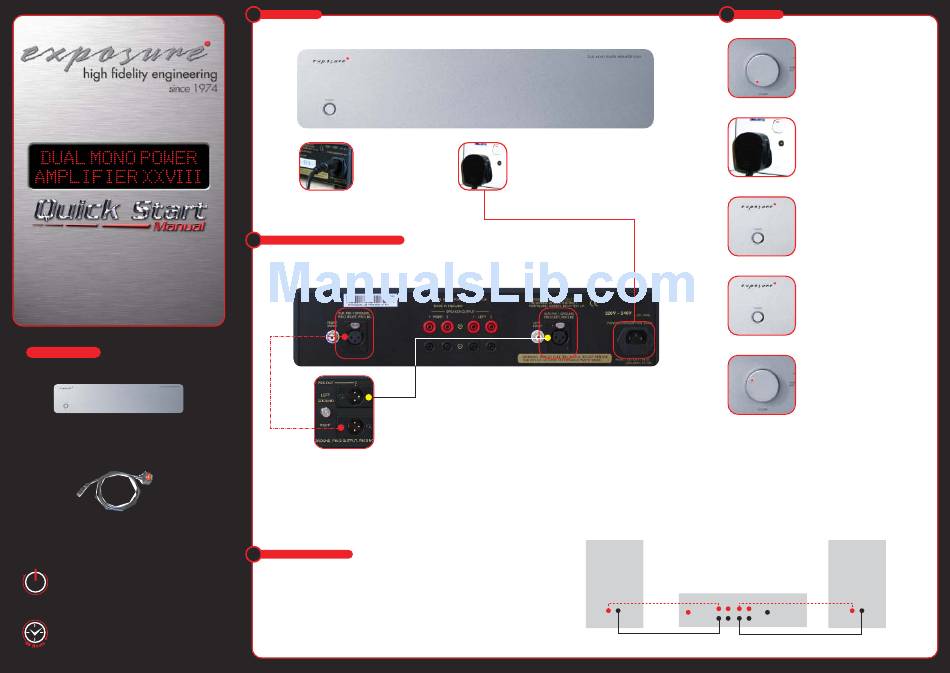

The Exposure Dual Mono Power Amplifier XXVIII: Front View
a) Connect the mains
cable to the IEC
mains input socket.
2 Pre-Amp/Integrated Amp Connection
Your Exposure Dual Mono Power Amplifier XXVIII Amplifier is equipped with a stereo pair of
high level RCA phono sockets.
The Exposure Dual Mono Power Amplifier XXVIII: Back View
If your Exposure Dual Mono Power Amplifier XXVIII Amplifier is used
with a matching Exposure XXIII Pre-Amplifier:
a)Connect cables from XLR sockets to the PRE-OUT sockets of
b)Ensure left and right channels are connected correctly.
If your Exposure Dual Mono Power Amplifier XXVIII Amplifier is used
with an integrated amp:
a)Connect cables from RCA Phono inputs of power amp to the
b)Ensure left and right channels are connected correctly.
3
Loudspeaker Connection
a)Connect the left and right loudspeakers to the corresponding left and right speaker
outputs of your Exposure Dual Mono Power Amplifier XXVIII.
b)Connect the (+) terminal of the loudspeaker to the (+) terminal of the power amp.
c) Connect the (-) terminal of the loudspeaker to the (-) terminal of the power amp.
b) Connect to the mains
outlet on the wall.
DO NOT switch on
until all input and
output connections
are made.
the pre-amp.
PRE-OUT sockets of pre-amp/integrated amp.
(Right channel is marked in red)
Right Speaker
+
4
Operation
For details on bi-wiring and/or bi-amping of loudspeakers,
please refer to the Extended Set-up section overleaf.
Rear of Exposure XXVIII Dual Mono Power Amplifier
-
Right Left
+
-
a)Turn amplifier volume control to
minimum.
b)Connect the mains plug to the
mains wall socket.
c) Press power switch of
pre-amplifier.
d)Press power switch of power
amplifier. The LED power indicator
will light up.
e)Without playing any CD/Tape/Disc,
turn the volume control knob slowly
clockwise to around 30%. You
should only hear a faint hiss.
Left Speaker
+ -
