Exposure 3010 Quick Start

H i gh f i del i ty engi neering
3010
EXPOSURE Power Amplifier
Thank you for buying the Exposure 3010 Power Amplifier,
d e s i g n e d t o e n h a n c e y o u r m u s i c a l e n j o y m e n t .
Before you start
Contents:
1) Exposure 3010 Power Amplifier
2) Mains Cable
• Ensure that your unit is switched off and that the
volume control on the system's integrated amp or
pre-amp is set at its minimum.
• Please note that your Exposure 3010 Power Amplifier
may take up to 48 hours to "run-in" before
reaching its optimal performance. Each subsequent
48hr!
"run-in" will then take about 20 minutes.
Note: The Exposure 3010 Power Amplifier has a heat
sensor which will automatically switch off the power
amplifier section when an abnormally high
temperature is reached. To reset the output, switch
off the amplifier and allow to cool for 10 to
15 minutes.
1
Installation

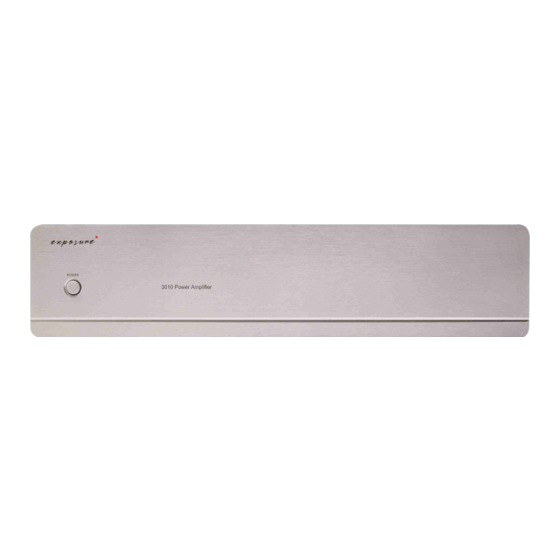

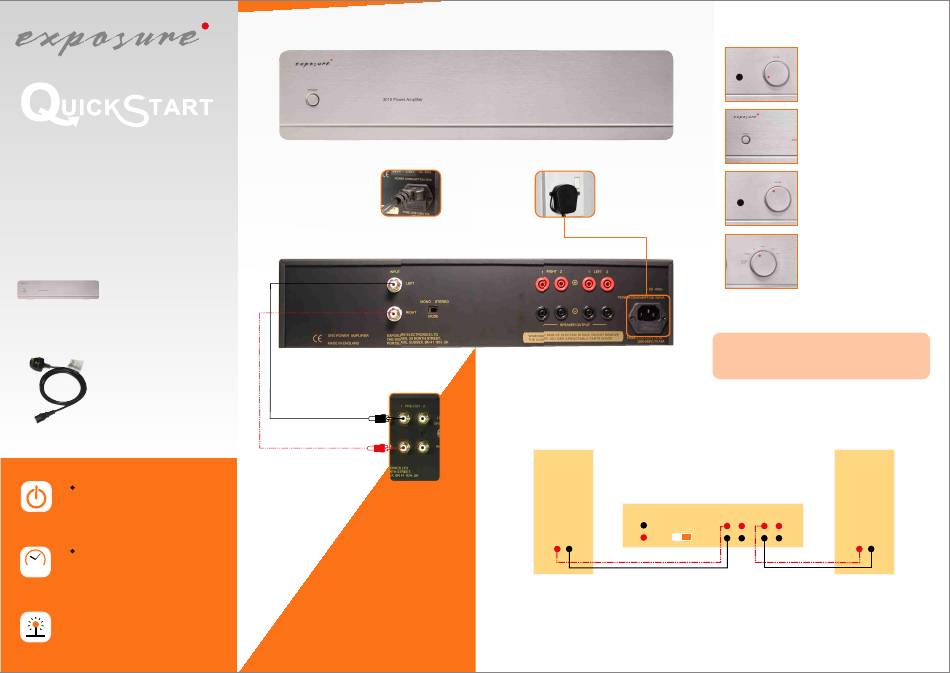

Exposure 3010 Power Amplifier: Front View
Exposure 3010 Power Amplifier: Back View
2
Pre-Amp/Integrated Amp Connection
a) Connect cables from RCA Phono inputs of power amp to the PRE-OUT
sockets of pre-amp/integrated amp.
b) Ensure left and right channels are connected appropriately. (Right channels
are marked in red)
c) If the Power Amplifier is used in mono mode, only the left input sockets
should be used. See section on Operational Modes in "Extended Set-Up"
overleaf for further details.
a) Connect the b) Connect to the
mains cable to the mains outlet on
IEC mains input the wall. DO NOT
socket. switch on until all
output connections
are made.
3

Loudspeaker Connection

RIGHT SPEAKER
+ -
a) Connect left and right loudspeakers to corresponding left and right speaker
outputs on amplifier.
b) Connect (+) terminal of loudspeaker to (+) terminal of the amplifier.
c) Connect (-) terminal of loudspeaker to (-) terminal of the amplifier.
4
Operation
a) Turn the Integrated Amplifier or
b) Press power switch. The LED power
c) Without playing any CD Player/Tuner
d) Select a live source component (CD/Player
e) Audio should now be heard when the
Bi-wiring
Bi-wiring may provide a useful gain in subjective performance. Should you
choose this option, please refer to the "Extended Set-Up" section overleaf for
detailed instructions.
BACK VIEW OF 3010 POWER AMPLIFIER
LEFT
INPUT RIGHT
SPK 1 SPK 2 SPK 1 SPK 2
+ +
- -
pre-amplifier volume control to minimum.
indicator will light up.
/Tape/Disc Recorder/Turntable
/Video Player, turn the volume control knob
slowly clockwise to around 30%. You
should only hear a faint hiss.
/Tuner/Tape/Disc Recorder/Turntable
/Video Player) on the system's integrated
amplifier or pre-amplifier.
source component is played.
LEFT SPEAKER
+ -
