Exposure 5010 Manual

5010
Mono Power Amplifi er
Quick Start Manual
Thank you for purchasing the Exposure 5010 Mono Power Amplifi er
www.exposurehifi .com
Contents & before you start
Please check the contents in the box:
5010
Mono Power Amplifi er
Mains Cable
Before you start
Ensure your unit is switched off and that
the volume control knob on the Pre
Amplifi er or Integrated Amplifi er is at it's
minimum.
Please note that your 5010 Mono Power
Amplifi er may take up to 48 hours to
'run-in' before reaching it's optimal
performance.
Each subsequent 'run-in' will then take
about 20 minutes.

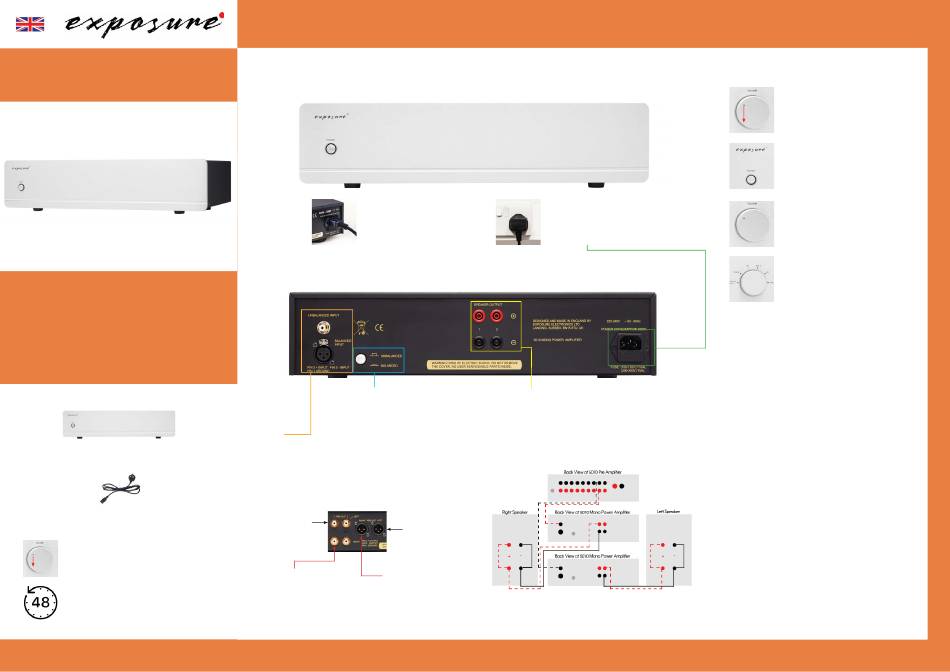

1 Installation

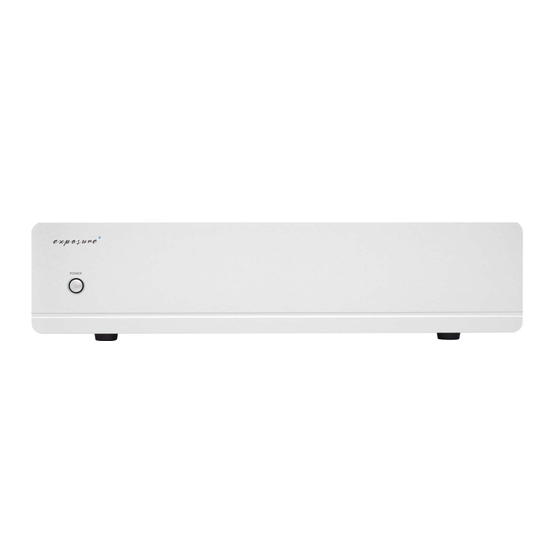

5010 Mono Power Amplifi er : Front View
1. Connect the mains
cable to the IEC mains
input socket.
2 Source Component Connections
5010 Mono Power Amplifi er : Back View
UNBALANCED/BALANCED BUTTON
Push the unbalanced/balanced
button to select the desired input.
INPUTS
Connect the RCA phono input OR the balanced XLR input of
the 5010 Mono Power Amplifi er to the PRE-OUT sockets of the
Pre Amplifi er or Integrated Amplifi er.
Ensure the left and right channels are connected
appropriately, see diagram below:
5010 Pre Amplifi er
To 5010 Mono To 5010 Mono
Power Amplifi er Power Amplifi er
unbalanced left balanced left
input input
To 5010 Mono Power To 5010 Mono Power
Amplifi er unbalanced Amplifi er balanced
right input right input
2. Connect to the mains
outlet on the wall. DO
NOT switch on until
all output connections
are made.
SPEAKER OUTPUT
Connect the left and right loudspeakers to the corresponding
left and right speaker outputs :
1. Connect the (+) terminal of the loudspeaker to the (+)
terminal of the 5010 Mono Power Amplifi er.
2. Connect the (-) terminal of the loudspeaker to the (-)
terminal of the 5010 Mono Power Amplifi er.
PREOUT
Spk
INPUT
1 2
High Frequency High Frequency
Spk
Low Frequency INPUT Low Frequency
1 2
Unbalanced connection is shown above.
Only use the unbalanced OR the balanced inputs, DO NOT use
both at the same time.
3 Operation
1. Turn the Pre Amplifi er or Integrated
Amplifi er volume control to
minimum.
2. Press the power switch on. The LED
power indicator will light up. The
output relay will activate after a
short delay.
3. Without playing any source, turn
the volume control knob slowly
clockwise to around 20%. You
should only hear a faint hiss.
4. Turn the source selection knob for
the desired input source, indicated
by the LED.
Sound should now be heard when the
input source is played.
Loudspeaker Compatibility
Although the 5010 Mono Power Amplifi er is able to drive
almost any loudspeaker system, the best results will most
likely be achieved with speakers rated at 8 Ohms. For
loudspeakers rated below 4 Ohms please ensure adequate
ventilation.
Speaker Cable Compatibility
While the 5010 Mono Power Amplifi er is compatible with
most types of loudspeaker cables, the type of cables
used can infl uence the sonic performance of your system.
Please ask your dealer for advice on loudspeaker cable
compatibility and how to get the best from your 5010 Mono
Power Amplifi er.
Note : The 5010 Mono Power Amplifi er is internally protected
against damage from short circuits. However, no such
protection is infallible, and damage may occur if positive
and negative speaker cables are inadvertently connected
together.
Bi-wiring
Bi-wiring may provide a useful gain in subjective
performance. Should you choose this option, please refer
to the "Extended Set-Up" section overleaf for detailed
information.
