Exposure 3010S Quick Start Manual

high fidelity engineering
since 1974
Power
Amplifier
Quick Start Manual
Thank you for buying the Exposure 3010S Power Amplifier.
Before you start
Contents:
Exposure 3010S Power Amplifier
Mains cable
Ensure that your unit is switched off and that the vol-
ume control on the pre-amplifier or integrated ampli-
fier is at its minimum.
Please note that your Exposure 3010S Power Ampli-
fier may take up to 48 hours to "run-in" before reach-
ing its optimal performance. Each subsequent "run-in"
will then take about 20 minutes.
The Exposure 3010S Power Amplifier has a heat sen-
sor which will automatically switch off the power am-
plifier section when an abnormally high temperature
is reached. To reset the output, switch off the amplifier
and allow to cool for 10 to 15 minutes.
For optimum performance,
use Exposure speaker cables with your Exposure equipment.
1

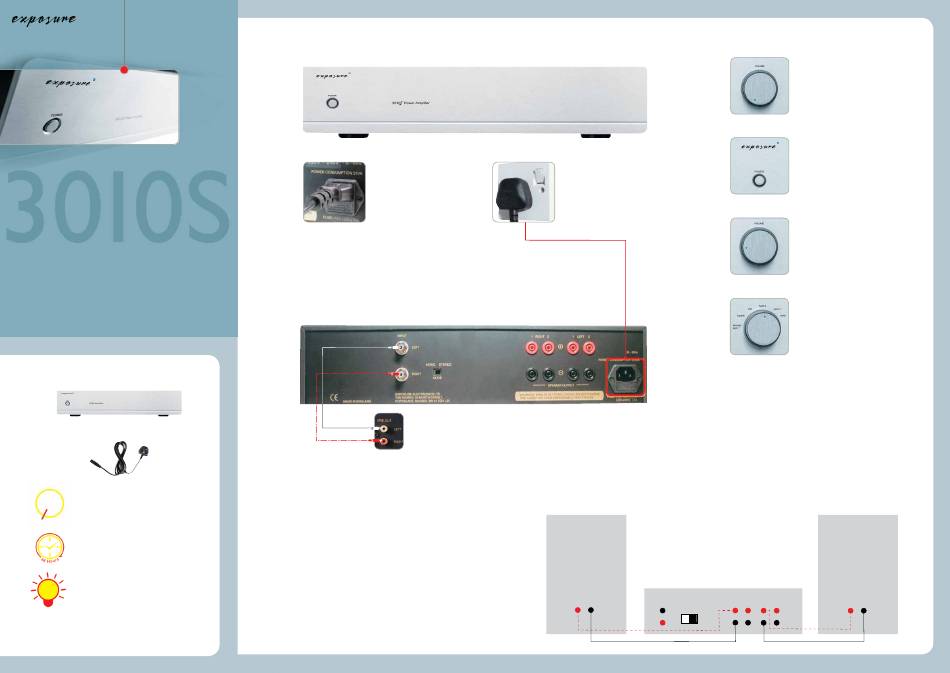

Installation

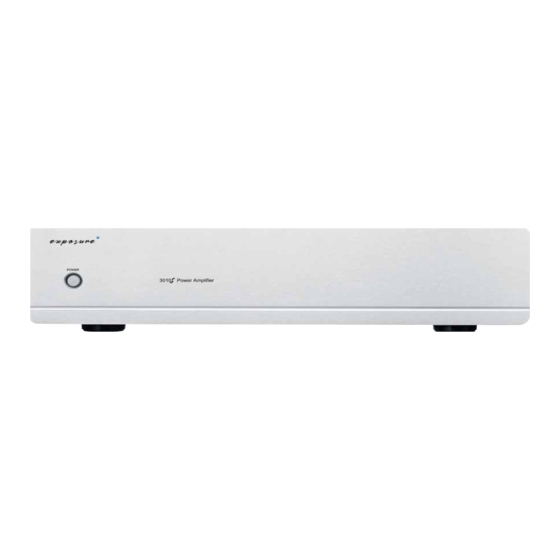

The Exposure 3010S Power Amplifier : Front View
a) Connect the mains
cable to the IEC
mains input socket.
2
Pre-Amp/Integrated Amp Connection
Your Exposure 3010S Power Amplifier is equipped with a pair of RCA phono input sockets.
The Exposure 3010S Power Amplifier : Back View
a) Connect cables from RCA Phono inputs of power amp to the PRE-OUT sockets of
pre-amp/integrated amp.
b) Ensure left and right channels are connected appropriately. (Right channel are marked
in red)
3
Loudspeaker Connection
a) Connect left and right loudspeakers to corresponding left and right speaker outputs amplifier.
b) Connect (+) terminal of the loudspeaker to (+) terminal of the amplifier.
c) Connect (-) terminal of the loudspeaker to (-) terminal of the amplifier.
4
b) Connect to the mains
outlet on the wall. DO
NOT switch on until all
output connections
are made.
Bi-wiring
Bi-wiring may provide a useful gain in subjective performance. Should you
choose this option, please refer to the "Extended Set-Up" section overleaf
for detailed instructions.
Right Speaker
Back View of 3010S Power Amplifier
INPUT
Right
+ -
SPK1 SPK2
STEREO
L
R
Operation
a) Turn the Integrated Amplifier or pre-amplifier
volume control to minimum.
b) Press power switch. The LED power indicator
will light up.
c) Without playing any CD Player/Tuner/Tape/
Disc Recorder/Turntable/Video Player, turn
the volume control knob slowly clockwise to
around 30%. You Should only hear a faint hiss.
d) Select a live source component (CD Player/
Tuner/Tape/Disc Recorder/Turntable/Video
Player) on the system's integrated amplifier or
pre-amplifier.
e) Audio should now be heard when the source
component is played.
Left Speaker
Left
+ -
SPK1 SPK2
+
-
