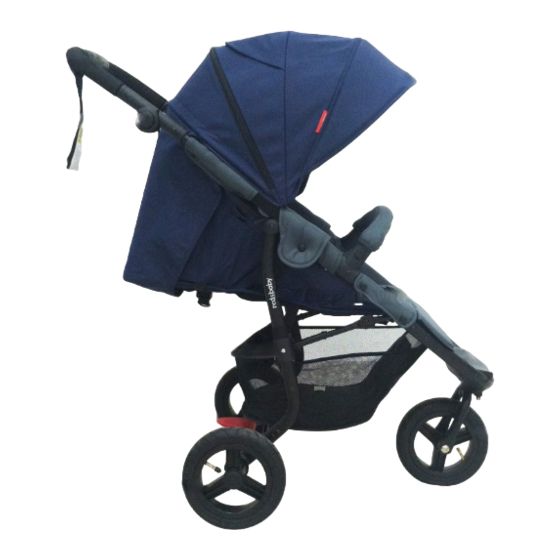

Redsbaby Move
®
Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Move and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redsbaby Move

Summary of Contents for Redsbaby Move

  • Page 1 Redsbaby Move ® Instruction Manual...

  • Page 2: Table Of Contents

    Locking the front swivel wheel Adjusting the handle Using the 5-point safety harness Reclining the seat Using the tether strap Lifting and carrying your Redsbaby Move safely Accessories – Assembly and Use Rain cover Reversible Seat Liner Foot Cover Product Care...

  • Page 3: General Instructions

    Please read thoroughly before commencing assembly and use of your Redsbaby Move. Incorrect assembly and use can be dangerous and result in serious injury or even death. There may be slight variations in the design of your product to that shown...

  • Page 4: Warranty Information

    Warranty information 12 Month Warranty The Redsbaby Move and its accessories come with a 12 Month Warranty to cover against faults in materials and workmanship when your products are used under normal conditions, according to our user manuals and technical specifications.
  • Page 5 How To Make A Warranty Claim Send an email to info@redsbaby.com.au to notify us of your warranty claim. To validate your warranty claim we will require you to include in your email: - a description of the warranty defect including photographs;...

  • Page 6: Warnings And Safety Precautions

    • Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on the Redsbaby Move. • Make sure children are clear of any moving parts if you adjust the Redsbaby Move, otherwise they may be injured.
  • Page 7 • Do not use or leave the Redsbaby Move near open fire or exposed flame. • Brakes must always be applied when the Redsbaby Move is not moving. GENERAL SAFETY PRECAUTIONS: • When the vehicle is being folded and unfolded, there is potential for fingers or parts of the body to be injured and due care should be exercised.

  • Page 8: Features And Components

    Features and components 1. Fold lock 7. Bumper bar 2. Handle 8. Frame 3. Frame fold latch 9. Foot rest 4. Brake 10. Basket 5. Rear wheels 11. Front swivel wheel 6. Canopy...

  • Page 9: Assembly Instructions

    Assembly instructions Frame To release the frame from the folded position: 1. Position yourself behind the stroller. 2. Release the frame fold latch located on the right hand side of the stroller frame. 3. Gently lift the stroller frame by holding the frame on both sides, continuing until the frame locks into place.

  • Page 10: Rear Wheels

    WARNING: • Do not use this seat with any other models of pram/stroller. • This seat is only approved for use with model: Redsbaby Move. • The maximum weight of a child that can be carried in this seat: 25kgs.

  • Page 11: Basket

    • Do not exceed the weight limit. Overloading the shipping basket may result in damage to the basket and your stroller. Note: Your Redsbaby Move will come with the basket assembled. 1. Fold the sides of the fabric basket over the basket rods at the front and back of the basket frame.

  • Page 12: Using Your Redsbaby Move

    Safe lifting and carrying of the Redsbaby Move frame when folded IMPORTANT: Do not lift or carry the Redsbaby Move when a child is in it. IMPORTANT: Do not lift or carry the Redsbaby Move when fully assembled.

  • Page 13: Engaging And Releasing The Brake

    1. To engage the brake, press down on the red brake paddle at the rear of the Redsbaby Move with your foot until you feel and hear a ‘click’. 2. To release the brake, lift the red brake paddle up with your foot until the brake lock disengages.

  • Page 14: Reclining The Seat

    1. Ensure the seat is assembled correctly by following steps on page 2. Ensure the seat bottom is sitting flat on the seat. 3. Slide the shoulder strap clip (A1) onto the waist strap clip (B1) and clip into the center buckle (C). 4.

  • Page 15: Using The Tether Strap

    Move. Lifting and carrying the Redsbaby Move safely IMPORTANT: Do not lift or carry the Redsbaby Move when a child is in it. IMPORTANT: Do not lift or carry the Redsbaby Move when fully assembled. Only lift and carry when folded. For folding instructions, refer...

  • Page 16: Accessories - Assembly And Use

    Redsbaby Move. Do not use with any other model of vehicle. Rain Cover Note: Accessory sold separately Note: The canopy must be attached to the Redsbaby Move and fully opened before securing the rain cover. Starting at the back of the canopy, gently pull the rain cover over the stroller and secure the Velcro tabs at the bottom around the frame.

  • Page 17: Product Care

    • Store the Redsbaby Move in a dry, well-ventilated and safe place. • Do not use your Redsbaby Move if any screws are loose or missing or if any component is damaged.
  • Page 18 YOUR REDSBABY MOVE ‘Redsbaby’ is a registered Trademark of Redsbaby Pty Ltd. ABN 31 167 364 178. ©Copyright 2013-2015 Redsbaby...
