Revolabs FLX2 Quick Setup Manual

Revolabs FLX2
Congratulations on your purchase of the Revolabs FLX2
VoIP Conference phone. This system utilizes state of the art technology providing high bandwidth audio and
enabling clear, reliable, untethered communications with your telephone, PC, mobile device, and video
conferencing system.
The Revolabs FLX2 Conference Phone provides enhanced freedom for telephone and video conferences by
allowing independent locations of the microphones and the speaker during the call.

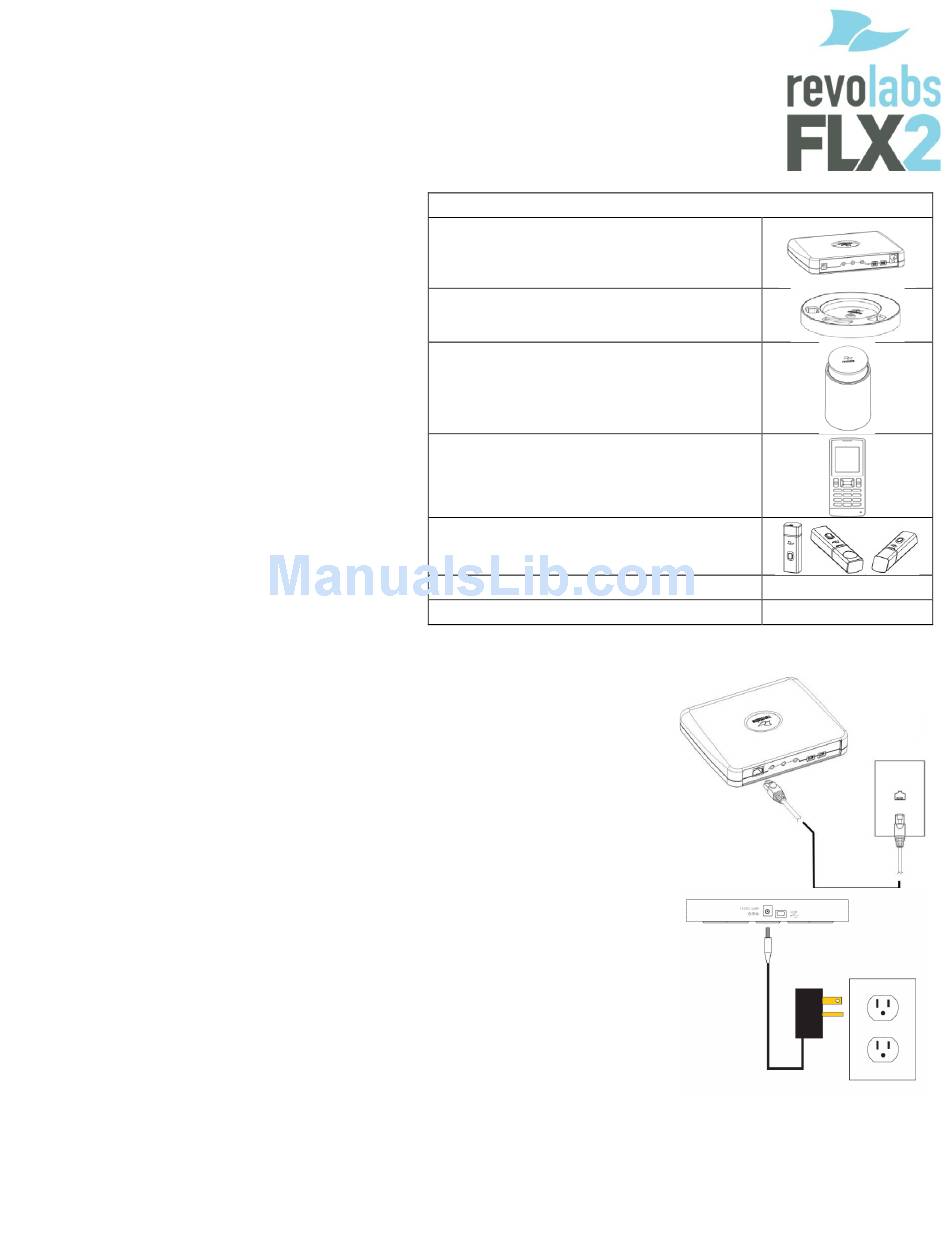

Unpacking

Your Revolabs FLX2™ Conference Phone package
contains the following items. When unpacking the
system be sure to take inventory of all parts to ensure
that nothing is missing. If parts are missing, please
contact your retailer.
Revolabs FLX2 Conference Phone components are
partially charged. Please charge the Speaker, the
Microphones, and the Dialer for at least 8 hours or
overnight before using the system.

Connecting the Base Station

Place the Base Station close to the Ethernet outlet you want to use for the conference
phone. Connect the Base Station to the network using the provided Ethernet cable. The
Base Station is powered using Power over Ethernet (PoE). This requires your Ethernet
outlet to provide PoE. Please check with your IT department that PoE is available. If
the base station does not power up after you connect it to the network outlet, this outlet
might not be providing PoE.
If your network does not support PoE, please contact your reseller. Revolabs provides a
power injector that can be bought through your reseller, which adds the necessary
power to that Ethernet connection.

Connecting the Charger Base

Place the Charger Base at a location where you can easily access the Microphones and
the Speaker for your conference calls, e.g. on a side board, a desk, or the conference
table.
Connect the Charger Base to the power outlet using the provided 12-15V power supply.
Place the Speaker, the Microphones, and the Dialer in the respective openings of the
Charger Base to charge them.
The Dialer and Speaker will automatically connect to the Base Station after a short time
if it is powered up. You will hear a confirmation chime from the Speaker once the
system is ready for use. The Microphones only connect when taking out of the Charger
Base, or if the multi-function button is pressed while in the Charger Base. If the Speaker
or the Dialer are not powered up, take them out of the Charger Base for a few seconds
and put them back in. This will switch on the component.

Connecting to the VoIP PBX

Depending on your switch different settings will be required for your FLX to work in your environment. First of all, the FLX will
require an IP address. The IP address can either be obtained from a DHCP server in your network, or be statically set on the
phone. The phone is preset to DHCP. If you want to change this, please open the menu on the handset by pressing the right
soft key, go to the 'Setup' menu, and select 'Advanced Setup'. You will have to enter a password, which is preset to 7386.
Now select 'Network Settings'. Under 'IP Settings' you can set the required network values like IP address, subnet mask,
Default Gateway, and DNS servers. You will need to restart the phone for any changes you made in this section to take effect.
TM
VoIP – Quick Setup Guide
TM
VoIP Wireless Conference Phone, the first wireless
FLX2 Base Station
FLX2 Charger Base
FLX Speaker
FLX Dialer
2 FLX Microphones (lapel – omni –
directional microphone shown)
12-15V AC adapter for the Charger Base
RJ45 Ethernet Cable

Contents
