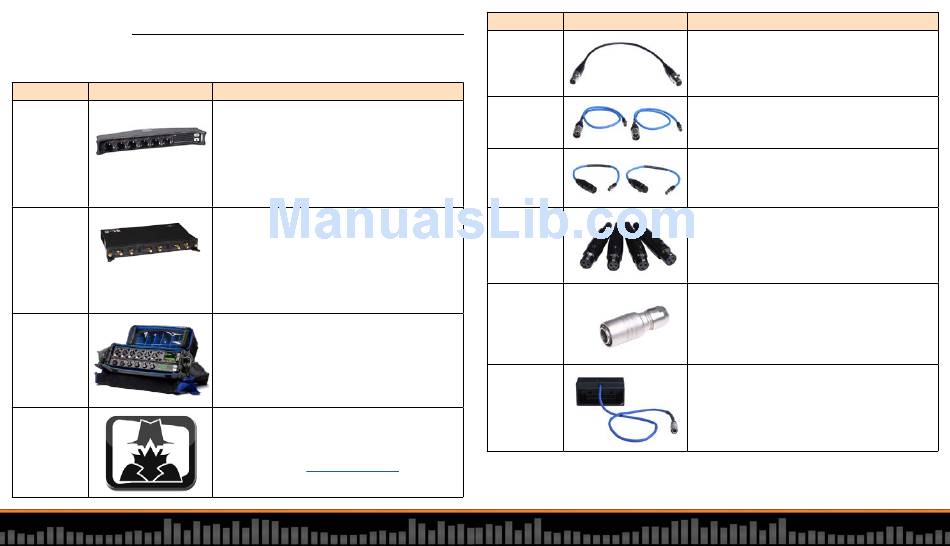

Accessories
The 688 works with various accessories which may be purchased separately and used to further
enhance your field mixing and recording experience.
aCCESSORy PHOtO
CL-6
SL-6
CS-664
Wave Agent
688 Mixer & Recorder
14
DESCRiPtiOn
This optional input controller attaches to the bottom
of the 688 and adds six full-sized tactile fader
controls, sunlight-viewable LED metering and big,
back-lit Record and Stop controls. When the CL-6 is
attached to a 688, the 688's mini-faders, originally
assigned as faders for 7-12, switch to control trim
levels of 7-12, and the CL-6 faders control fader levels
of 7-12.
This optional powering and wireless system simplifies
interconnection and provides better control, display
and navigation of the user interface for SuperSlot-
compatible wireless receivers. It also provides a USB
charging port, two 12 V isolated outputs, and two non-
isolated direct battery outputs for powering additional
devices, along with PowerSafe for the receivers.
(Wireless receivers are not included.)
This production case (designed by CamRade for
Sound Devices) may be used for either the 688 or
664 and one attached accessory, such as the SL-6
or CL-6 (pictured here with the 688). Case has a
detachable accessory compartment and a battery
compartment for NP-type batteries on the bottom.
(Strap sold separately.)
Sound Devices Wave Agent, a file librarian for
computers, provides a comprehensive range of tools
for preparing audio files for problem-free passage
through complex production workflows. For more a
free download, visit www.waveagent.com.
aCCESSORy PHOtO
XL-1B
XL-2
XL-2F
XL-4
XL-H
XL-NPH
DESCRiPtiOn
A 12-inch TA3-F to TA3-F cable, used to connect TA3
auxillary outputs to TA3 inputs of receiving devices.
A 25-inch TA3-F to XLR-3M cable, used to connect the
TA3 auxillary outputs to third-party devices with XLR-
3F inputs. Each package contains two cables.
A 25-inch XLR-3F to TA3-F cable, used to connect
mixers and other devices with XLR-3M outputs to the
TA3 7-12 inputs on the 688. Each package contains
two cables.
Bag of four (4) TA3-F-type connectors.
Bare Hirose 4-pin locking DC connector (HR10-7P-4P).
An NP-type battery cup with 24-inch cable terminated
in Hirose 4-pin locking DC connector (HR10-7P-4P).
Quick Start Guide
