302
Compact Production Mixer
User Guide and Technical Information
Sound Devices, LLC
E7556 State Rd. 23/33 • Reedsburg, WI • USA
+1 (608) 524-0625 • fax: +1 (608) 524-0655
Toll-Free: (800) 505-0625
www.sounddevices.com
support@sounddevices.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 302 and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Devices 302

Summary of Contents for Sound Devices 302

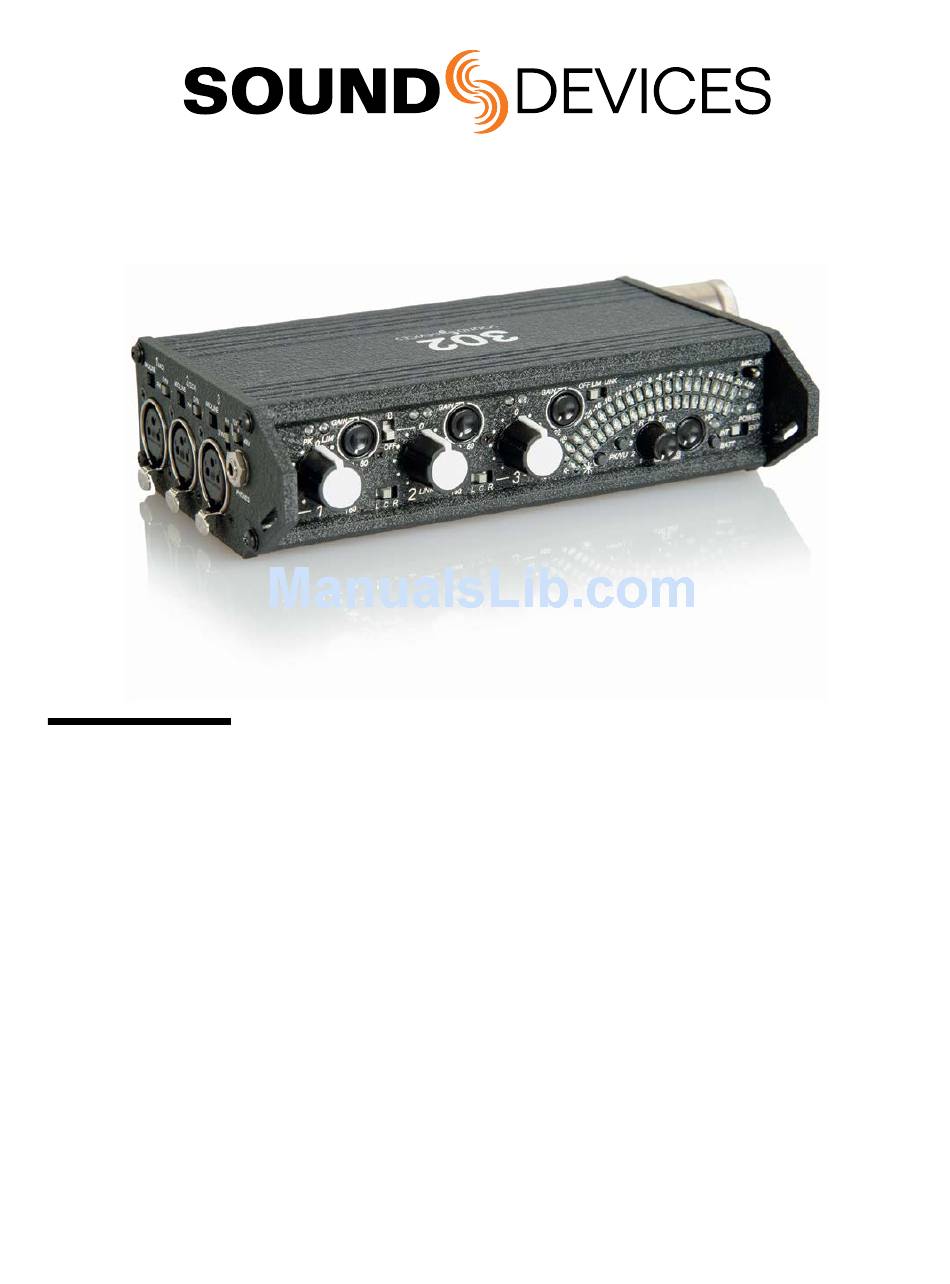

  • Page 1 Compact Production Mixer User Guide and Technical Information Sound Devices, LLC E7556 State Rd. 23/33 • Reedsburg, WI • USA +1 (608) 524-0625 • fax: +1 (608) 524-0655 Toll-Free: (800) 505-0625 www.sounddevices.com support@sounddevices.com...

  • Page 2: Table Of Contents

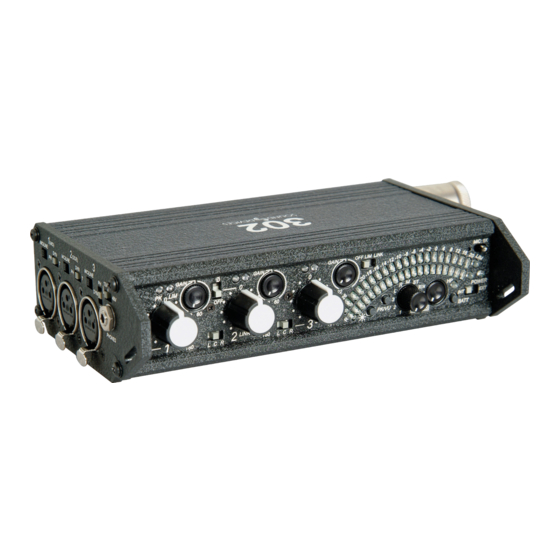

    The 302 is the essential portable mixer for production companies and camera operators wanting to take control of their audio. The 302 is stunning in size, flexibility, control and performance; it is the most compact and cost-effective battery-powered professional audio mixer in its class.

  • Page 3: Limitation Of Liability

    OR ARISING OUT OF ITS CONTRACTS WITH ITS CUSTOMERS OR OTHER THIRD PARTIES. NOTWITHSTANDING AND WITHOUT LIMITING THE FOREGOING, IN NO EVENT SHALL SOUND DEVICES BE LIABLE FOR ANY AMOUNT OF DAMAGES IN EXCESS OF AMOUNTS PAID BY THE END USER FOR THE PRODUCTS AS TO WHICH ANY LIABILITY HAS BEEN DETERMINED TO EXIST.

  • Page 4: Quick Start Checklist

    302 User Guide and Technical Information Quick Start Checklist Proper setup of sound sources and input devices is quick and easy with the 302. Follow the steps outlined below for basic interconnection. Powering the 302 1. Insert three AA-batteries with + side first into the mixer battery tube.

  • Page 5: Front Panel Descriptions

    302 User Guide and Technical Information Front Panel Descriptions 1. Fader 8. Slate Mic/Tone Switch Primary control for adjusting the input Two-position switch ,activates the slate level during operation. microphone in the left (momentary) position, or the tone oscillator in the 2.

  • Page 6: Input Panel Descriptions

    302 User Guide and Technical Information 14. Headphone Selector Switch 17. Battery Check Button Sets the signal source sent to Press and hold to display the internal headphones. Options include: input PFL and external battery levels on the output 1, 2, 3; left output bus; right output bus;...

  • Page 7: Output Panel Descriptions

    (floating) from the rest of the circuitry. An input to the master bus designed exclusively to link the Tape Out/ Mix Out of 302, 442, MixPre, or MP-2 to the 302 for additional inputs. Pin-1 = ground, pin-2 = left, pin-3 = right. Shell of TA3 connector must be grounded to pin-1 to open connection.

  • Page 8: Inputs

    With the Fader set to unity gain (0 dB or 12 o’clock), make the appropriate adjustments with the Gain (trim) pot. Make coarse gain adjustments with the Gain (trim) pot during setup. Once the gain is set to the desired level, recess the Gain (trim) pot to hide it from the 302’s mixing surface.

  • Page 9: Phantom And T- Microphone Powering

    -3. Dynamic microphones will operate as normal when phantom power is applied to them. The 302 can provide up to 10 mA to each input at 48 V, sufficient for the most power-hungry condenser microphones. Many phantom powered microphones do not require 48 V and can be properly powered with 12 V.

  • Page 10: Pan Switches

    When possible, attempt to equalize at the sound source with microphone selection, use of windscreens, microphone placement, and on-board microphone filtering. Many microphones have on-board high pass filters, and the high-pass filters on the 302 can be used in conjunction with the microphone’s filters to increase the filter’s slope.

  • Page 11: Stereo Linking Of Inputs 1 And 2

    The 302’s MS matrix uses Input 1 for the Mid signal and Input 2 for the Side signal. Input 2’s Fader controls the overall gain of the MS stereo pair. Input 1’s Fader and both Input 1 and 2’s Pan switches are disabled.

  • Page 12: Outputs

    The 302’s Master XLR Outputs and Tape Outputs share the same program content. There is no master level control on the 302. The master is factory-set to unity gain, or “0” dB. XLR Outputs The two XLR outputs are active-balanced connections, each capable of driving long lines.

  • Page 13: Tape Out (Mix Output)

    For most applications the limiters are a significant benefit and should be enabled. Headphone Monitoring The 302 has a flexible headphone circuit capable of selecting a variety of audio signals for headphone monitoring. Most professional headphones ranging in impedance from 8 ohms to 1000 ohms can be used with the 302.

  • Page 14: Hp Monitor Selection

    302 User Guide and Technical Information HP Monitor Selection Several signal sources can be sent to the headphones. The front panel rotary switch selects the signal. HP Sources Description (PFL) 1 PFL solo monitoring of the Channel 1 input signal. The channel is monitored in dual-mono. Pre-Fader, post- Limiter, and post-High-Pass.

  • Page 15: Tone Oscillator/Slate Microphone

    When the Tone Oscillator is engaged the inputs are muted. Tone Oscillator Tone is used to set gain levels between the 302 and the next device in the signal path. The Tone Oscillator uses the latch position of the switch. Switch positions can be reassigned in the Setup Menu.

  • Page 16: The Meter

    VU (Volume Units) information, its scale corresponds to VU units. Unlike other analog mixers, the 302 is calibrated with its 0 VU reference at 0 dBu, not +4 dBu. If you primarily interconnect with analog video cameras, you may want to change the 0 VU reference to +4 dBu in the Setup Menu.

  • Page 17: Ballistics Lock

    VU meters are too slow to be used as the sole metering source when interconnected to digital devices. At Factory Default, the 302 has its 0 VU reference level at 0 dBu. The meter reference level can be altered in the Setup Menu.

  • Page 18: Mixer Linking

    When linking with a 442 a system of seven microphone inputs is achieved. Generally when linking to a 442, the 442 is used as the master, linking with the 302’s Mix Out to the 442’s Mix In. At the 442 outputs, all seven inputs appear.

  • Page 19: Internal Batteries

    302 User Guide and Technical Information Internal Batteries The 302 uses a unique battery tube to hold 3-AA batteries. This robust tube is sealed to prevent potential battery leakage from ruining internal circuitry. The threaded-nickel cap extends beyond the panel to make battery changes easy and quick.The battery tube extends no farther than adjacent XLR connectors.

  • Page 20: The Setup Menu

    302 User Guide and Technical Information The Setup Menu The 302 has 18 available setup features. See the Setup Menu Chart for all available options. Setups, typically set-and-forget features, are infrequently changed. With the Setup Menu, these features are easily accessed directly on mixer’s the front panel.

  • Page 21: Output Limiter Adjustment

    302 User Guide and Technical Information User Default A memory location is available to store user-defined default settings. The user default is helpful to save a baseline of settings different than the factory default settings. To save a user default perform the following: 1.

  • Page 22: Advanced Gain Structure And Interconnection

    6. Adjust the 302’s output level via the up/down buttons until the recorder is just shy of clipping as indicated on its meter. 7. If the 302’s Output level is at 0 dB and the recorder is not to its clip level, increase the recorder’s gain control until it is to the clip level.

  • Page 23: Setup Menu (V 3.6)

    302 User Guide and Technical Information Setup Menu (v 3.6) Below is the chart of setups for the 302. See Setup Menu on page 15 for instructions on how to enter and navigate the setup menu. Factory default settings are displayed in bold.

  • Page 24: Specifications

    302 User Guide and Technical Information Specifications Measurement settings (unless otherwise specified): Gain controls for the channel being measured at mid point, all other channels gains fully down; pan switches centered; high-pass off; inputs in ‘mic’ position; outputs in ‘line’ position. Mic input driven with 150 ohm source. Outputs measured with 100k ohm load.

  • Page 25: Dimensions And Weight

    302 User Guide and Technical Information Outputs Line Output Clipping 20 dBu minimum Level (1% THD) 18 dBu minimum with 600 ohm load Output Noise –100 dBu (–102 dBV) maximum (22 Hz to 22 kHz bandwidth, flat filter, master gain fully up,...

  • Page 26: Accessories

    302 User Guide and Technical Information Accessories Several high-value accessories are available for the 302 mixer, including a carry-case, cables, and power accessories. For a full list of Sound Devices products and accessories, visit our web site www.sounddevices.com/products. CS-3 Production case with high-quality strap for use with 302, 7-Series recorders and MixPre;...

  • Page 27: Ce Declaration Of Conformity

    Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA declares that the product, 302 Production Field Mixer is in conformity with and passes: EN55103-1, 1997 EMC-product family standard for audio, video, audio- visual and entertainment lighting control apparatus for professional use.

  • Page 28: Warranty And Technical Support

    TWO (2) years from date of original retail purchase. This is a non- transferable warranty that extends only to the original purchaser. Sound Devices, LLC will repair or replace the product at its discretion at no charge. Warranty claims due to severe service conditions will be addressed on an individual basis.
  • Page 29 302 User Guide and Technical Information...
  • Page 30 302 firmware revision 3.6- Printed in U.S.A.
