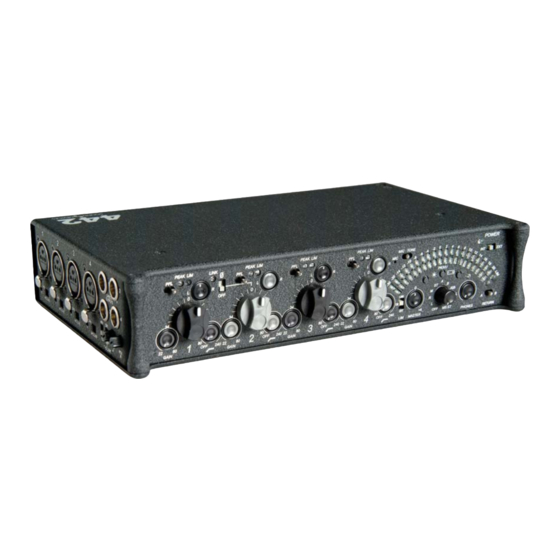

442
Field Mixer
User Guide and Technical Information
for 442 and 442 Nordic Field Mixers
Sound Devices, LLC
300 Wengel Drive
Reedsburg, WI 53959 USA
Voice +1 (608) 524-0625
Fax +1 (608) 524-0655
www.sounddevices.com
©2003–2009 Sound Devices, LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 442 Nordic and is the answer not in the manual?

Questions and answers

Related Manuals for Sound Devices 442 Nordic

Summary of Contents for Sound Devices 442 Nordic

  • Page 1 Field Mixer User Guide and Technical Information for 442 and 442 Nordic Field Mixers Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA Voice +1 (608) 524-0625 Fax +1 (608) 524-0655 www.sounddevices.com ©2003–2009 Sound Devices, LLC...
  • Page 2 backside - front cover...

  • Page 3: Table Of Contents

    Peak LEDs ....... . 10 442 Nordic Information ....19 Polarity Reversal - Channel 2 .
  • Page 4 The 442 incorporates a complete feature-set into a compact, functional design. With no hidden controls, the 442's parameters are accessible from the three main surfaces. The highly effi cient circuitry allows the mixer to be powered by either four internal AA batteries or external 5-18 VDC.

  • Page 5: Quick Start Guide

    For internal powering, insert four AA batteries with the positive (+) side fi rst into the battery compartment. For external powering, connect the external DC power (5–18 VDC) to the 442's DC connector. Slide the power switch in the direction of the intended power source (INT or EXT).

  • Page 6: Front Panel Descriptions

    442/442N User Guide and Technical Information Front Panel Descriptions Channel Fader Output Meter Primary control for adjusting the input 40 segment output meter. For Peak level of each channel during operation. setting, the markings indicate output Ranges from Off to +15 dB. Nominal level (at line-level) in dBu.
  • Page 7 Power Switch Monitor Selection Switch Three-position switch, selects between Selects the signal source in headphone internal battery power or external DC monitor. Options include: Off; Left sources, middle position is Off. Output bus; Right Output bus; Mono (summed left and right); STereo master; Gain (Trim) Return A;...

  • Page 8: Input Panel Descriptions

    442/442N User Guide and Technical Information Input Panel Descriptions XLR Inputs Mic/Line Channel Switch Transformer-balanced channel inputs. Selects the input level of its associated Pin-1 = ground; pin-2 = ‘hot’ (+); pin-3 = input connector. ‘cold’ (-). Unbalance by grounding pin-3 Phantom Voltage Selection to pin-1 of the XLR connector.

  • Page 9: Output Panel Descriptions

    Mix In Headphone Outputs Designed exclusively to link another 1/4-inch and 3.5 mm stereo connectors, 442, 302, MixPre, or MP-2 to the 442 drive headphones from 8-2000 ohm for additional inputs. Signal is sent impedances to required monitoring directly to the Output Stereo bus.

  • Page 10: Input Channels

    With the Channel Fader set to unity gain (0 dB or 12 o’clock), make the appropriate adjustments with the Gain (trim) pot. Make coarse gain adjustments with the Gain (trim) pot during setup. Once the gain is set to the desired level, recess the Gain (trim) pot to hide it from the 442’s mixing surface.

  • Page 11: High-Pass Filters

    Dynamic microphones will operate as normal when phantom power is applied to them. The 442 can provide up to 10 mA to each input at 48 V, suffi cient for the most power-hungry condenser microphones. Many phantom powered microphones do not require 48 V and can be properly powered with 12 V.

  • Page 12: Pan Controls

    The Pan potentiometer controls the respective input's stereo image that is sent to the Stereo Output bus. The 442 uses constant loudness pan controls, meaning that the signal is 3 dB louder at the full-right or full-left positions relative to the center position. For most applications, the channel will be panned either hard-left, hard-right, or center;...

  • Page 13: Stereo Linking On - Channels 1 And 2

    PFL metering can be deactivated in the Setup Menu. Outputs The 442 is a two-bus mixer with several outputs, this is essential for multi-camera, multi-source productions. Because each input can be continuously panned from left to right, the mixer can be used with either two mono buses or with a single stereo bus.

  • Page 14: Secondary Balanced Outputs

    See Setup Menu At Factory Default, the mixer is set to limit the output signal peak levels to +20 dBu. This assures that the output of the 442 will not overload inputs that accept full line-level signals (+24 dBu peak).

  • Page 15: Link Vs On

    To Link two 442s together: Connect the TAPE OUT/MIX OUT of 442 A to the MIX IN of 442 B with a TA3F to TA3F cable (Sound Devices XL-1B optional accessory). This will send the stereo mix of 442 A directly to the stereo output bus of 442 B.

  • Page 16: Metering

    In VU mode, the front panel meter labeling is in volume units. VU meters are always referenced to an actual signal level in dBu, the 442 VU meter is referenced with 0 VU corresponding to 0 dBu at the Line- Level outputs.

  • Page 17: Headphone Peak Led

    Headphone gain is controlled by a pop up knob to remove it from the mixing surface. The 442 can drive headphones to dangerously high volumes. Turn down the headphone gain control before selecting a headphone source to prevent accidental signal extremes.

  • Page 18: Powering

    External Powering The 442 can be powered from any DC voltage from 5 to 18 VDC. Pin-4 of the locking, Hirose connector is positive (+) and pin-1 is negative (–). The external DC supply is completely isolated (fl oating) from the rest of the mixer for easy and safe interconnection to other external audio gear.

  • Page 19: Tone Oscillator / Slate Microphone

    A single 3-position switch controls both the tone oscillator and the slate microphone. Tone Oscillator Tone is used to set gain structure between the 442 and the next device in the signal path. The tone oscillator uses the locking position of the switch.

  • Page 20: Accessing The Setup Menu

    “baseline” of settings different than the factory default settings. User and Factory Default settings can be quickly recalled in the Setup Menu on 442 and 442N models running fi rmware v.5+. To save and recall the User Default. 442N specifi cs are shown in parenthesis.

  • Page 21: 442 Nordic Information

    Recall the User Default by accessing the Setup Menu. With the 442 Off, press and hold the PK/VU button while powering on the mixer. Access the Default Restore Setup Menu option by pressing the PK/ VU button repeatedly until the 18 (10) LED is illuminated on the left (top) meter.

  • Page 22: Setup Menu Firmware V 5.07

    Setup Menu Firmware v 5.07 The chart below shows the available setups for the 442 and 442N. The fl ashing left (top) meter LED indicates the setup selected. The right meter LED indicates the available values, read from left to right.

  • Page 23: Setup Menu Firmware V 3 & 4

    Setup Menu Firmware v 3 & 4 The chart below shows the available setups for the 442 and 442N. The fl ashing left (top) meter LED indicates the setup selected. The right meter LED indicates the available values, read from left to right.

  • Page 24: Setup Menu Firmware V 2, (442 Only)

    Setup Menu Firmware v 2, (442 only) The chart below is provided for users with the original production 442 fi rmware. Determine the fi rmware revision by viewing the meters when the unit is powered up. The left meter indicates the fi...

  • Page 25: Specifi Cations

    XLR Line: Transformer-balanced for use with <2k ohm outputs RTN A,B (3.5 mm/TA3/Multi-pin): Unbalanced stereo for use with <2k ohm outputs Mix In: Unbalanced stereo for use with 442 Mix Out 1.8k ohm output Input Impedance XLR Mic: 2k ohms...

  • Page 26: Analog Outputs

    442/442N User Guide and Technical Information Analog Outputs Output Type XLR Line: Transformer-balanced for use with >600 ohm inputs XLR -10: Transformer-balanced for use with >10k ohm inputs XLR Mic: Transformer-balanced for use with >600 ohm inputs Multipin Line: Transformer-balanced for use with >600 ohm inputs Multipin -10: Transformer-balanced for use with >10k ohm inputs...

  • Page 27: Dimensions And Weight

    Power Power supply (batteries) Internal ±16 V (bi-polar) regulated audio rails, 3.2-8 V range internal batteries Power supply (external) Isolated (floating) external DC input jack, 5-18 V Locking 4-pin Hirose connector, pin-4 = (+), pin-1 = (-), Use gold Hirose #HR10A-7P-4P (DigiKey# HR110-ND) or silver Hirose #HR10-7P-4P (DigiKey# HR100-ND) for locking mating DC connector.

  • Page 28: Block Diagram - Inputs And Outputs

    442/442N User Guide and Technical Information Block Diagram - Inputs and Outputs v. 5.07 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.

  • Page 29: Block Diagram - Monitoring

    Block Diagram - Monitoring...

  • Page 30: Accessories

    442/442N User Guide and Technical Information Accessories Several high-value accessories are available for the 442 mixer, including a carry-case, cables, and power accessories. For a full list of Sound Devices products and accessories, visit our web site www. sounddevices.com/products. CS-4...

  • Page 31: Ce Declaration Of Conformity

    Sound Devices, LLC 300 Wengel Drive Reedsburg, WI 53959 USA declares that the product, 442 Production Field Mixer is in conformity with and passes: EN55103-1, 1997 EMC-product family standard for audio, video, audio-visual and entertainment lighting control apparatus for professional use.

  • Page 32: Warranty And Technical Support

    ONE (1) year from date of original retail purchase. This is a non-transferable warranty that extends only to the original purchaser. Sound Devices, LLC will repair or replace the product at its discretion at no charge. Warranty claims due to severe service conditions will be addressed on an individual basis.
  • Page 34 442 fi rmware rev 5.07 - Printed in U.S.A.
