KL 1600 LED – Operating instructions
SCHOTT
KL 1600 LED
Operating instructions
Distribution in the UK & Ireland
Lambda Photometrics Limited
Lambda House Batford Mill
Harpenden Herts AL5 5BZ
United Kingdom
E:
info@lambdaphoto.co.uk
W: www.lambdaphoto.co.uk
T:
+44 (0)1582 764334
F:
+44 (0)1582 712084
Status: April 2012
1/10
Advertisement
Table of Contents
Related Manuals for SCHOTT KL 1600 LED
Summary of Contents for SCHOTT KL 1600 LED
-
Page 1: Operating Instructions

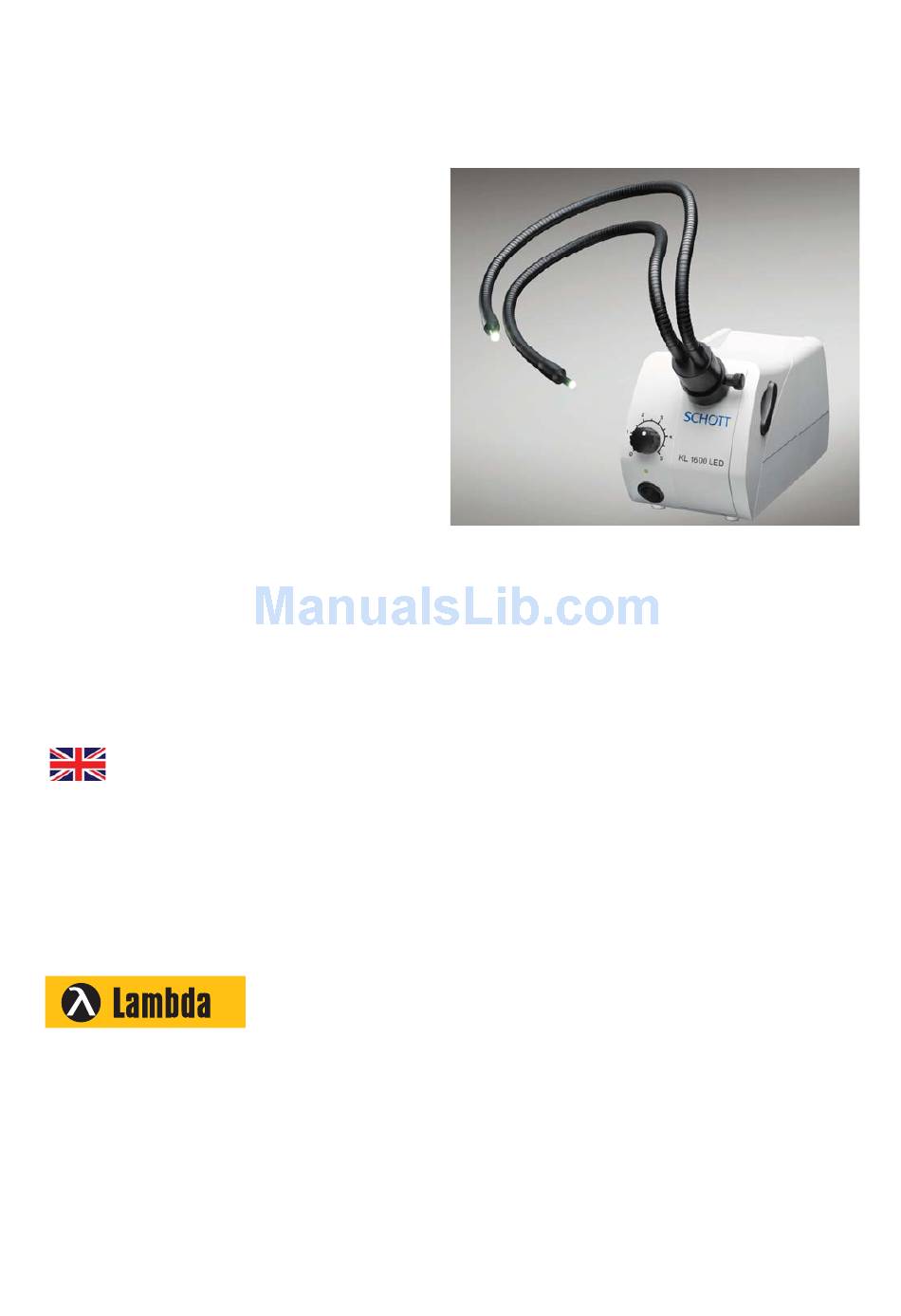

KL 1600 LED – Operating instructions SCHOTT KL 1600 LED Operating instructions Distribution in the UK & Ireland Lambda Photometrics Limited Lambda House Batford Mill Harpenden Herts AL5 5BZ United Kingdom info@lambdaphoto.co.uk W: www.lambdaphoto.co.uk +44 (0)1582 764334 +44 (0)1582 712084... -
Page 2: Table Of Contents

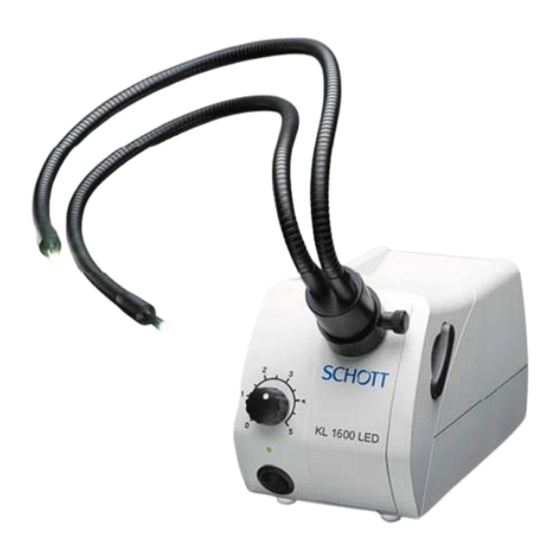

KL 1600 LED – Operating instructions Contents Important information................4 Operation ....................6 Light guide connection................6 Power connection..................6 Start-up procedure..................6 Light intensity setting................7 Filter slide .....................7 Maintenance.....................8 Troubleshooting..................8 Accessories....................8 Technical data ..................9 2/10... - Page 3 KL 1600 LED – Operating instructions Instrument overview Electronic light intensity setting On/off switch Locking screw Light guide socket Carrying handle Mains connection socket (back of instrument) Ventilation grid (back of instrument) Filter slide Air vents (base of instrument) (10)
-
Page 4: Important Information
In accordance with the EN 62471:2008 standard the KL 1600 LED is a product of Risk Class 2. The KL 1600 LED fiber optic light source conforms to the following European directives:... - Page 5 • To avoid unnecessary stressing of biological tissue by illuminating with visible light, reduce the brightness and duration of illumination to the absolute minimum required level. Please make sure that your KL 1600 LED cold light source is operated at the voltage stated on the model plate (10).
-
Page 6: Operation
EU, UK, US or AU. This is connected to the mains supply (100-240 V AC, 50-60 Hz). 2.3 Start-up procedure Switch on/off the KL 1600 LED by pressing the on/off switch (2). When the instrument is switched on the green control light (11) is lit. -
Page 7: Light Intensity Setting
2.5 Filter slide The KL 1600 LED has a filter slide (8) which can be fitted with an insert filter from the filter set (available as accessory). When operating the light source the filter slide must always be engaged in one of the end positions or in the rest position. -
Page 8: Maintenance
5. KL 1600 LED accessories A wide range of accessories is available for your KL 1600 LED. Please see our separate catalogue for further details (contact address for additional requirements can be found on page 10). Proper functioning, safety and optimum luminous efficiency can only be guaranteed with SCHOTT light guides and accessories. -
Page 9: Technical Data
KL 1600 LED – Operating instructions 6. Technical data for KL 1600 LED Properties Values General information Type description KL 1600 LED Dimensions (W x D x H) approx. 231 x 114 x 137 Weight approx. 2.45 Cooling Axial fan Ambient temperature* °C... - Page 10 We reserve the right to make changes in the design and supplied items within the scope of on-going technical improvements. WEEE declaration Your SCHOTT product was produced and developed with high quality materials and components. The symbol indicates that electrical and electronic devices must be separated from domestic waste and appropriately disposed of after useful life.
