SCHOTT LLS 3 User Manual

SCHOTT LLS 3 User Manual

Led light source
Hide thumbs
Table of Contents

Advertisement

Quick Links

SCHOTT North America, Inc.
Part number:
A20970
Serial number:

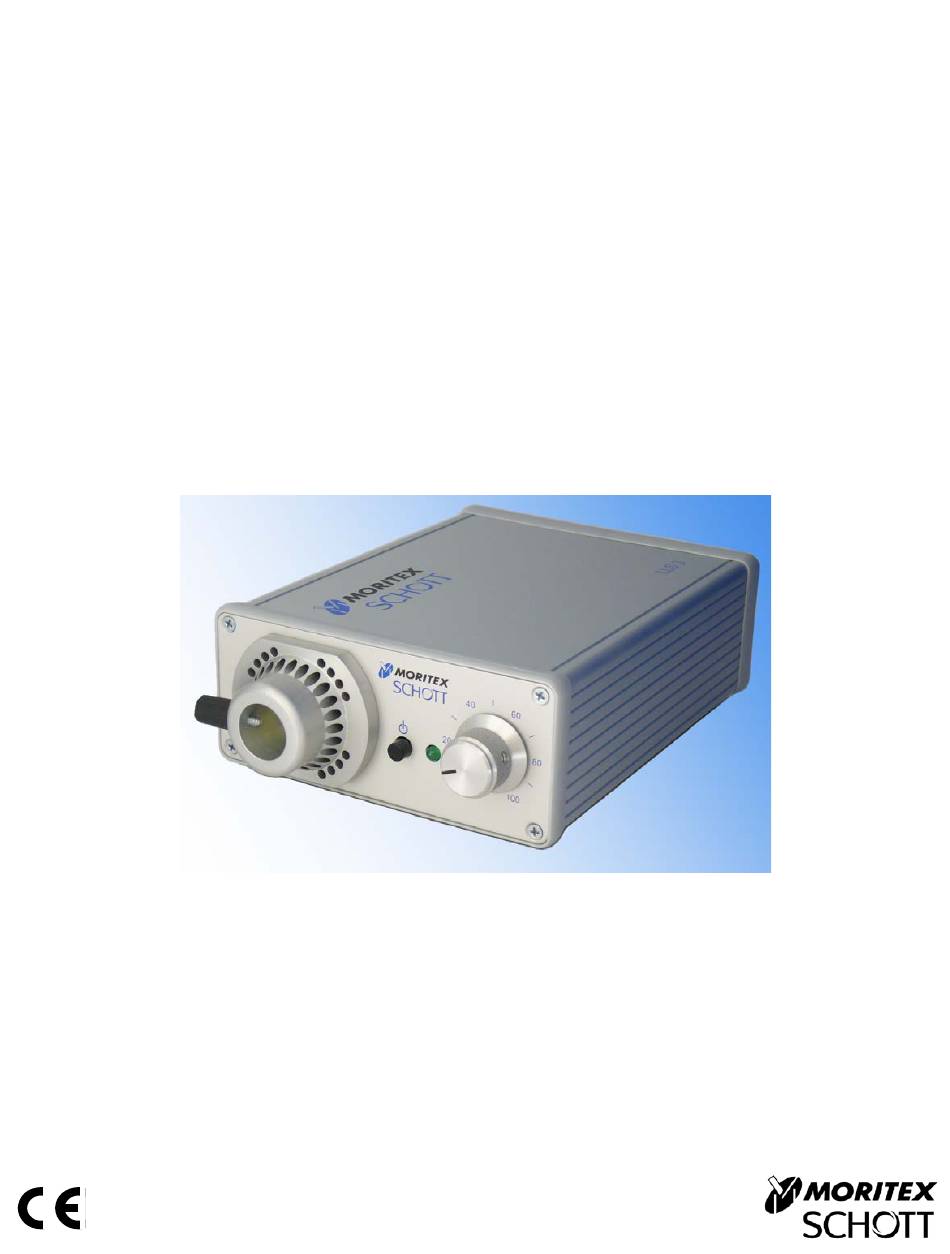

LLS 3
LED Light Source
User Manual
SCHOTT North America, Inc.
122 Charlton Street, Southbridge, MA 01550-1960
Phone: (508) 765-9744, Fax: (508) 765-1299
Email: machine.vision@us.schott.com
Website: www.schott-moritex.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LLS 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCHOTT LLS 3

Summary of Contents for SCHOTT LLS 3

  • Page 1 SCHOTT North America, Inc. Part number: A20970 Serial number: LLS 3 LED Light Source User Manual SCHOTT North America, Inc. 122 Charlton Street, Southbridge, MA 01550-1960 Phone: (508) 765-9744, Fax: (508) 765-1299 Email: machine.vision@us.schott.com Website: www.schott-moritex.com...

  • Page 2: Table Of Contents

    Table of Contents 1.0. SAFETY WARNING – ENGLISH 1.1. Safety Symbols – English 1.2. LED Safety Classification – English 1.3. Quick Start – English 2.0. SICHERHEITSHINWEISE - DEUTSCH 2.1. Sicherheitssymbole – Deutsch 2.2. Sicherheitseinstufung des Lasers – Deutsch 2.3. Schnellstart – Deutsch 3.0.
  • Page 3 User Manual - LLS 3 6.3. Cleaning 6.4. LED Specifications 7.0. LLS 3 – LED LIGHT SOURCE OPERATION 7.1. General Operation 7.2. Front Panel Controls 8.0. USER CONTROL AND OPERATING MODES 8.1. User Control Modes 8.2. Operating Modes 9.0. REMOTE POLARITY SWITCH 10.0.

  • Page 4: Safety Warning - English

    User Manual - LLS 3 1.0. Safety Warning – English Read, understand and follow all instructions in this manual. Keep all safety and operating instructions for future reference. To ensure protection from electric shock, only power the LED Light Source from an agency approved Class 2 DC power supply (double insulation) such as the one included with the product.

  • Page 5: Safety Symbols - English

    1.3. Quick Start – English 1.3.1. Input Voltage The LLS 3 accepts input voltage up to 35 VDC. DC power for the LED Light Source must be from an agency approved Class 2 DC power supply. A suitable 24VDC power supply for 100 to 240 VAC and 50/60 Hz is provided with the unit.
  • Page 6 Connect the cord from the power supply to the light source. The LLS 3’s green status LED will illuminate for a few seconds while the unit initializes. If the unit is in Standby Mode, then the LED will turn off.

  • Page 7: Sicherheitshinweise - Deutsch

    Personal vorgenommen werden). 14. Beschränken Sie Ihre Wartung des Geräts bitte auf das in diesem Handbuch beschriebene Ausmaß. Geben Sie das Steuergerät an ein autorisiertes Kundendienstcenter von SCHOTT zurück. In Abschnitt 20 finden Sie mehr Informationen zur Rückgabegenehmigung für Materialien. Page 7...

  • Page 8: Sicherheitssymbole - Deutsch

    Gleichstrom betrieben werden. Die Gleichstromversorgung der Laser- Lichtquelle ist über ein behördlich zugelassenes Gleichstrom-Netzteil der Klasse 2 vorzunehmen. SCHOTT bietet ein hierfür zugelassenes 24V- Gleichstrom-Netzteil für 100 bis 240 V Wechselstrom und 50/60 Hz an. Die Stromversorgung kann entweder über die runde Gleichstrombuchse oder die grüne Klemmleiste (Multi-Port-Anschluss) erfolgen.
  • Page 9 2.3.2. Einschalten des Steuergeräts 1. Schließen Sie die Lichtquelle an das Netzteil-Kabel an. 2. Die LLS 3 grüne Status-LED wird für ein paar Sekunden zu beleuchten, während das Gerät initialisiert. Wenn sich das Gerät im Standby-Modus wird die LED erlischt.

  • Page 10: Avertissements De Securite - Français

    User Manual - LLS 3 3.0. Avertissements de sécurité – Français 1. Lisez, comprenez et suivez toutes les instructions dans ce manuel. 2. Gardez toutes les consignes de sécurité et opérationnelles pour référence future. Afin de garantir la protection contre le choc électrique, alimenter la source de la lumière du DEL uniquement avec un bloc d’alimentation CC de Classe 2...

  • Page 11: Symboles De Sécurité - Français

    3.3. Démarrage rapide – Français 3.3.1. Voltage d’entrée Le LLS 3 accepte un voltage d’entrée jusqu’à 35 VCC. L’alimentation CC pour la Source de lumière du DEL doit arriver d’un bloc d’alimentation CC de Classe 2 approuvé par une agence.
  • Page 12 3.3.2. Allumer le Contrôleur 1. Connecter le cordon de l’alimentation à la source de lumière. 2. Le LLS 3 la LED verte s'allume pendant quelques secondes lorsque l'appareil s'initialise. Si l'appareil est en mode veille, puis le voyant s'éteint. 2.

  • Page 13: Advertencia De Seguridad - Español

    User Manual - LLS 3 4.0. Advertencia de seguridad – Español Lea, comprenda y siga todas las instrucciones contenidas en este manual. 2. Guarde todas las instrucciones de seguridad y funcionamiento para su referencia en el futuro. Para garantizar protección contra electrocución, alimente la Fuente Luminosa LED exclusivamente con una fuente de alimentación de c.c.

  • Page 14: Símbolos De Seguridad - Español

    4.3. Inicio Rápido – Español 4.3.1. Tensión de Entrada El LLS 3 acepta una tensión de entrada de hasta 35 Vcc. La alimentación c.c. de la Fuente Luminosa LED debe provenir de una fuente de alimentación c.c. de clase 2 homologada. Una fuente de alimentación de 24 Vcc adecuada para entre 100 y 240 Vca y 50/60 Hz se ofrece.
  • Page 15 1. Conecte el cable de la fuente de alimentación a la fuente luminosa. 2. El LLS 3 del LED de estado verde se ilumina durante unos segundos mientras la unidad se inicializa. Si la unidad está en modo en espera, el LED se apagará.

  • Page 16: 安全上の警告 - Japanese

    User Manual - LLS 3 5.0. 5.0. 安全上の警告 – Japanese この手引書をよくお読みになり、記述された全ての指示に従ってください。 2. 今後参照するために、全ての安全及び取扱説明書を保管してください。 感電の危険から身を守るために、本製品と共に納品されたものと同様の、行政機 関の認可した第 2 級直流電力引き込み装置（２重絶縁）のみ LED 光源の電力供給に使 用して下さい。 光源が発光しているときは、 LED 出力部に決して直接目を向けないでく ださい。LED は特徴として、目の損傷を招きかねない非常に高い輝度を持って います。光学器械を使って光線を凝視しないでください。紫外線光源を使うと きは、紫外線保護眼鏡を使用してください。 本装置の正面又は後部には何も被せないでください。 6. 適切なアースを確保するために、納品された ESD 接地ケーブルをご使用くださ い。 7. 安全な使用のために、適正なコネクタの付いた電源コードのみをご使用くださ い。 8. 装置を長時間使用しないときは、電源コードを抜いてください。 9. 本装置は、液体の近くあるいは湿度の高いエリアでは使用しないでください。...

  • Page 17: 安全記号 - Japanese

    LED 光源は第 1 級レーザー製品に分類されています。光線を凝視しないでくだ さい。 レーザーは装置の正面先端部から出力されます。装置の安全な操作を確 保するために、 安全と運転に関する全ての指針に従ってください。 5.3. クイックスタート – Japanese 5.3.1. 入力電圧 LLS 3 は、最高 35 VDC までの入力電圧で使用出来ます。 LED 光源用の直 流電力は、 は 100 から 240 VAC 及び 50/60Hz で使用可能な 24VDC の AC アダプターを提供しています。入力電圧は 円形直流コネクタ又は緑色端子 ブロック (マルチポートコネクタ)のどちらにも通せます。. は、マルチポー トコネクタ上のシャシー接地端子を適正なアースに取り付けることをお勧め...
  • Page 18 User Manual - LLS 3 5.3.2. 制御器を “On”に回す 1. LLS 3 に電源コードを接続する。 2. は、 LLS 3 の緑色のステータスは、ユニットの初期化を数秒間 LED が点 灯し ます。ユニットの場合、スタンバイモードにしてからは、 LED の電 源を切るということです。 3. 強度調節つまみを反時計回り一杯に回して MIN の設定にする (誤って人員 に光が照射するのを防ぐため)。 4. 装置正面の ＯＮ／OFF ボタンを押す。 5. 強度調節つまみを回して明るさを調整する。 6. LED が点灯しない場合は、極性スイッチの設定をチェックする。 7. LED を消すには、装置正面の ＯＮ／OFF ボタンを押す。...

  • Page 19: General Instructions

    6.1. Product Description Congratulations on the purchase of the LLS 3 LED Light Source, the state of the art in light output and control, utilizing a simplified user interface with versatile remote control abilities. The LLS 3 is compatible with all standard COLDVision Series light guides.

  • Page 20: Installation Guidelines

    User Manual - LLS 3 6.2. Installation Guidelines Front Right To insure proper operation of your LLS 3 – LED Light Source, the following conditions must be met: • For indoor use only, Installation Category, II; Pollution degree, 2 •...

  • Page 21: Cleaning

    User Manual - LLS 3 Mounting Brackets, A20955 To install the mounting brackets to the LLS 3, remove the rubber feet from the bottom of the unit. Then screw the mounting plate to the light source housing matching the threaded holes and the four counter bored holes towards the center of the plate.

  • Page 22: Lls 3 - Led Light Source Operation

    7.1. General Operation The LLS 3 has a simplified user interface for easy startup operation. To use the light source in normal operation, press the On/Standby push button and adjust the intensity control knob. If the light output does not come on, ensure the correct setting of the rear polarity switch (see section 9.0 for more information).

  • Page 23: User Control And Operating Modes

    There are four modes of user control of the light source: Local, Ethernet, RS-232, & Analog and two modes of operation. The LLS 3 can switch between any of the 4 control modes automatically. There is no need for a remote/local switch. Simply start using the interface and the LLS 3 will track changes to that interface until another interface is utilized.
  • Page 24 LED color or specific wavelength. Strobing of the LLS 3 can be done with a 24V input; however, overdriving the LED to twice the Normal Mode power is not possible unless at least 26V is applied. With a 24V input voltage, some overdrive power is possible, but not twice the input power.

  • Page 25: Remote Polarity Switch

    LED light engine will slowly degrade as it ages. The LLS 3 has a built in photo sensor that monitors the light output and can be used to maintain a constant light output during the use of the LED.

  • Page 26: Rs-232 Connection

    User Manual - LLS 3 The light output function is either LED output off with unit on or unit completely off depending on the Ethernet or RS-232 setting that controls the behavior of the shutdown signal. 10.0. RS-232 Connection This is a 9 pin ‘D’ socket for direct connection to a PC, Laptop or other device running a terminal emulation program, such as HyperTerminal in Windows.
  • Page 27 User Manual - LLS 3 Explanation of Signals: Pin 1 Identical to Circular power input. Power must be applied via a Class 2 power supply. Pin 2 Return path for Pin 1. Pin 3 Analog 0-5 VDC Remote Control. The LED output responds linearly with an applied signal to this pin.
  • Page 28 User Manual - LLS 3 Representative Schematic of the Multi-Port Connector: Page 28...

  • Page 29: Remote Operation: Rs-232

    User Manual - LLS 3 13.0 Remote Operation: RS-232 The LLS 3 LED Light Source can be operated remotely via a built-in RS-232 interface. Power must be applied to the unit to use this interface but the light source does not need to be turned on.
  • Page 30 2. m = constant character denoting not in correct mode Command Timeout: If a command is not completed (i.e., a <CR> is not sent) within 10 seconds of when the first character is received by the LLS 3 : &ni Command Summary Activate/Deactivate UDP-Netfinder “&afx”...
  • Page 31 Activate/Deactivate UDP-Netfinder &afx Activates/Deactivates Netfinder protocol. This allows for using UDP to find LLS 3 devices on a network. Netfinder adds processing time and slows down other functions of the LLS 3. It is recommended to deactivate if not required.
  • Page 32 Get/Set Equalizer Calibration value: &eb The LLS 3 is set at the factory to maximize the response of the light sensor. For the best equalizer performance it’s important to maintain as close to a 12 bit value response for the maximum light output.
  • Page 33 User Manual - LLS 3 xvi. Get Equalizer Intensity Value &ed Obtains the equivalent intensity that the equalizer feedback loop is currently using to maintain the light output control. return value: &edxxx where “x” is a 12 bit HEX value corresponding to the intensity of the light source that the equalizer is setting.
  • Page 34 (&i command). For example, &pi7F is the same intensity as &iFF. Note input voltage levels required for the white LLS 3 model in Section 17.0. 00 to ff is 8 bit value in HEX. 00 = off, FF = 200% of Normal Mode intensity. 100% of...
  • Page 35 Get/Set Restore Settings on Power Up: &rx By default, when the LLS 3 is turned on the settings for the light source is automatically restored for the LLS 3. This behavior can be disabled with this setting. Use the Restore Settings command (&t) to restore stored values when &r is set to off...

  • Page 36: Remote Operation: Ethernet

    User Manual - LLS 3 14.0. Remote Operation: Ethernet In order to communicate with the LLS 3 via Ethernet, the IP address of the unit must be known. By default, the LLS 3 ships with DHCP enabled which grabs an address from a DHCP server residing on the network.

  • Page 37: Power Supplies

    Changing parameters in one control mode will be seen in the other control modes. Should a non-Windows Operating System be used with the LLS 3, the LLS 3 can be controlled without the SDK and using standard TCP socket communication.

  • Page 38: Troubleshooting

    Note: Opening of the LLS 3 cover prior to the expiration of the warranty period will invalidate the warranty. Only an authorized repair shop should have access to the light source with its cover removed.

  • Page 39: Product Specifications

    User Manual - LLS 3 17.0. Product Specifications LLS 3 – LED Light Source, A20970 Physical Dimensions Overall Length: 195mm (7.68 in) Overall Width: 129mm (5.08 in) Overall Height: 63mm (2.48 in) Unit Weight: 862 grams (1.9 lbs) Environmental Conditions: Operating Temperature Range: 5°...

  • Page 40: Declaration Of Conformity

    EMC: EN 61326-1:2005, CLASS A ROHS: Directive 2002/95/EC Type of Equipment: Light Source, LED illumination Model Number: LLS 3 – LED Light Source Manufacturer Name: SCHOTT North America, Inc. Manufacturer Address: 122 Charlton Street, Southbridge, MA 01550-1960 USA Date: Signature: Name: Marcus Knoebel Position: Vice President &...

  • Page 41: Replacement Parts List

    User Manual - LLS 3 19.0. Replacement Parts List The following replacement parts are available from MORITEX and SCHOTT to maintain and support the LLS 3 LED Light Source. (Minimum order requirements may apply.) Part Number Description A20955 Mounting Bracket Kit (Sold separately) H09050.253...

  • Page 42: Warranty And Liabilities

    User Manual - LLS 3 Service and RMA Policy Any service required for any reason must be performed by MORITEX or SCHOTT or an authorized service representative. All service outside warranty will be performed upon the purchaser’s request according to normal service charges in effect at the time.
  • Page 43 Under no circumstances shall MORITEX or SCHOTT be obligated for consequential or other damages of any kind or description, losses or expenses in connection with or by reason of the use of, or inability to use this unit for any reason.
  • Page 44 6862 Santa Teresa Blvd., San Jose, CA 95119, U.S.A Phone +1-408-363-2100 FAX +1-408-363-9980 machine.vision@us.schott.com www.schott-moritex.com Lighting and Imaging SCHOTT AG Otto Schott Strasse 2, 55127 Mainz Germany Phone +49(0)6131/66-7719 FAX +49(0)6131/66-7850 lightingimaging@schott.com www.schott.com/lightingimaging For the latest product information, demo software, and SDK, please visit the website: http://www.schott-moritex.com/us/english/syn/products/light_sources/index.html Copyright 2013.
