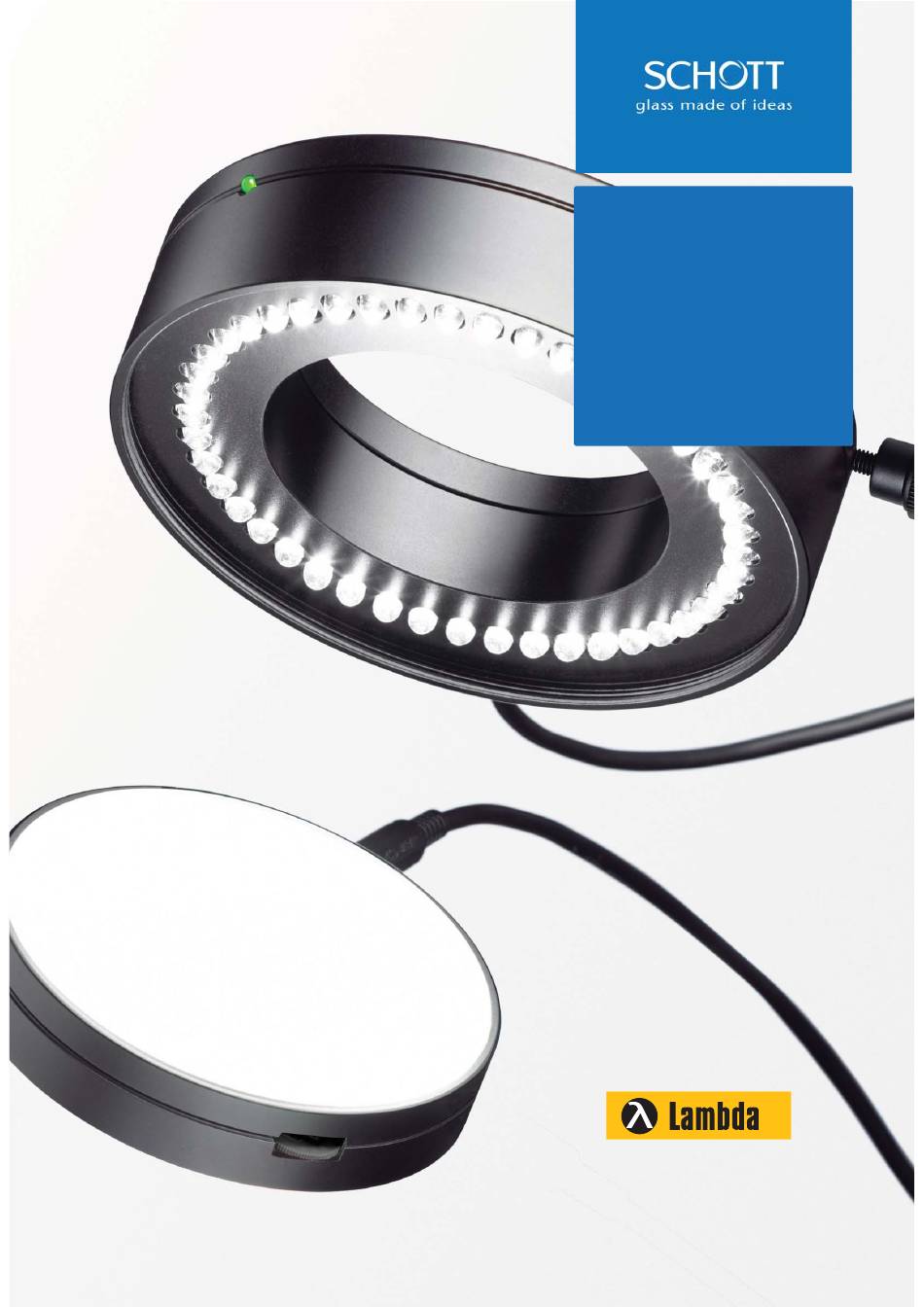

- Page 1 EasyLED User Manual Distribution in the UK & Ireland Lambda Photometrics Limited Lambda House Batford Mill Harpenden Herts AL5 5BZ United Kingdom info@lambdaphoto.co.uk W: www.lambdaphoto.co.uk +44 (0)1582 764334 +44 (0)1582 712084...
- Page 2 EasyLED - Operating Instructions Operating instructions EasyLED Series Status: March 2016 1/13...
-
Page 3: Table Of Contents
EasyLED - Operating Instructions Contents System description ............... 3 System overview ................4 Important information ..............5 Start-up procedure and operation ..........7 Maintenance ................13 Technical data ................Spare parts and accessories ............15 2/13... -
Page 4: System Description
EasyLED - Operating Instructions 1. System description The EasyLED Series is an illumination system using white LEDs, specially developed for the field of stereomicroscopy, in industrial and laboratory applications. The series comprises: Ringlight / Ringlight Plus (A) Transmitted Light Stage (B) -
Page 5: System Overview
EasyLED - Operating Instructions 2. System overview Transmitted Light Stage Ringlight / Ringlight Plus Spot Illumination 12 V DC power supply unit for Ringlight and Transmitted Light Stage 4/13... - Page 6 EasyLE ED - Oper rating Inst ructions 3. Im mporta ant info ormatio Symbo ols used: Symbol Meaning Warning of d danger (cauti on, obey doc cumentation Intende ed use: The Ea asyLED ligh hting system m is intende ed for indu ustrial and laboratory a applications...
- Page 7 To avoid unnecessary strain on the object by illuminating with visible light, reduce the brightness and duration of illumination to the absolute minimum level required! The instruments may be operated only with the power supply unit specified by SCHOTT and only within the designated mains voltage range. Otherwise, trouble-free operation and...
-
Page 8: Start-Up Procedure And Operation
EasyLED - Operating Instructions 4. Start-up procedure and operation Ringlight Insert the barrel connector (1) of the power supply (F) into the DC socket provided on the ringlight (A). The plug connection of the power supply is interchangeable for the EU, UK, US and AU. - Page 9 EasyLED - Operating Instructions Ringlight Plus Attachment to the microscope objective, the power connection, on/off switching and brightness adjustment do not differ from the basic version. See the description in the “Ringlight” section above. Additional functions: The EasyLED Ringlight Plus has an additional function for controlling segments, which makes it possible to regulate the LED ring as individual segments, each with 12 LEDs, using a “jog dial”...
- Page 10 EasyLED - Operating Instructions Manual rotation: Each see-sawing of the “jog dial” switch (6) to the right rotates the illuminated LED circle segment in 1/8 circle steps to the right. Each see-sawing of the “jog dial” switch (6) to the left rotates the illuminated LED circle segment in 1/8 circle steps to the left.
- Page 11 EasyLED - Operating Instructions Transmitted Light Stage Insert the barrel connector (1) of the power supply (F) into the DC socket provided on the Transmitted Light Stage (B). The plug connection of the power supply is interchangeable for the EU, UK, US and AU. The plug connection needs to be connected to the mains supply (100-240 V AC, 50-60 Hz).
-
Page 12: Maintenance
EasyLED - Operating Instructions 5. Maintenance The system EasyLED Series is maintenance-free. To clean the outside of the components, use a soft dry cloth or commercially available plastic cleaning cloths. The use of cleaning agents, alcohol or any other type of chemicals is not permitted. -
Page 13: Spare Parts And Accessories
EasyLED - Operating Instructions Lighting information Type description EasyLED Ringlight Max. light intensity 90,000 (at a working distance of 75 mm) Type description EasyLED Ringlight Plus Max. light intensity 140,000 (at a working distance of 65 mm) Type description EasyLED Transmitted Light Stage Max. - Page 14 End of Life. SCHOTT AG Lighting and Imaging have arranged for a return system that customers can use to dispose of their equipment. Please make use of this system to dispose of your product. Join us in helping preserve the environment in which we live.
- Page 15 Distribution in the UK & Ireland Lambda Photometrics Limited Lambda House Batford Mill Harpenden Herts AL5 5BZ United Kingdom info@lambdaphoto.co.uk W: www.lambdaphoto.co.uk +44 (0)1582 764334 +44 (0)1582 712084...
