EBS MULTICOMP - GUITAR EDITION
ADVANCED CONTROL OPTIONS (inside the box)
!
If you are not 100% sure on how to do this, please consult your nearest service
center. Excessive force may result in damage to the unit, and the warranty in that
case will be void.
w w w . e b s s w e d e n . c o m
ADJUSTING THRESHOLD LEVELS. The EBS
MultiComp has the feature of fine-tuning
the compressor thresholds for both the high
and low band compressors independently.
The ranges can be set from "off", which
bypasses the desired band, up to a relative
sensitivity of +6 dB from factory setting.
These trimmers are set to 50% (12 o'clock)
from factory.
Make sure that the MultiComp operates in
MULTIBAND mode when adjusting
the threshold levels.

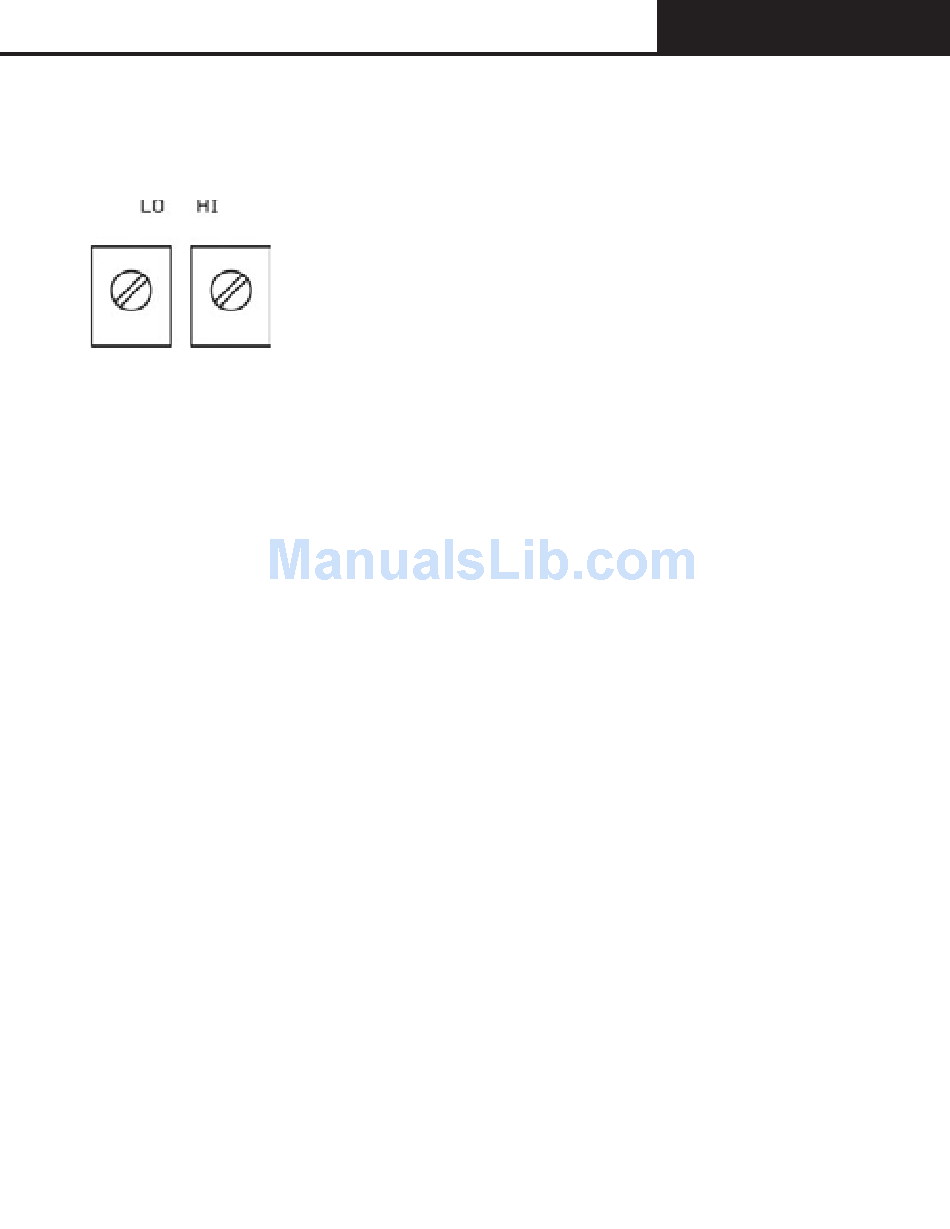

The trimmers are located on the printed
circuit board, and are easily accessible by
removing the bottom plate. When doing
any adjustments, please use a plastic
screwdriver, and turn the trimmer gently.
