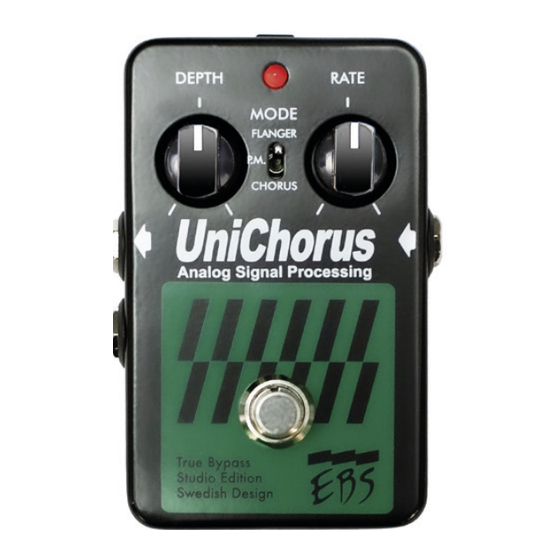

EBS UniChorus User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
USERS MANUAL
EBS UNICHORUS - STUDIO EDITION, REV2
w w w . e b s s w e d e n . c o m

Advertisement

loading

Related Manuals for EBS UniChorus

Summary of Contents for EBS UniChorus

  • Page 1 USERS MANUAL EBS UNICHORUS - STUDIO EDITION, REV2 w w w . e b s s w e d e n . c o m...
  • Page 2 THANK YOU FOR PURCHASING THE EBS UNICHORUS - STUDIO EDITION, REV2 PEDAL! With the EBS UniChorus you can choose between Chorus, Flange and Pitch Modulation effects. The pedal is built with high quality components and uses analog processing circuitry, which gives you a warm and fatter sounding chorus/flange effect.
  • Page 3 USERS MANUAL EBS UNICHORUS - STUDIO EDITION, REV2 THE CONTROLS DEPTH DEPTH sets the amount, or the modulation depth, of the chorus effect. Note that when this control is in minimum position, the Rate control has no effect. RATE RATE controls the speed of the chorus effect.

  • Page 4: Power Options

    POWER OPTIONS DC POWER ADAPTOR For environmental reasons, we recommend the use of a DC Power Supply, such as the EBS AD-9+. The EBS UniChorus Studio Edition handles 9-12 V DC, and require a 2.1 mm pin center negative type of connector.
  • Page 5 EBS UNICHORUS - STUDIO EDITION, REV2 ADVANCED CONTROL OPTIONS (inside the box) EFFECT MIX LEVEL The EBS UniChorus pedal is equipped with an effect mix trimmer, FX MIX, for further fine-tuning your sound. This function makes it possible adjust the amount of the pure chorus signal to mix in with the normal ”bypassed ”...
  • Page 6 USERS MANUAL EBS UNICHORUS - STUDIO EDITION, REV2 SAMPLE SOUND SETTINGS The following examples below show a few of the many sonic possibilities of the EBS UniChorus. STANDARD CHORUS This is the standard chorus sound setting, useful for any instrument and setup. Use fairly high setting for Depth and adjust the Rate for best personal result.

  • Page 7: Troubleshooting Guide

    USERS MANUAL EBS UNICHORUS - STUDIO EDITION, REV2 TROUBLE SHOOTING GUIDE Please consult the following checkpoints, before consulting one of the authorized EBS service centers. Checkpoint Action if answered NO 1) Does the cable(s) work - Replace cable(s). properly? 2) Are the 1/4” plugs properly - Push the 1/4”...
  • Page 8 USERS MANUAL EBS UNICHORUS - STUDIO EDITION, REV2 SPECIFICATIONS EBS UNICHORUS Studio Edition, Rev 2 Nominal Input Level - 8 dBv Input Impedance 700 kohms Bandwidth +0/-3 dB 20 - 20 kHz Delay Bandwidth +0/-3 dB 200 - 8 kHz...
