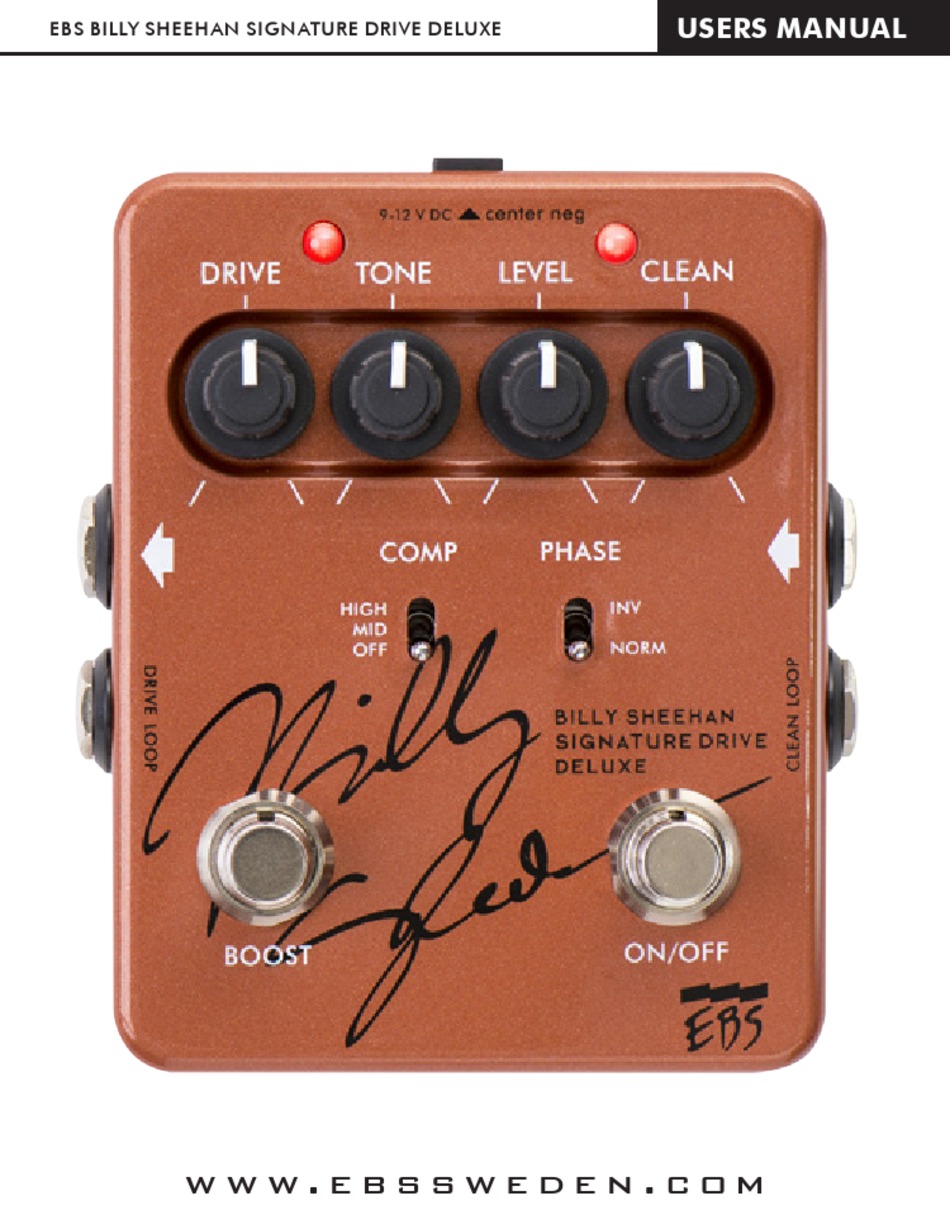

- Page 1 USERS MANUAL EBS BILLY SHEEHAN SIGNATURE DRIVE DELUXE w w w . e b s s w e d e n . c o m...
- Page 2 THANK YOU FOR PURCHASING THE EBS BILLY SHEEHAN SIGNATURE DRIVE DELUXE PEDAL Thank you for purchasing the Billy Sheehan Signature Drive Deluxe! My new Deluxe pedal has more gain! It really screams. Much more than the first version, but you can always tone it down if you like. Also, one very unique feature that I think will appeal to a lot of people is the “swappable”...
- Page 3 USERS MANUAL EBS BILLY SHEEHAN SIGNATURE DRIVE DELUXE THE CONTROLS DRIVE sets the gain for the classic overdrive engine, all from subtle to high gain tone. DRIVE TONE is used to fine tune the desired frequency scoop, ranging from lower to higher midrange.
-
Page 4: Power Options
POWER OPTIONS DC POWER ADAPTOR We recommend the use of a DC Power Supply, such as the EBS AD-9+. The pedal handles 9-12 V DC, and require a 2.1 mm pin center negative type of connector. BATTERY The pedal can run on battery (not included). Use a 9V alkaline type;... - Page 5 USERS MANUAL EBS BILLY SHEEHAN SIGNATURE DRIVE DELUXE REPLACEABLE BOOST OP-AMP CHIP TRIM POT BATTERY SOCKET COMP LEVEL TRIM POT THRESHOLD LEVEL FOR MID POSITION (COMP) TRIM POT (THR) w w w . e b s s w e d e n . c o m...
-
Page 6: Using The Loops
When using the loops, use an insert cable of a standard TRS type, such as the EBS ICY-30, where the RING is the SEND signal, and the TIP is the RETURN signal back to the pedal. -
Page 7: Block Diagram
USERS MANUAL EBS BILLY SHEEHAN SIGNATURE DRIVE DELUXE BLOCK DIAGRAM w w w . e b s s w e d e n . c o m... - Page 8 USERS MANUAL EBS BILLY SHEEHAN SIGNATURE DRIVE DELUXE TECHNICAL SPECIFICATIONS Nominal Input Level - 8 dBv Input Impedance 700 kohms Gain Range* Drive 20 - 50 dB Boost adjustable +3- 10 dB Tone Filter Range 175 - 4500 Hz 0.7-0.9...
