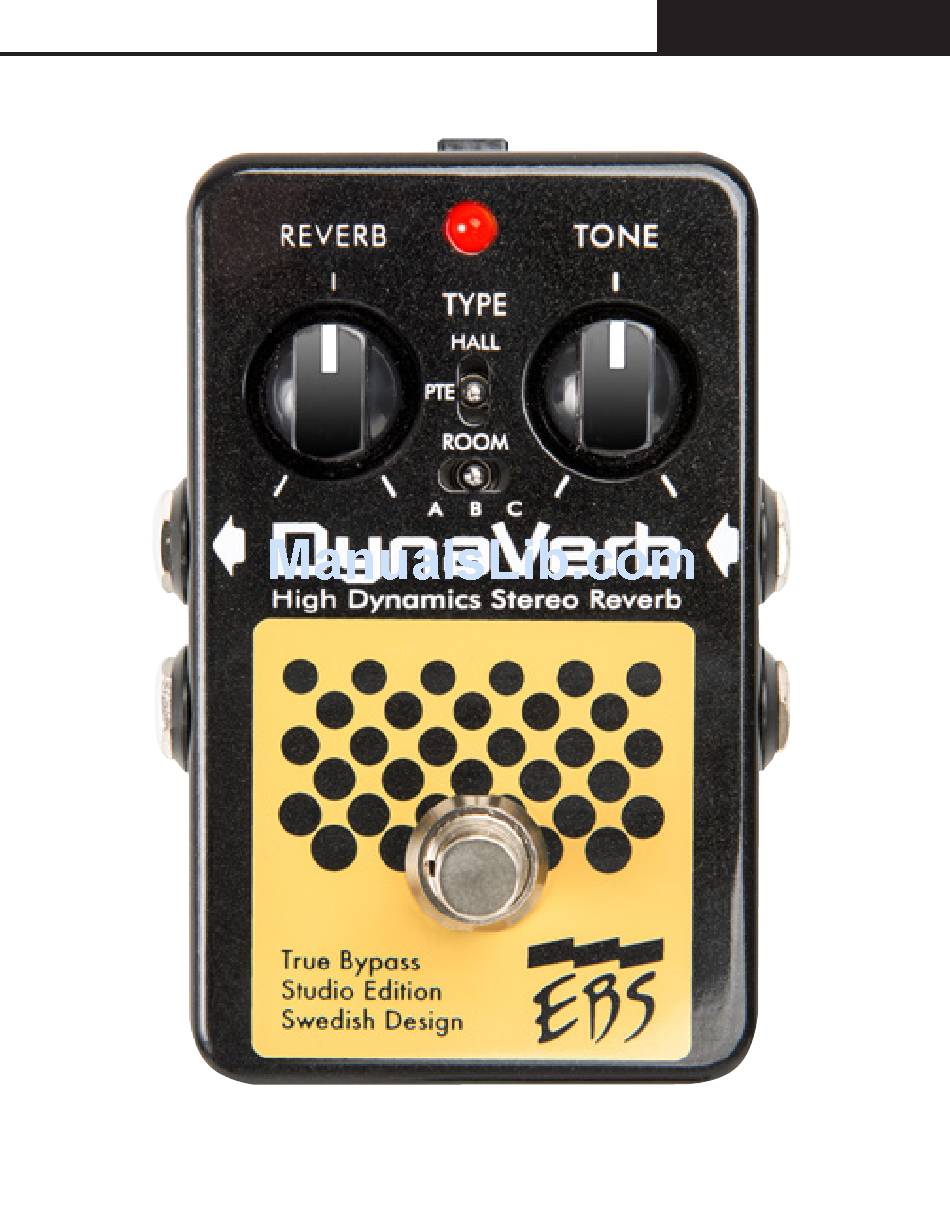

USERS MANUAL
EBS DYNAVERB - STUDIO EDITION
w w w . e b s s w e d e n . c o m

Advertisement

loading

Related Manuals for EBS DynaVerb

Summary of Contents for EBS DynaVerb

  • Page 1 USERS MANUAL EBS DYNAVERB - STUDIO EDITION w w w . e b s s w e d e n . c o m...
  • Page 2 THANK YOU FOR PURCHASING THE EBS DYNAVERB - STUDIO EDITION PEDAL! With the EBS DynaVerb you can choose between no less than eight different stereo reverb effects. The pedal is built with highest quality components and uses 24-bit digital processing circuitry for outstanding performance on stage and in the recording studio.
  • Page 3 USERS MANUAL EBS DYNAVERB - STUDIO EDITION THE CONTROLS REVERB sets the amount of the reverb REVERB effect to be mixed in with the dry signal. Note that when this control is in minimum position, the Tone control has no effect.

  • Page 4: Power Options

    POWER OPTIONS DC POWER ADAPTOR For environmental reasons, we recommend the use of a DC Power Supply, such as the EBS AD-9+. The EBS UniChorus Studio Edition handles 9-12 V DC, and require a 2.1 mm pin center negative type of connector.
  • Page 5 EBS DYNAVERB - STUDIO EDITION ADVANCED CONTROL OPTIONS (inside the box) CHANGING TO PARALLEL MODE The EBS DynaVerb can be set to parallel mode, which makes it suitable for connecting to mixing consoles and so using the unit just as if it was a rack effects unit.
  • Page 6 USERS MANUAL EBS DYNAVERB - STUDIO EDITION SAMPLE SOUND SETTINGS The following examples below show a few of the many sonic possibilities of the EBS DynaVerb. LARGE ROOM This is an example of a room with fairly short reverbation time useful for effect playing.

  • Page 7: Troubleshooting Guide

    USERS MANUAL EBS DYNAVERB - STUDIO EDITION TROUBLE SHOOTING GUIDE Please consult the following checkpoints, before consulting one of the authorized EBS service centers. Checkpoint Action if answered NO 1) Does the cable(s) work - Replace cable(s). properly? 2) Are the 1/4” plugs properly - Push the 1/4”...
  • Page 8 USERS MANUAL EBS DYNAVERB - STUDIO EDITION TECHNICAL SPECIFICATIONS EBS DYNAVERB Studio Edition Nominal Input Level - 8 dBv Input Impedance 1 Mohms stereo 500 kohms mono Dry Bandwidth +0/-3 dB 20 - 20k Hz Reverb Bandwidth +0/-3 dB 20 - 20k Hz...
