Page 1: Fast Ethernet

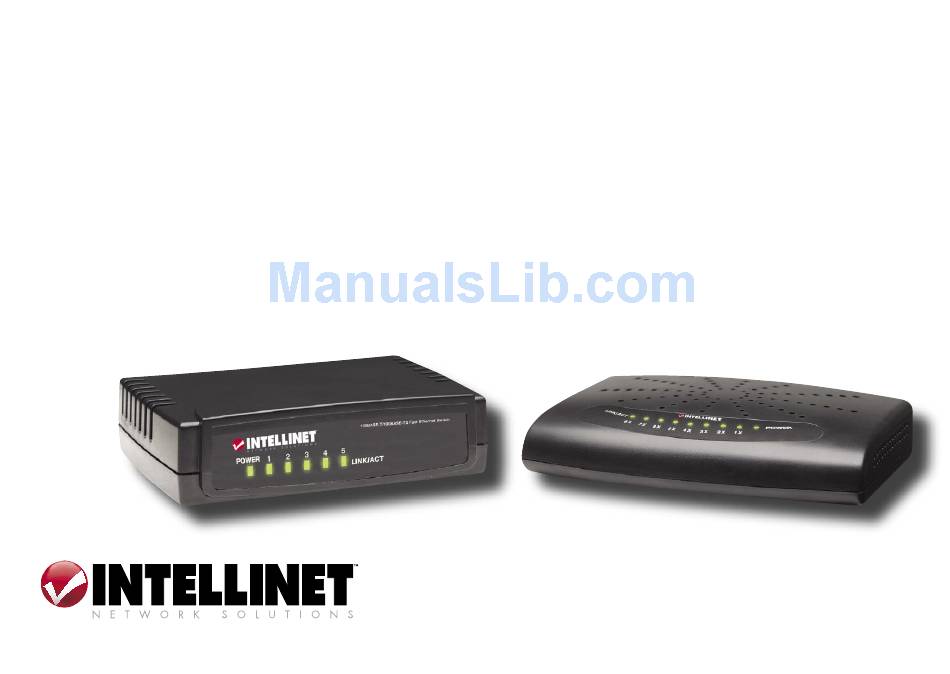

5/8-PORT FAST ETHERNET OFFICE SWITCH USER MANUAL MODEL 523646/523653 INT-523646/523653-UM-0107-03... - Page 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS Fast Ethernet Office ™ Switch, Model 523646 (5-port) or Model 523653 (8-port). Use this manual for reference when setting up and operating this switch, and enjoy the benefits of high-speed dynamic memory, which supports the packet store-and-forward architecture;...
-
Page 3: Front Panel

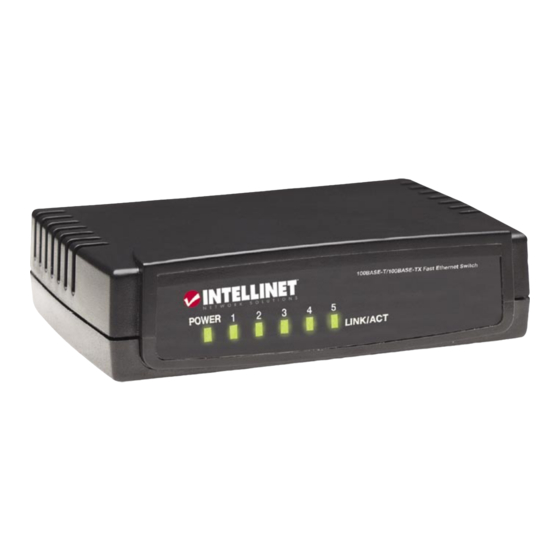

FRONT PANEL The front-panel LED indicators — POWER, LINK/ACT — allow for more convenient monitoring and troubleshooting of the switch. The table below shows each LED function. System LED Status Operation POWER Steady green Power on Check AC connection; turn on power switch LINK/ACT Steady green Valid port connection... - Page 4 INSTALLATION 1. Attach the included rubber feet to the bottom of the device to keep it from slipping. The recommended positions are marked. 2. Place the device on a level surface that can support the weight of the switch (and any other items that need to be considered).
-
Page 5: Specifications
SPECIFICATIONS Standards • IEEE 802.3 (10Base-T Ethernet) • IEEE 802.3u (100Base-TX Fast Ethernet) • IEEE 802.3x (flow control, full duplex mode) General • Media support: - 10Base-T Cat3, 4, 5 UTP/STP RJ-45 - 100Base-TX Cat5 UTP/STP RJ-45 • Ports: - 5-port version: 5 RJ-45 10/100 Mbps ports - 8-port version: 8 RJ-45 10/100 Mbps ports •... - Page 6 LEDs • POWER • LINK/ACT Power • External power adapter, 9 V AC • Power consumption: 2.5 Watts (maximum) Environmental • Plastic housing • Dimensions, 5-port: 105 (L) x 77 (W) x 30 (H) mm (4.1 x 3 x 1.2 in.) •...
- Page 7 NOTES...
- Page 8 Are you completely satisfied with this product? Please contact your INTELLINET NETWORK SOLUTIONS dealer ™ with comments or questions. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
