Summary of Contents for Intellinet 523813
-
Page 1: Fast Ethernet

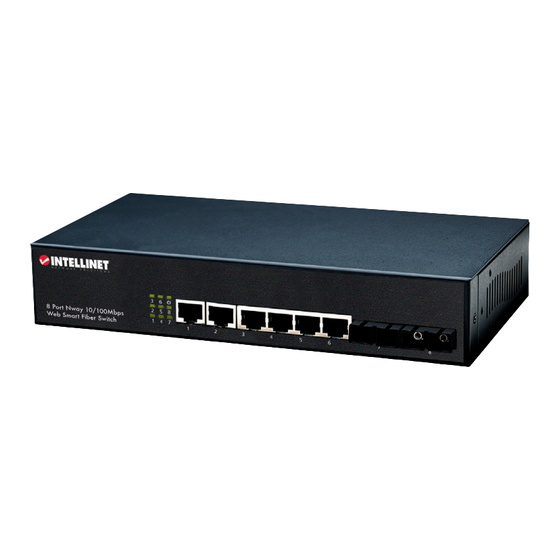

Fast EthErnEt WEb-smart sWitch usEr manual Models 523813 & 523820 INT-523813/523820-UM-0607-01... - Page 2 ™ Fast Ethernet Web-Smart Switch (6 RJ-45 10/100 + 2 Fiber SC 100Base-FX Multi-Mode Ports, Model 523813 or 6 RJ-45 10/100 + 2 Fiber SC 100Base-FX Single-Mode Ports, Model 523820). The easy-to-follow instructions in this user manual help make setup and operation quick and simple, so you’ll also soon be enjoying the...
- Page 3 FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These specifications are designed to provide reasonable protection against interference with radios and TVs in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.
- Page 4 Connecting to PCs, Servers & Other Network Devices Use straight-through twisted-pair cable (Cat5) to connect the switch to PCs, servers and other network devices. Networks can be built as shown. Connecting to Another Switch or Hub Use either straight-through twisted pair or crossover cable to connect the switch to another switch or hub.
-
Page 5: Specifications
- Six RJ-45 ports, 100Base-TX - Two Fiber SC duplex ports, 100Base-FX • Distances: - 2 km (62.5/125 or 50/125 µm Fiber cable, Model 523813) - 20 km (9/125 µm Fiber cable, Model 523820)) - 100 m (RJ-45 cable) • Wavelength: 1310 nm •... - Page 6 - port-based - tag-based - DiffServ • Port configuration options - enable/disable - 10, 100 Mbps or auto-negotiation - full duplex or half duplex - bandwidth control - MAC address port security enable/disable • Bandwidth control options: 128 kbps, 256 kbps, 512 kbps, 1,024 kbps, 2,048 kbps, 4,096 kbps, 8,192 kbps, no limit LEDs •...
- Page 7 NOTES...
- Page 8 Are you completely satisfied with this product? Please contact your INTELLINET NETWORK SOLUTIONS dealer ™ with comments or questions. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
