  • Page 1: Fast Ethernet

    Fast EthErnEt MEdia strEaM switch UsEr ManUaL MODEL 523493 INT-523493-UM-0107-04...

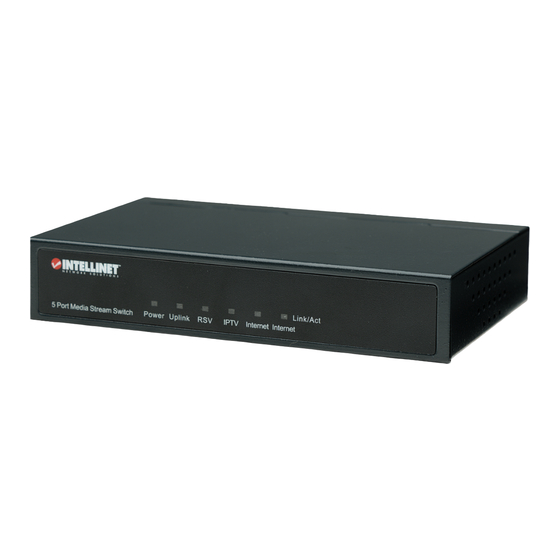

  • Page 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS Fast Ethernet Media ™ Stream Switch, Model 523493. Using IGMP (Internet Group Management Protocol) — the communications protocol used for online video and gaming — this five-port switch is able to prioritize the multimedia traffic on the network, helping to ensure the best possible performance for your online video applications.

  • Page 3: Fcc Statements

    Fcc statEMEnts FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Parts 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Front Panel

    Front panEL LED Color Status Description Power Yellow Power on Power off Link/Act Yellow 10/100 Mbps port for connection 10/100 Mbps port link fail Flashing 10/100 Mbps for data activating rEar panEL • Five RJ-45 10/100 Mbps switch ports connect to servers, workstations or other devices.

  • Page 5: Specifications

    spEciFications Standards • IEEE 802.3 (10Base-T Ethernet) • IEEE 802.3u (100Base-TX Fast Ethernet) • IEEE 802.3x (flow control, full duplex mode) • IEEE 802.1p (traffic prioritization) • IEEE 802.1q (tag-based VLAN) • IGMPv1 (Internet Group Management Protocol) • IGMPv2 (Internet Group Management Protocol) General •...
  • Page 6 • Switch architecture: store and forward • Buffer memory: 64 kBytes • MAC address table: 2048 entries • Certifications: FCC Class B, CE Mark LEDs • Power • Link/Act Power • External power adapter, 7 .5 V DC • Power consumption: 2.5 Watts (maximum) Environmental •...
  • Page 7 Package Contents • Fast Ethernet Media Stream Switch • External power adapter • User manual...
  • Page 8 INTELLINET NETWORK SOLUTIONS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
