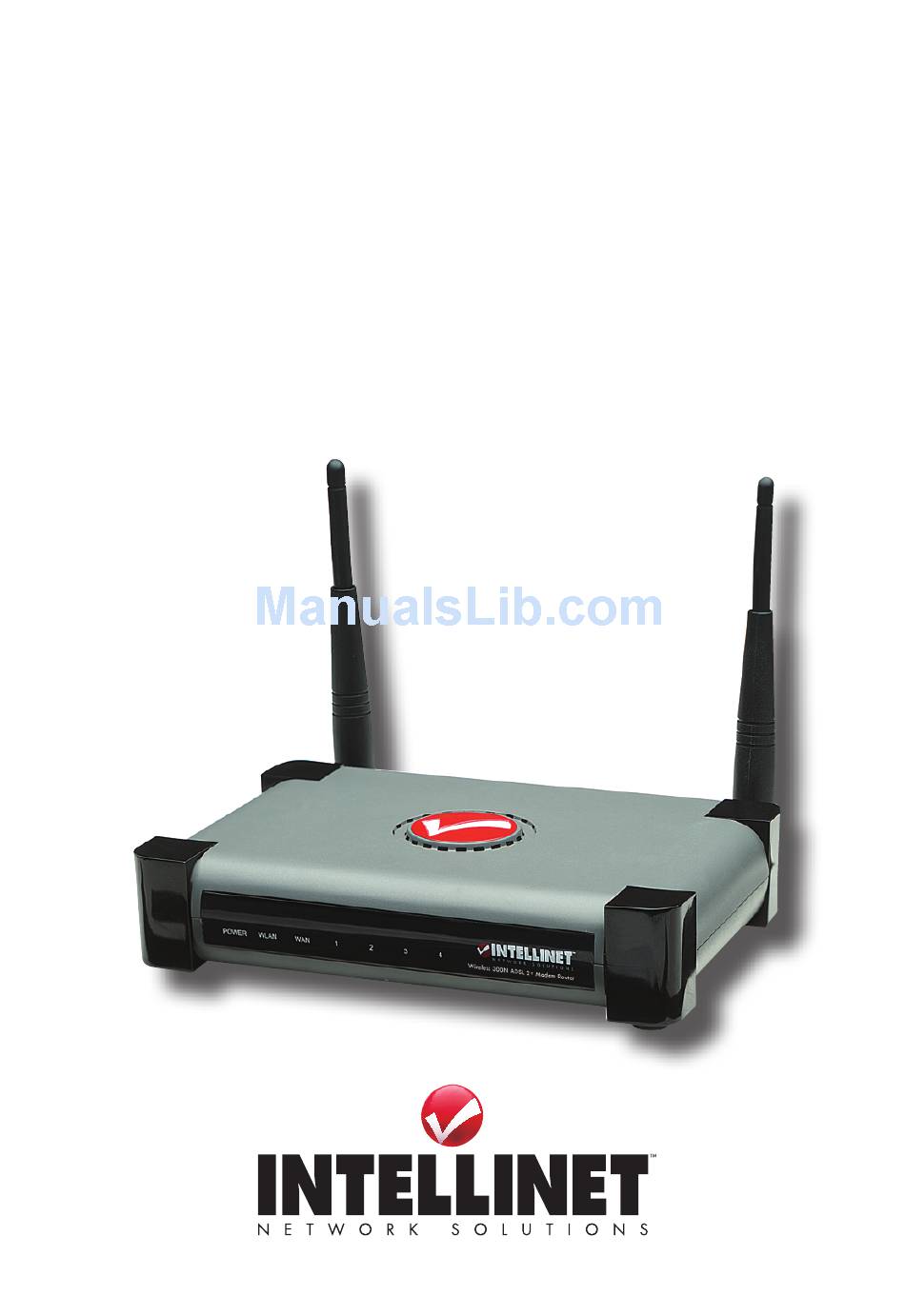

- Page 1 Wireless 300N ADsl2+ MoDeM router quick iNstAll guiDe Models: 524780 524797 INT-524780/524797-QIG-1209-01...

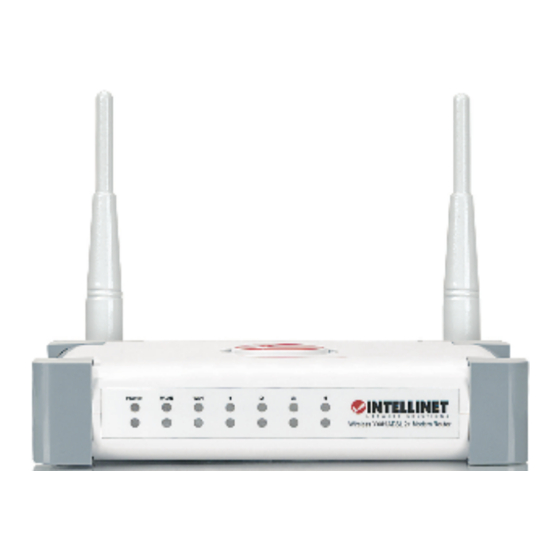

- Page 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Wireless 300N ADSL2+ Modem Router, Model 524780 (Annex A) or Model 524797 (Annex B). This quick install guide presents the basic steps required to set up and operate this device. For detailed instructions, specifications and regulatory/ compliance statements, refer to the user manual on the enclosed CD or at www.intellinet-network.com.
-
Page 3: Setup Wizard
hArDWAre setup/coNNectioNs 1. Connect the router to your ADSL cable using the supplied RJ11 cable. 2. Connect the router to your PC, hub or switch by attaching the Ethernet cable to the LAN port of the router. 3. Connect the power adapter to the power jack on the rear panel of the router. - Page 4 2. The following screen will be displayed. Click “Setup Wizard.” 3. The wizard will run and try to search for the router. If the router is found, the wizard will guide you to Step 5.
- Page 5 4. If the router can’t be found, enter the IP address and the password of the router to search again. Click “Next” to continue. 5. The wizard will automatically select the country you’re in by checking the language of the operating system in your computer and then advance to the Select ISP screen.
- Page 6 Setting the ISP Automatically If you can find the ISP from the wizard, follow the steps below to let the wizard set the ISP settings automatically. 1. Select the ISP of your ADSL service. 2. Enter the username and password your ISP has provided, if needed. Click “Next.”...
- Page 7 3. Click “Save” to save the settings and reboot the router. 4. After saving and rebooting the router, the ISP settings are done. The wizard will then help to set your computer to obtain an IP address from the router automatically. A screen with a status bar will display to indicate the progress of the procedure.
- Page 8 6. If you do successfully connect to the ISP, you’ll see the screen below. To configure additional settings, click “Advanced Settings” to go the Web management of the router, or click “Finish” to close the wizard. Setting the ISP Manually If you can’t find the ISP from the wizard, follow the steps below to set the ISP settings manually.
- Page 9 1. Select “Other.” 2. Check with your ISP as to the connection type of the ADSL line. Select the Connection Type and click “Next.” NOTE: The wizard will automatically select the country you’re in by checking the language of the operating system in your computer and then skip to the Select ISP screen.
- Page 10 3. Input the VPI, VCI and encapsulation data supplied by your ISP. If the Connection Type is “Static IP Address,” you need to input the IP address information supplied by your ISP. For details about each setting, refer to Section 5.2 in the user manual. 4.
- Page 11 5. Click “Save” to save the settings and reboot the router. Steps 6 – 8 are the same as Steps 4 – 6 in Setting the ISP Automatically above.
- Page 12 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
