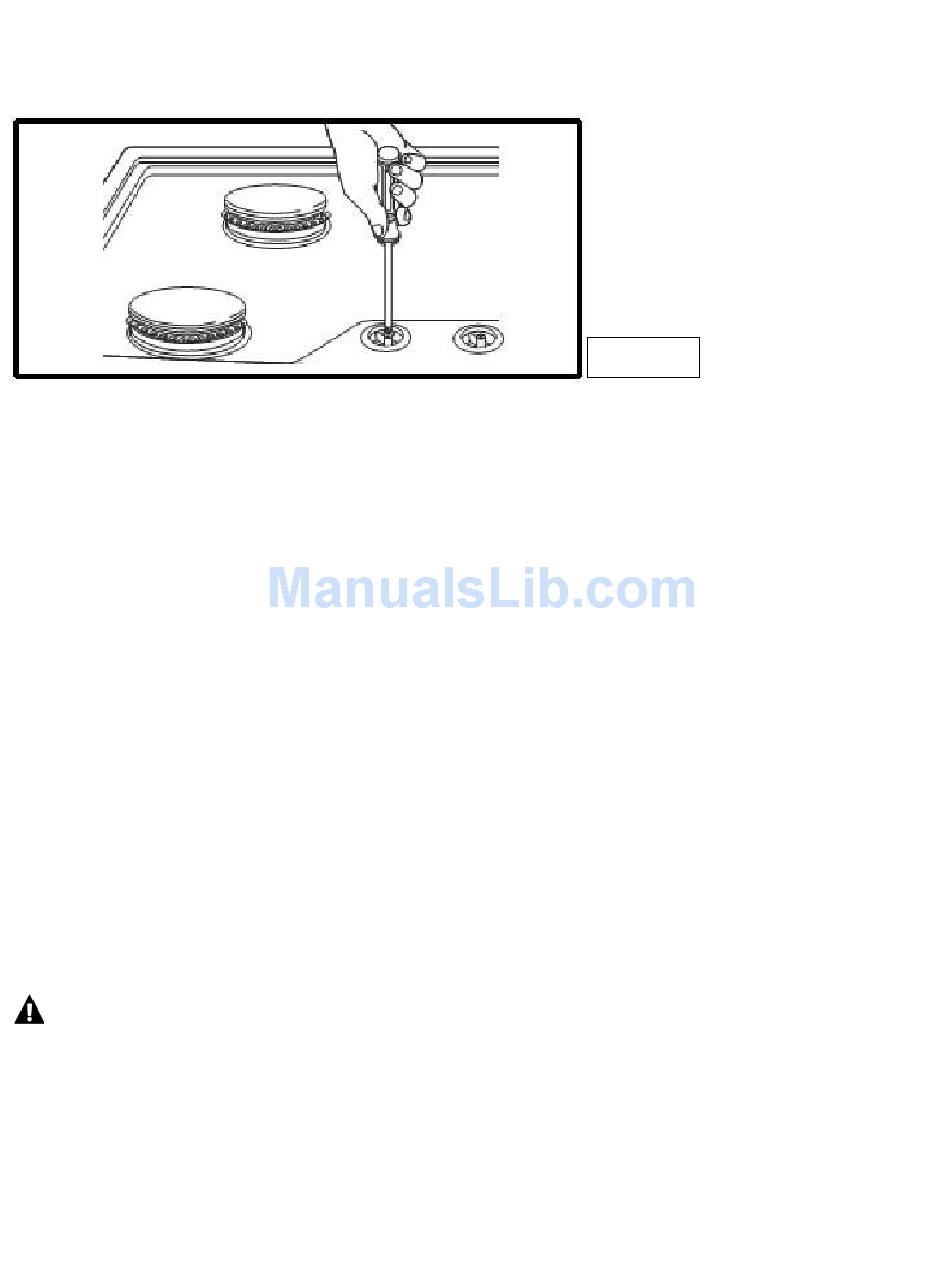

To adjust the flame, remove the knobs, insert a screwdriver through the access hole in valve
-
shaft as shown (see Figure 25). Make the adjustment by slowly turning the screw until flame
appearance is correct.
If the flames are too small or fluttered, open the valve more than the original setting.
-
If the flames are too large, close the valve more than the original setting.
-
D. TESTING FLAME STABILITY
Test 1——Turn the knob from "HI" to "LO" quickly. If the upper row of flames goes out at this setting,
increase the flame size and test again.
Test 2——With the burner on "LO", open and close the cabinet door under the cooktop. If the flame
is extinguished by the air currents created by the door movement, increase the flame height and test
again.
E. FLAME RE-CHECK
After the adjustment is made, turn all burners off. Ignite each burner individually. Observe the flame
at the "HI" position. Rotate the knob to the lowest setting and be sure that the flame size decreases
as the knob is rotated counter-clockwise.
Once the conversion has been completed and has passed testing, fill out the conversion
sticker and include your name, organization and the date conversion is made. Apply the
sticker near the cooktop gas inlet opening to alert others in the future that this appliance has
been converted. If converting back to Natural Gas, please remove the sticker so others know
that the appliance is set to use its original gas.
