Getting Started

General Description

The Meridian XL is a self-contained hand-held GPS receiver designed for
general purpose position locating and navigation. It has a removable
quadrifilar antenna located on the upper right side of the receiver, a high-
contrast backlit LCD, and keypad. Using three AA batteries, inserted from
the battery door found behind and near the base of the receiver, the
Meridian XL will operate continuously for up to 6 hours.

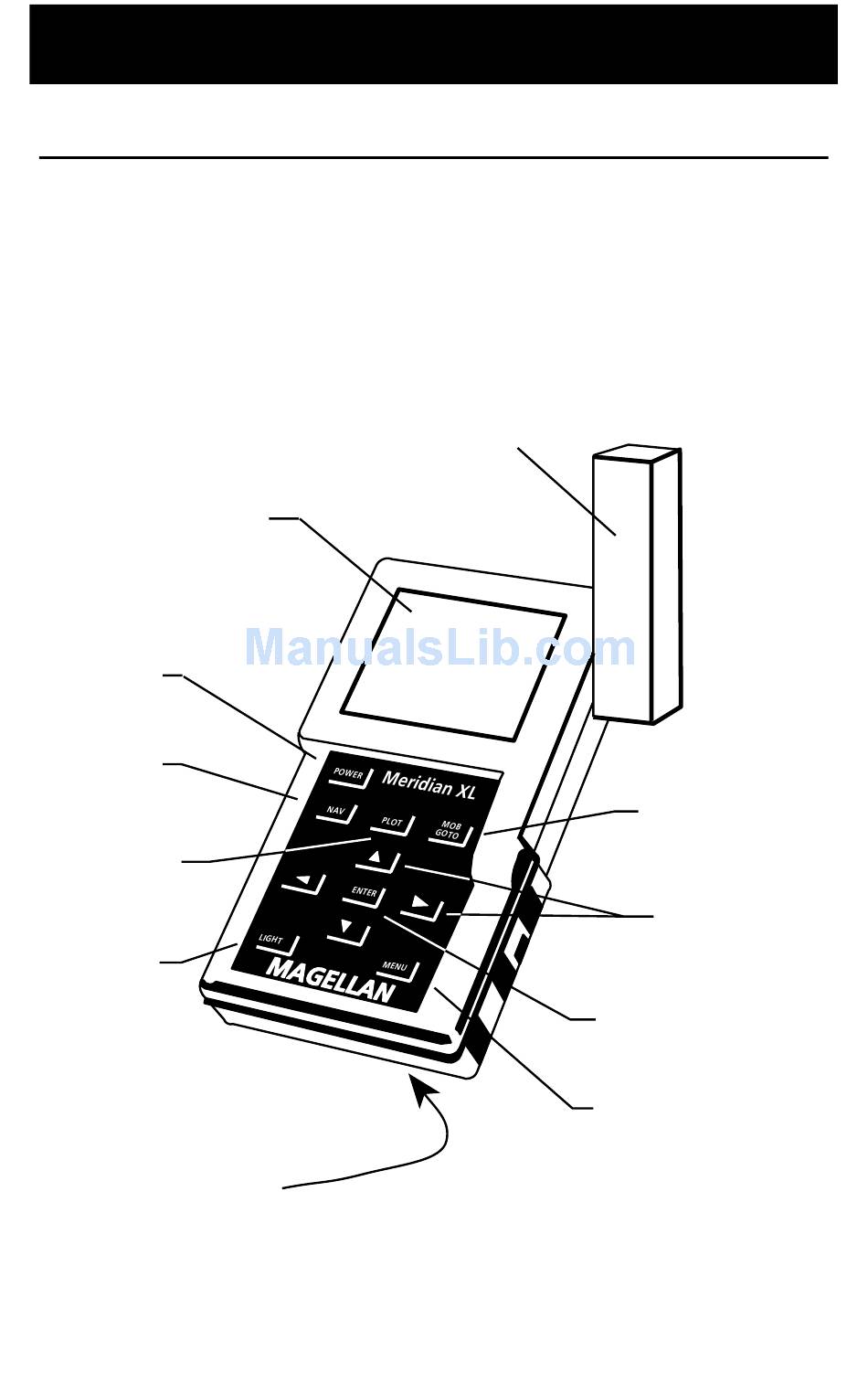

Backlit
Display
Power Key
Turns the receiver
on and off
NAV Key
Accesses the three
navigational screens
PLOT Key
Accesses the three
graphical navigation
screens
Light Key
Turns the display
backlight on and
off
Battery Door
(not shown)
Removable
Quadrifilar
Antenna
Meridian XL
MOB/GOTO Key
Accesses the MOB/GOTO
list used to activate routes
Arrow Keys
Four keys used to input
data or to display other
screens.
Enter Key
Accepts data inputs and
accesses pop-up menus
found on some screens
Menu Key
Accesses the
Function Menu
